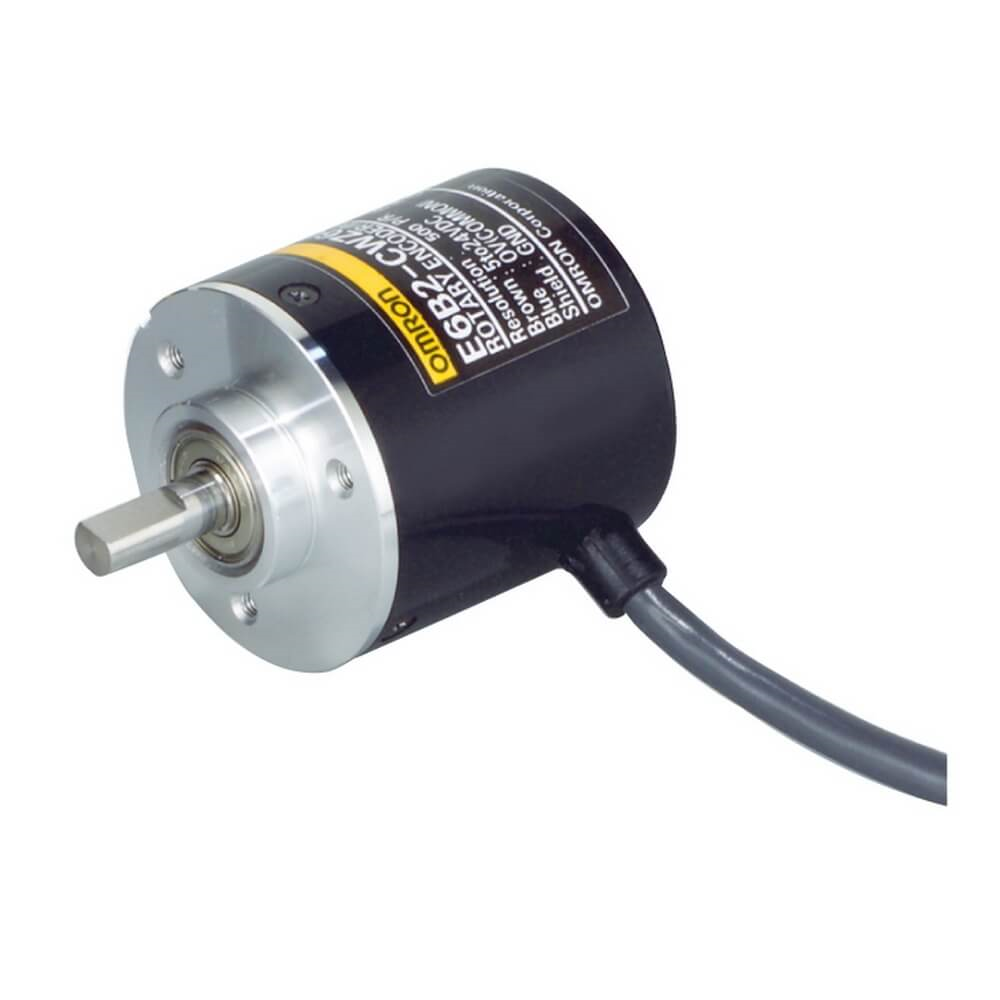

OMRON E6B2-CWZ1X 1024P/R 0.5M | Incremental Rotary Encoder | 1024 ppr, 5 V DC, Line Driver, 0.5 m Cable
The OMRON E6B2-CWZ1X is a 40 mm outer diameter incremental rotary encoder with 1024 pulses per rotation and a line-driver (RS-422A compatible) output. It runs on 5 VDC, supports up to 100 kHz and provides A, B and Z phases, with a 0.5 m pre-wired cable. It is used for precise speed and position feedback to PLC high-speed counters and motion controllers.
Key features
- 1024 pulses per rotation, 40 mm outer diameter
- Line-driver output (AM26LS31 equivalent, RS-422A compatible)
- Supply 5 VDC +/-5%, 160 mA max.
- Maximum response frequency 100 kHz
- Maximum permissible speed 6,000 r/min
- IP50, operating temperature -10 to 70 C
- Specifications
- Features
- Downloads
| Part Number | E6B2-CWZ1X 1024P/R 0.5M |
| Brand | OMRON |
| Series | E6B2-C |
| Encoder Type | Incremental rotary encoder |
| Outer Diameter | 40 mm (1.57 in) |
| Resolution | 1024 pulses/rotation |
| Supply Voltage | 5 VDC +/-5%, ripple 5% max. |
| Output | Line driver (RS-422A compatible), phases A, B, Z |
| Current Consumption | 160 mA max. |
| Max. Response Frequency | 100 kHz |
| Protection | IP50 (IEC 60529) |
| Operating Temperature | -10 to 70 C (no icing) |
| Cable | Pre-wired, 0.5 m |
| Max. Permissible Speed | 6,000 r/min |
| Starting Torque | 0.98 mNm max. |
Encoder, incremental, 1024ppr, 5 VDC, Line driver 0.5m cable
