OMRON E5GC-RX2A6M-000 | PID Temperature Controller | 48 x 24 mm, Relay Output, 100-240 V AC

Name: OMRON E5GC-RX2A6M-000 | PID Temperature Controller | 48 x 24 mm, Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5GC-RX2A6M-000
Availability: OutOfStock

Part Number : E5GC-RX2A6M-000

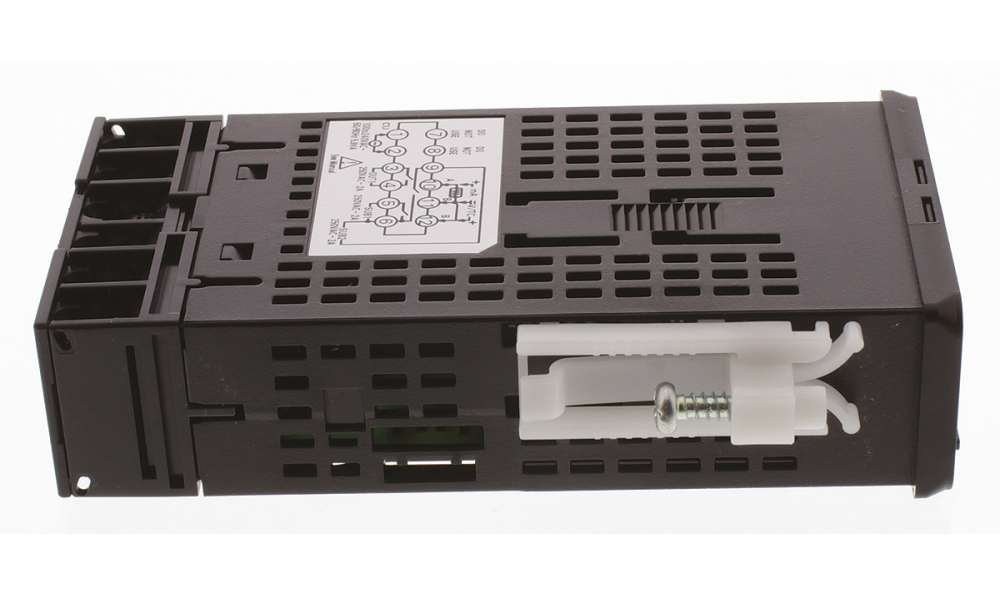

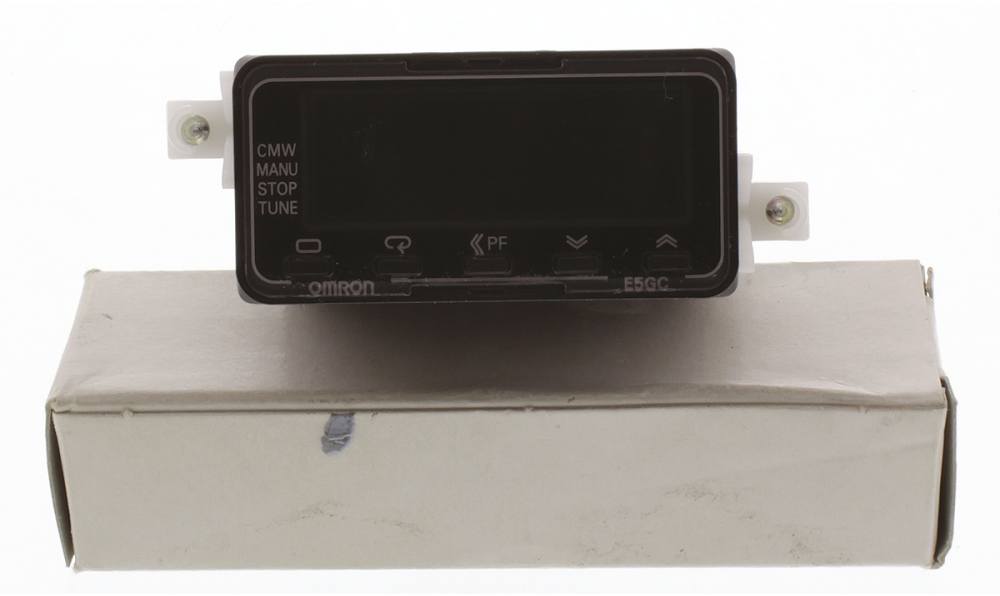

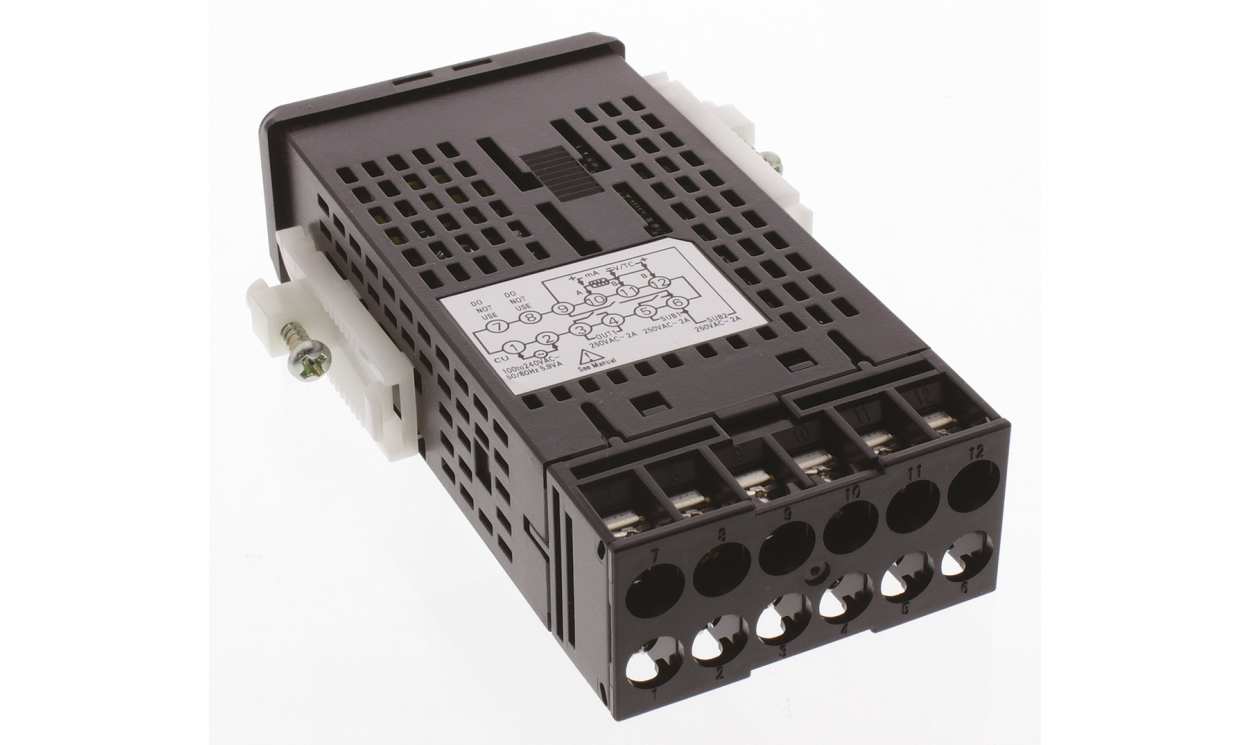

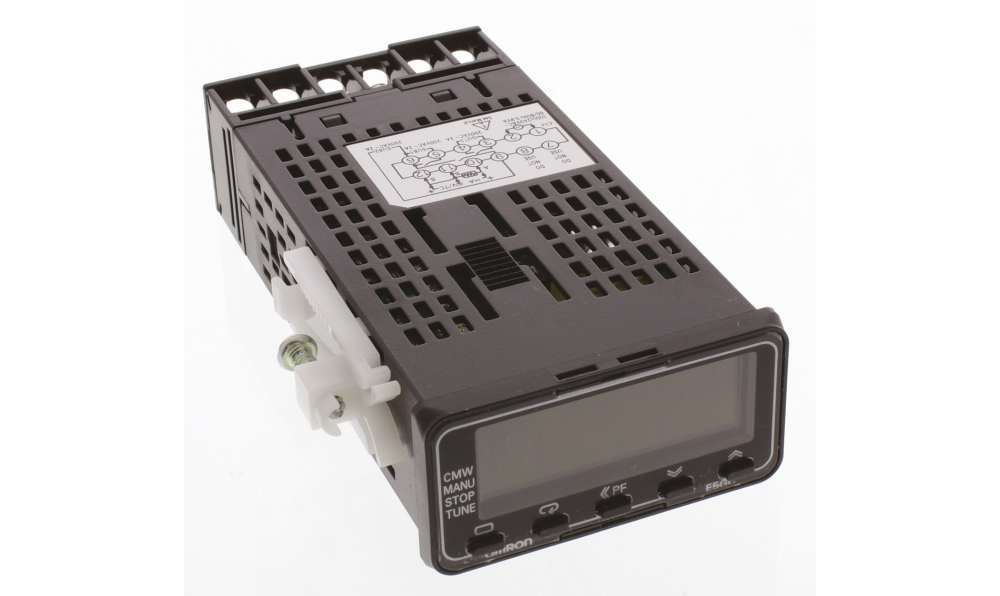

Running on 100 to 240 V AC, the OMRON E5GC-RX2A6M-000 is an E5GC PID temperature controller in a 48 x 24 mm format with one relay output, designed for panel-mount installation; its stated temperature range covers -200 to +1300 °C (Type K).

Control: ON/OFF, PID, 2-PID
Number of inputs: 1/2, universal (platinum RTD, Pt100, thermocouple, analogue)
IP rating: IP00, IP20, IP66
Display: LCD, single line, white
Panel depth: 90 mm
Operating temperature: -10 °C to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E5GC Series PID Temperature Controller, 48mm Nominal size, 100-240V AC Supply Voltage - E5GC-RX2A6M-000

This PID temperature controller is designed for reliable temperature management in industrial applications. With a compact panel mount size of 48 x 24mm, it is equipped to operate within a wide temperature range of -200 to +1300 °C, depending on the thermocouple type. The unit features an LCD single-line display for easy monitoring and a range of input options to suit various applications. Its durable construction and versatile input capabilities make it an ideal solution for diverse temperature control needs.

Features & Benefits

• Supports multiple thermocouple types for versatile applications
• Operates from 100 to 240V AC for broad compatibility
• Control modes include ON/OFF, PID, and 2-PID for flexible use
• IP66 rating available for enhanced protection in harsh environments
• Easy installation with panel mount design and screw terminal block
• LCD display enables clear visibility of current settings

Applications

• Used in temperature control for food processing equipment
• Ideal for heating systems in HVAC
• Suitable for laboratory temperature monitoring tasks
• Employed in plastics and material processing machines
• Utilised in ovens and furnaces for precise thermal management

What types of thermocouples can be connected to this controller?

It supports various thermocouples, including B, K, R, and S types, allowing flexibility for diverse monitoring needs and accuracy at different temperature ranges.

How does the relay output enhance control capabilities?

The relay output allows for direct control of heating elements or similar devices, providing simple yet effective switching based on the controller's set parameters.

What operational range can be accommodated by this device?

The temperature controller can operate within an extensive range, from -200 °C to +1300 °C, depending on the type of thermocouples being utilised for measurement.

Is there a specific way to install this controller?

The unit is designed for panel mounting, offering straightforward installation through a screw terminal block for easy connections to power and sensors.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 24mm
Number of Inputs	1/2
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +1300 (K Thermocouple) °C, +400 → +800 (B Thermocouple) °C, Maximum of +200 (R & S Thermocouple) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	LCD, Single Line
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Range	Omron E5GC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Additional Functionality	ON/OFF
Series	E5GC
Panel Depth	90mm
Display Colour	White
Termination Type	Screw terminal block

OMRON E5GC-RX2A6M-000 | PID Temperature Controller | 48 x 24 mm, Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5GC-RX2A6M-000 Brochure - Digital Temperature Controllers A700000014532659

E5GC-RX2A6M-000 Manual - Digital Temperature Controllers A700000014532682
