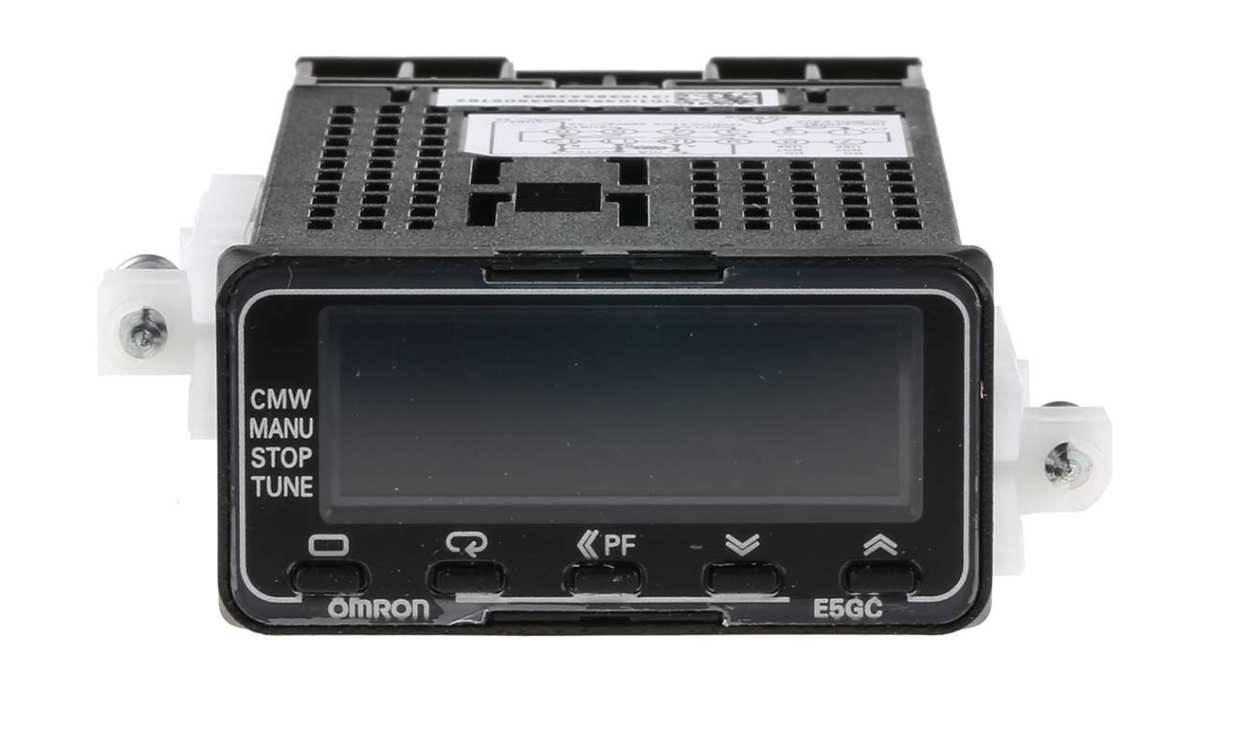

Name: Omron E5GC-QX2A6M-000, E5GC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac
Brand: OMRON
SKU: E5GC-QX2A6M-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5GC-QX2A6M-000, E5GC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Part Number : E5GC-QX2A6M-000

Availability: Sold out

Detailed Description
Specifications

Omron E5GC Series PID Temperature Controller, 24x48mm, IP00/IP20/IP66 - E5GC-QX2A6M-000

This PID temperature controller is designed for precision in industrial temperature control applications. It facilitates accurate temperature monitoring and management, ensuring process optimisation in various settings. With a variety of input types and control options, it offers versatility and dependability for temperature regulation tasks.

Features & Benefits

• Single line LCD display guarantees easy readability
• Solid state relay output enhances efficiency and lifespan
• IP20 and IP66 ratings provide protection for various installation contexts

Applications

• Used in automation systems for accurate temperature regulation
• Ideal for laboratories requiring precise temperature control
• Commonly utilised in HVAC systems for stable environmental control
• Used in food processing to maintain safe temperature limits

What types of thermocouples can be used with this controller?

This controller accommodates a broad range of thermocouples including B, K, R, and S types, providing flexibility based on application requirements.

How should the unit be installed for optimal performance?

For best results, it should be mounted on a panel with adequate ventilation to ensure it operates within the specified temperature range of -10°C to +55°C.

Is the LCD display adjustable for visibility in different lighting?

The LCD display's design is optimised for visibility, but positioning the controller away from direct glare will yield clearer read-outs.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+400 → +800 (B Thermocouple) °C, -200 → +1300 (K Thermocouple) °C, Maximum of +200 (R & S Thermocouple) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	LCD, Single Line
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Range	Omron E5GC
Series	E5GC
Additional Functionality	ON/OFF
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	89mm
Display Colour	White
Termination Type	Screw terminal block
