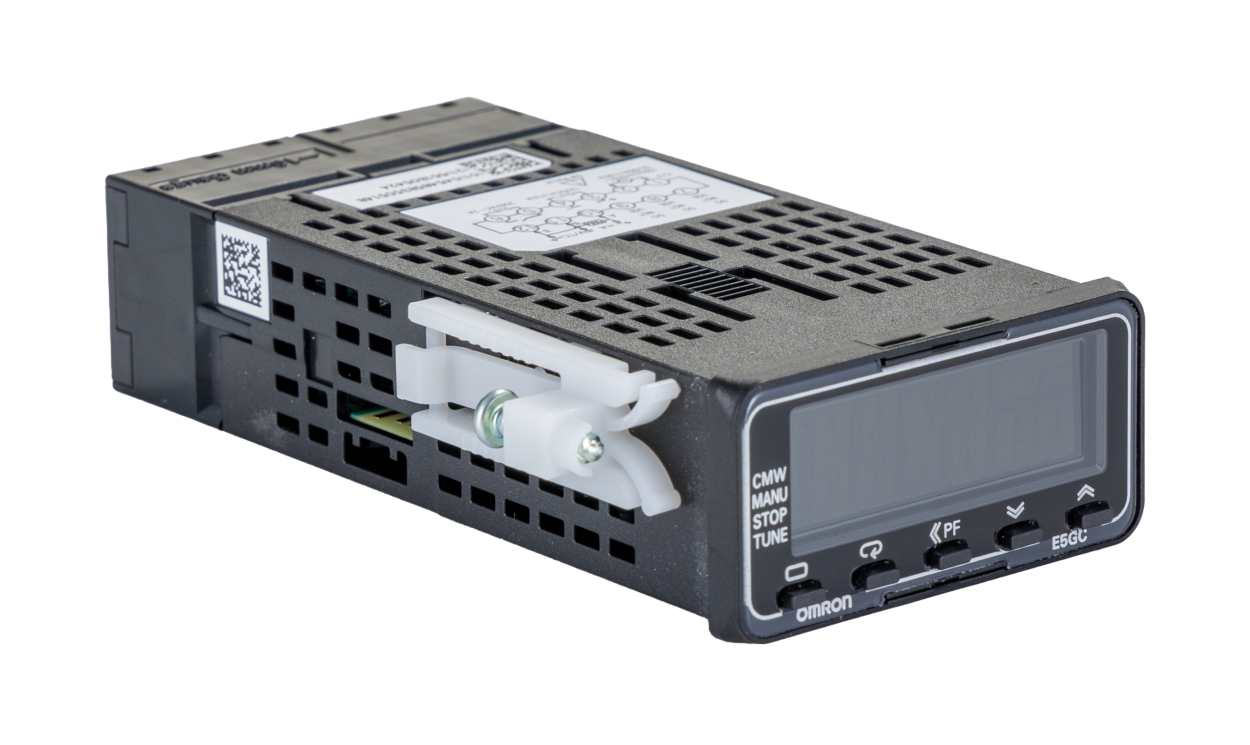

OMRON E5GC-QX1ACM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

Name: OMRON E5GC-QX1ACM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5GC-QX1ACM-000
Availability: OutOfStock

Part Number : E5GC-QX1ACM-000

With one SSR/logic output and a 100 to 240 V AC supply, the E5GC-series OMRON E5GC-QX1ACM-000 is a panel-mount PID temperature controller measuring 48 x 48 mm; the universal input supports platinum RTD, Pt100, thermocouple and analogue sensors and signals.

Control modes: ON/OFF, PID, 2-PID
Number of inputs: 1
Terminals: push-in
Mounting: panel mount
Supply voltage: 100 to 240 V AC

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E5GC Series PID Temperature Controller, 100 to 240V AC Supply Voltage, Panel Mounting - E5GC-QX1ACM-000

This PID temperature controller enhances precision in temperature regulation for various industrial applications. Its advanced control methods, including ON/OFF and PID functionality, ensure systems maintain optimal performance under different conditions. With a broad temperature range and universal input capability, it serves professionals across electrical and mechanical sectors.

Features & Benefits

• Solid state relay output provides rapid switching times
• Universally compatible input allows for flexible sensor usage
• Digital display ensures clear temperature readings
• Robust IP66 rating offers dust and water resistance
• Panel mounting simplifies installation in control panels
• Push-in termination enables swift wiring and maintenance

Applications

• Utilised in automated manufacturing processes for precise temperature control
• Employed in laboratories for temperature regulation during experiments
• Suitable for HV AC systems to maintain optimal climate conditions
• Used in thermal processing equipment for consistent heating
• Ideal for packaging machinery that requires temperature monitoring

What types of sensors can be connected to it?

It accepts various inputs, including PT100 and thermocouples, providing adaptability for different sensor types.

How to install the device?

The product features panel mounting and push-in terminals for straightforward installation, simplifying the setup process.

What is the maximum operating temperature it can handle?

It can operate within a range of -10 to +55°C, accommodating various environments.

Is it suitable for outdoor use?

With a high IP66 rating, it withstands harsh environments, making it suitable for outdoor applications.

How does the digital display benefit users?

The clear 11-segment digital display provides immediate visibility of temperature readings, aiding quick decision-making.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	1
Number of Outputs	1
Control Type	ON/OFF, PID, 2-PID Controller
Mounting Type	Panel Mount
Series	E5GC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Termination Type	Push In

OMRON E5GC-QX1ACM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5GC-QX1ACM-000 Brochure - Digital Temperature Controllers A700000011915877
