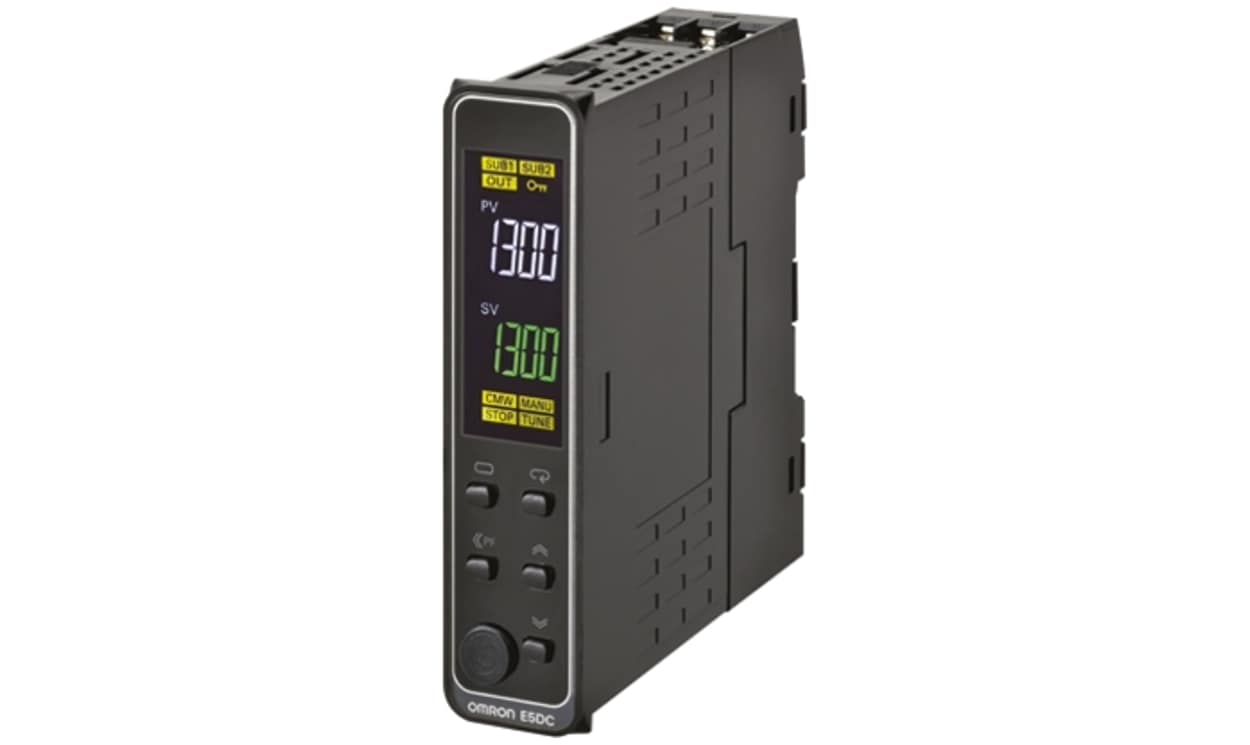

OMRON E5DC-RX2ASM-017 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC

Name: OMRON E5DC-RX2ASM-017 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5DC-RX2ASM-017
Availability: OutOfStock

Part Number : E5DC-RX2ASM-017

The OMRON E5DC-RX2ASM-017 is a 48 x 48 mm DIN-rail or panel-mount PID temperature controller from the E5DC series, fitted with two relay outputs and powered from 100 to 240 V AC; its stated temperature range covers -200 to +1300 °C (Type K), -200 to +850 °C (Pt100).

Control modes: ON/OFF, PID, 2-PID
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
Protection: IP00, IP20
Display: 11-segment digital display
Depth behind panel: 85 mm
Ambient operating range: -10 °C to +50 °C

Availability: in stock

Detailed Description
Specifications
Downloads

E5DC Digital Temperature Controllers (22.5 mm wide)

The E5DC temperature controller is setting a new global standard in terms of precision and user-friendly design. Best control performance, easy set-up and outstanding visibility of the white LCD display have been integrated into a space-saving housing with only 22.5mm wide.

Fast and precise regulation: 50ms sampling loop period time
Easy to set up, and operate intuitively via CX-Thermo without power supply
Setup Tool Port on the front panel
Useful alarm and diagnosis functions for secure operation
Width of 22.5 mm
Removable terminal block for easy mounting and replacement
DIN rail mounting

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PL II Thermocouple) °C, 0 → +1700 (R & S Thermocouples) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +500 (JPT100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +400 (Type U Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (PT100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20
Range	Omron E5DC
Mounting Type	DIN Rail, Panel Mount
Additional Functionality	ON/OFF
Series	E5DC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	85mm
Termination Type	Screw terminal block

OMRON E5DC-RX2ASM-017 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5DC-RX2ASM-017 Datasheet 0900766b8157dfda

E5DC-RX2ASM-017 Manual - Digital Temperature Controllers A700000014717869

E5DC-RX2ASM-017 Brochure - Digital Temperature Controllers A700000014719536

E5DC-RX2ASM-017 Brochure - Digital Temperature Controllers A700000014720729

E5DC-RX2ASM-017 Manual - Digital Temperature Controllers A700000014720800
