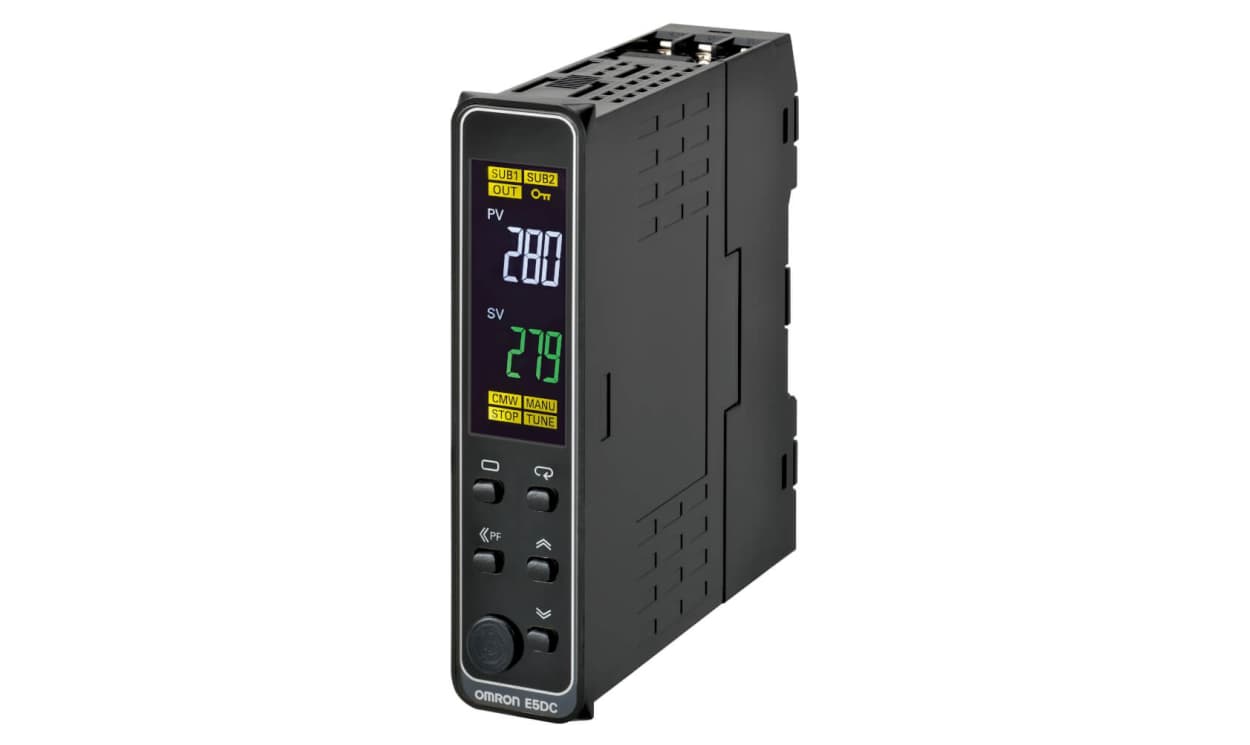

Name: Omron E5DC-QX2ASM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output SSR, Solid State Relay, Logic, 100 →
Brand: OMRON
SKU: E5DC-QX2ASM-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5DC-QX2ASM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output SSR, Solid State Relay, Logic, 100 →

Part Number : E5DC-QX2ASM-000

Availability: Sold out

Detailed Description
Specifications

Omron E5DC Series PID Temperature Controller, 100-240V AC Supply Voltage, 48 x 48mm size - E5DC-QX2ASM-000

This PID temperature controller is a versatile digital temperature controller ideal for applications that demand precision in temperature regulation. With a compact design of 48 x 48 mm and a robust solid-state relay controller output, it enhances your temperature control system functionality. It is designed for panel or DIN rail mounting, providing flexibility in installation.

Features & Benefits

• Universal temperature input for various sensors
• Dual displays show process and set temperatures clearly
• Adjustable PID control logic for optimal performance
• Auxiliary outputs support extended functionality
• ON/OFF PID controller for simplified operation

Applications

• Used in industrial temperature regulation systems
• Suitable for automation requiring precise temperature control
• Compatible with thermocouple measurements across diverse materials
• Utilised in electrical and mechanical equipment monitoring
• Ideal for laboratory instruments needing accurate thermal management

How does this product achieve rapid temperature adjustments?

It features a high-speed sampling rate of 50ms, allowing quick reaction to temperature changes, thus maintaining precise control.

What specific types of thermocouples can be used with it?

This model supports multiple thermocouple types, including K, J, T, and several others, enhancing its flexibility in various environments.

Can it be integrated into existing automation systems?

Yes, it allows for easy integration with PLCs through programless communication, facilitating seamless automation processes.

What methods are available for temperature input?

It supports both analogue voltage and current inputs, as well as resistance thermometers, providing diverse configuration options for users.

Is the controller suited for high-ambient conditions?

It operates effectively between -10 to +55 °C, making it suitable for use in demanding industrial environments.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PL II Thermocouple) °C, 0 → +1700 (R & S Thermocouples) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +500 (JPT100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +400 (Type U Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (PT100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20
Range	Omron E5DC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5DC
Additional Functionality	ON/OFF
Mounting Type	DIN Rail, Panel Mount
Termination Type	Screw terminal block
Panel Depth	85mm
