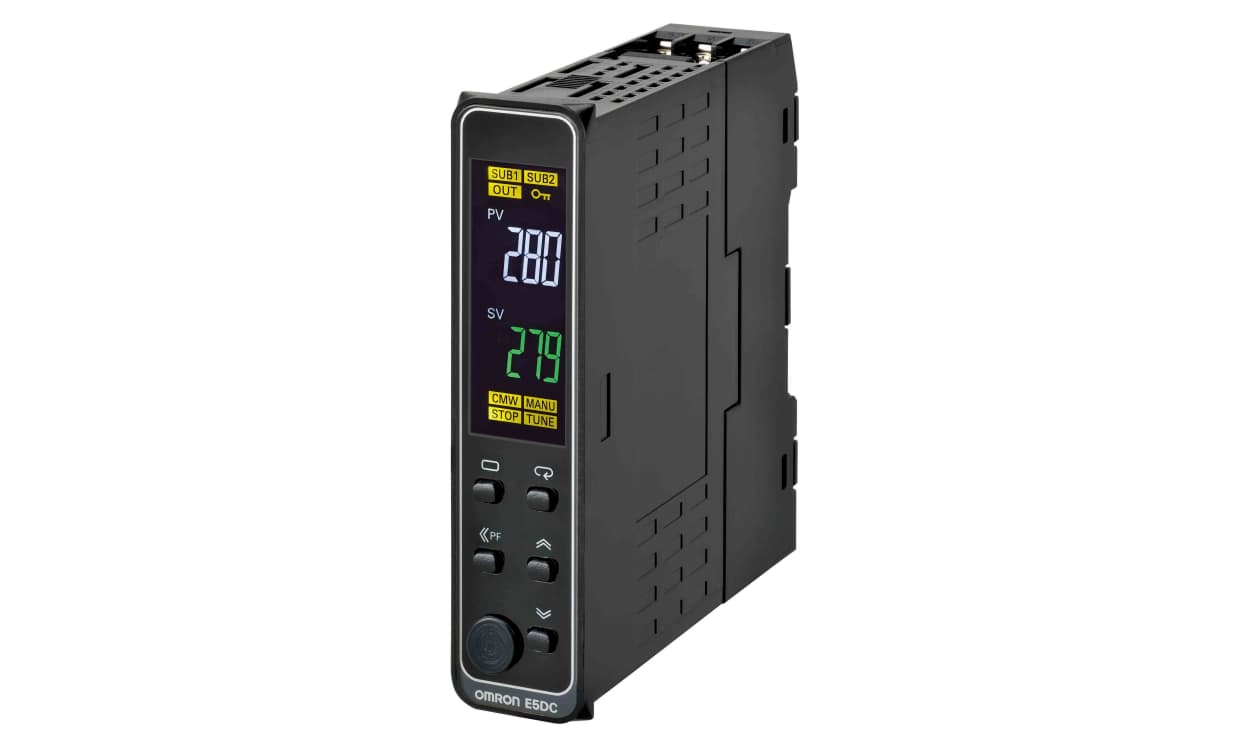

Omron E5DC-CX2DSM-015, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Linear, Analogue, 4-20 mA, 24

Part Number : E5DC-CX2DSM-015

Availability: Sold out

Detailed Description
Specifications

The Omron temperature controller series pursue greater visibility with large white PV display having a height of 10.5 mm for high visibility .The temperature controller has a compact body that is ideal for small equipment, laboratory instruments and can be easily connected to PLC with program less communication. The controller can be set up without wiring the power supply by connecting to the computer with a communications conversion cable.

Greater efficiency from designing to assembly and operation
High-speed sampling at 50 ms
Compact body and high visibility
Innovating control panel and equipment usability

Brand	Omron
Output Type	Linear, Analogue, 4-20 mA
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Inputs	1
Number of Outputs	2
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5DC
Mounting Type	DIN Rail, Panel Mount
Termination Type	Screw terminal block
