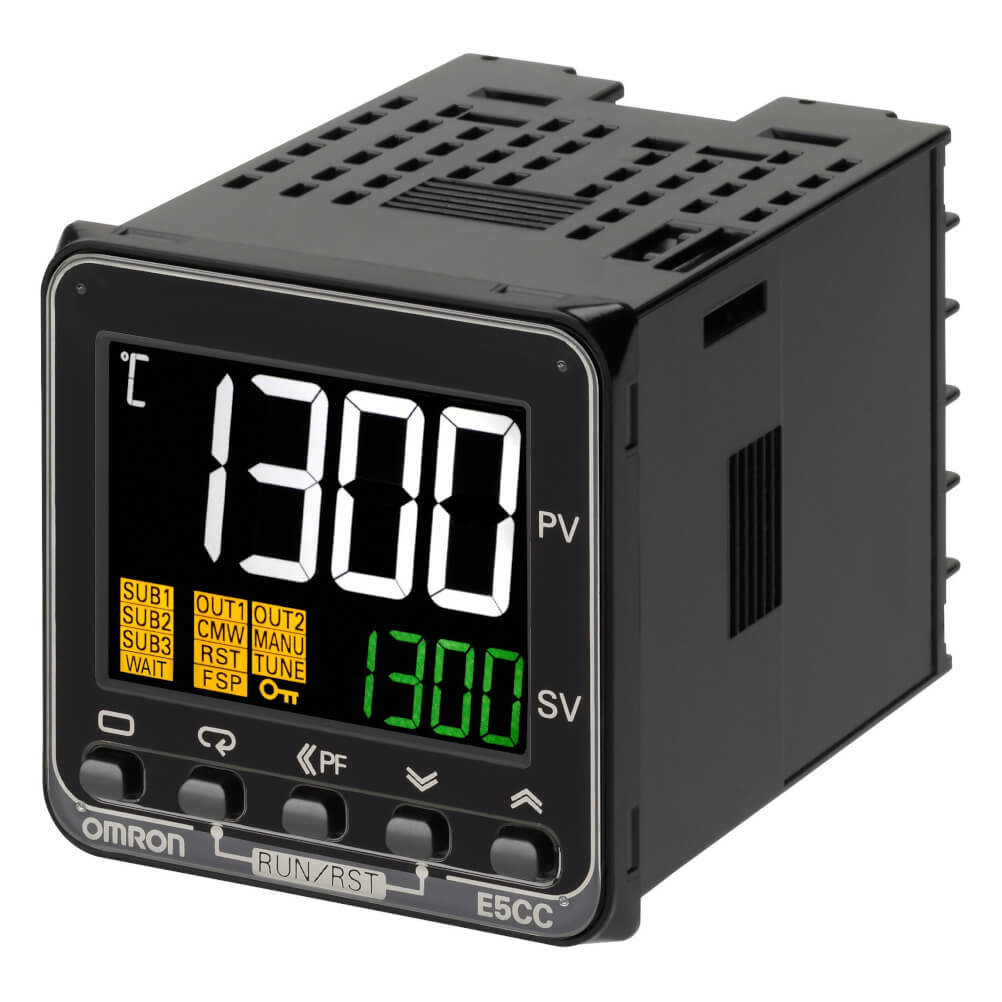

OMRON E5CC-RX3D5M-003 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC

Name: OMRON E5CC-RX3D5M-003 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC
Brand: OMRON
SKU: E5CC-RX3D5M-003
Availability: OutOfStock

Part Number : E5CC-RX3D5M-003

The OMRON E5CC-RX3D5M-003 PID Temperature Controller operates on 24 V AC/DC and provides a relay output. The E5CC-RX3D5M-003 accepts universal input (thermocouple, Pt100, analogue) and supports ON/OFF, PID and 2-PID control.

3 AUX outputs
RS-485 communication
SSR failure detection/3-phase
1 output
Display colour: white
Panel depth of 72.1 mm

Availability: in stock

Detailed Description
Specifications
Features
Downloads

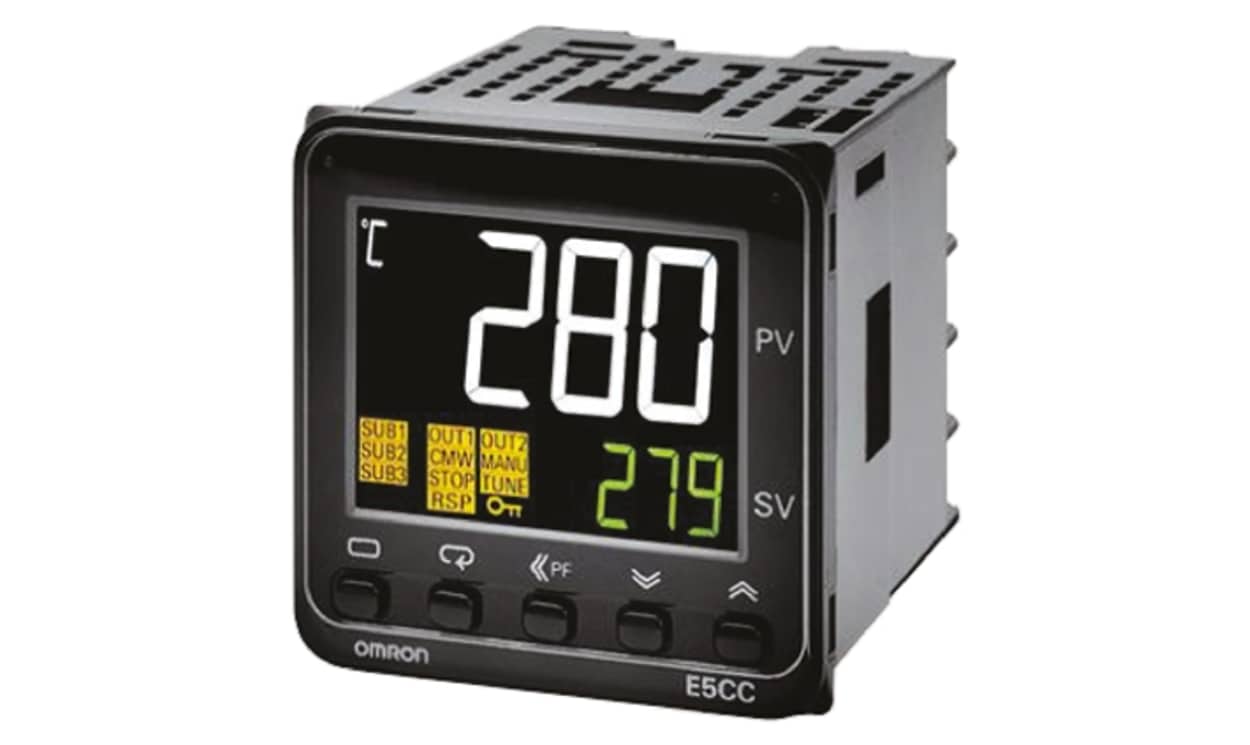

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

The E5CC-RX3D5M-003 model from Omron features a relay output as well as a universal input. The controller also features 3 auxiliary outputs for expansion to suit almost any heating or cooling system. The screw terminals of the controller provide secure and easy to use connectivity to peripherals for a range of application uses.

Omron's E5CC-RX3D5M-003 model temperature controller also requires a PSU power supply to operate.24 V ac/dc

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	96 x 96mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5CC
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Mounting Type	Panel Mount
Display Colour	White
Termination Type	Screw terminal block
Panel Depth	72.1mm

Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, RS-485, SSR failure detection/3-phase, 24 VAC/DC

OMRON E5CC-RX3D5M-003 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC
