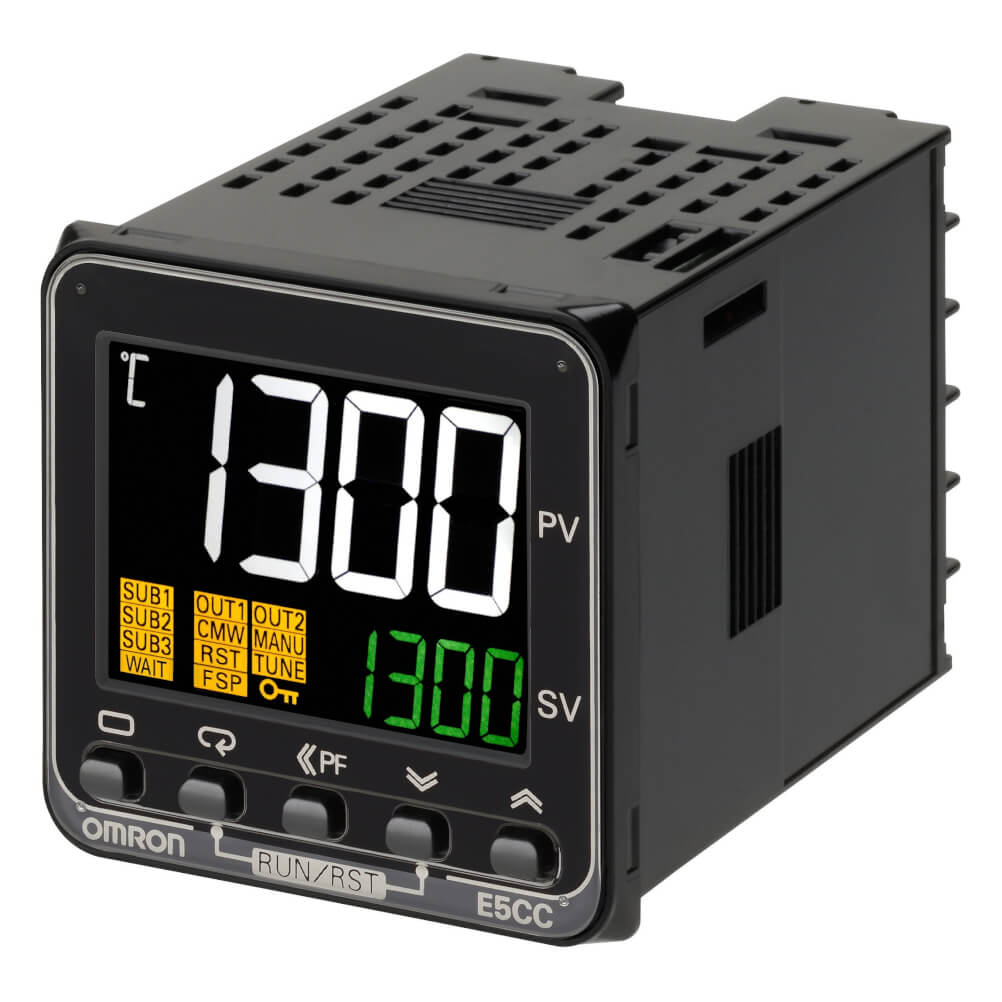

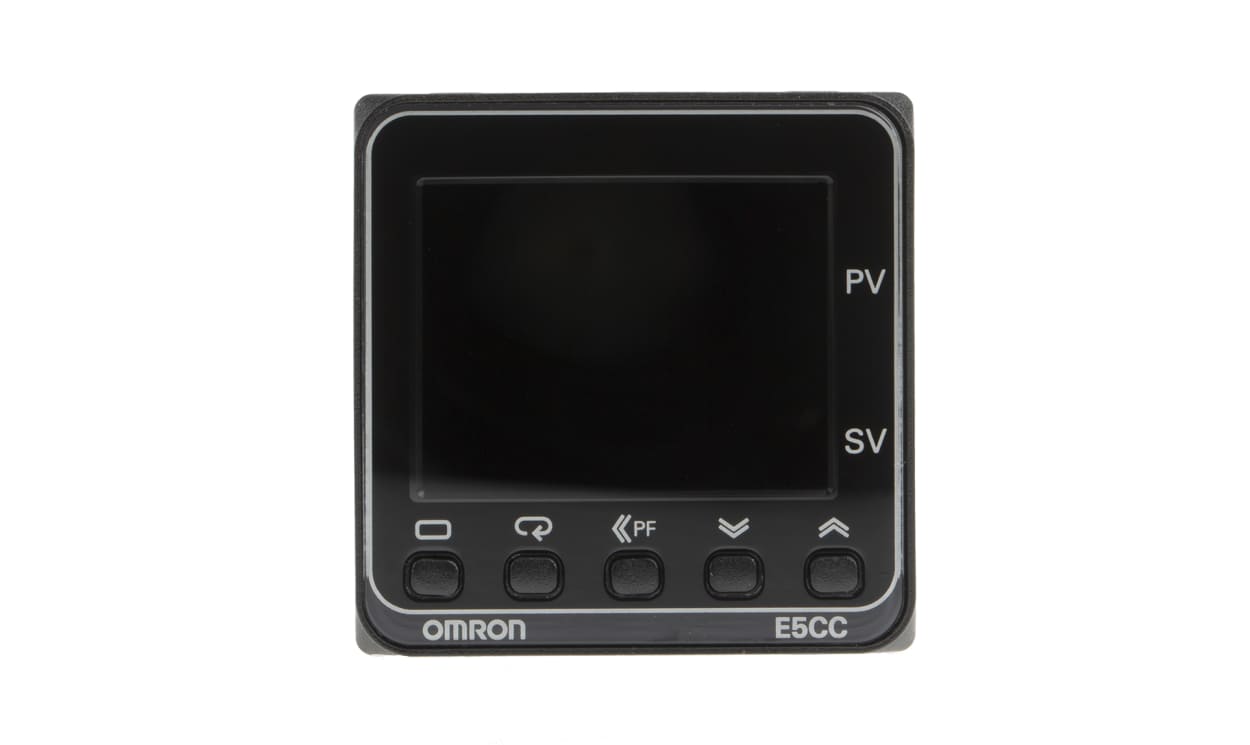

OMRON E5CC-RX3D5M-000 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC

Name: OMRON E5CC-RX3D5M-000 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC
Brand: OMRON
SKU: E5CC-RX3D5M-000
Availability: OutOfStock

Part Number : E5CC-RX3D5M-000

With a relay output and a 24 V AC/DC supply, the OMRON E5CC-RX3D5M-000 is an E5CC PID Temperature Controller. Part E5CC-RX3D5M-000 takes universal input (thermocouple, Pt100, analogue) and offers ON/OFF and PID control.

1 relay output plus 3 AUX
1 output
Temperature range: -200 to +2300 °C
Operating temperature: -10 to +55 °C
Panel depth: 60 mm
Termination: screw

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E5CC Series PID Temperature Controller, 24 V AC/DC Supply Voltage, +55 °C Maximum Operating Temperature - E5CC-RX3D5M-000

This Omron temperature controller operates on a 24V AC/DC supply voltage and features a maximum operating temperature of +55°C. It is designed for precise temperature regulation in industrial processes, offering advanced PID control algorithms for stable and accurate temperature management. With a user-friendly interface and versatile input options, this controller enhances operational efficiency and reliability in various heating and cooling applications.

Features & Benefits

• PID control algorithms ensure precise and stable temperature regulation
• Wide supply voltage range of 24V AC/DC for flexible installation and compatibility
• Intuitive interface with clear display for easy monitoring and parameter setting
• Compact design with DIN rail mounting option for space-saving installation
• High temperature range capability up to +55°C for reliable operation in challenging environments

Applications

• Essential for temperature control in industrial ovens and furnaces
• Ideal for heating and cooling systems in food processing and pharmaceutical industries
• Used in HVAC systems for precise climate control in buildings and facilities
• Applied in plastic moulding and extrusion processes for maintaining consistent temperatures
• Suitable for laboratory equipment requiring accurate temperature management

What is the advantage of using PID control in the temperature controller?

PID control algorithms ensure precise temperature regulation by continuously adjusting parameters based on feedback, minimising temperature fluctuations and improving process stability.

Can the E5CC Series temperature controller operate on both AC and DC power supplies?

Yes, it operates on a wide supply voltage range of 24V AC/DC, offering flexibility in installation and compatibility with different power sources.

How does it handle high operating temperatures?

It is designed with components and materials that allow operation at temperatures up to +55°C, ensuring reliable performance in demanding industrial environments.

Is it easy to program and set up?

Yes, it features an intuitive interface with a clear display and user-friendly menu navigation, making it straightforward to configure and monitor temperature parameters.

What are the mounting options available for it?

It can be mounted on DIN rails, providing a convenient and space-saving installation solution for control panels and cabinets in industrial settings.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	96 x 96mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID Controller
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Mounting Type	Panel Mount
Series	E5CC
Additional Functionality	ON/OFF, PID
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	60mm
Termination Type	Screw

Temperature controller, 1/16 DIN (48x48 mm), 1 Relay output, 3 AUX, 24 VAC/DC

OMRON E5CC-RX3D5M-000 | E5CC PID Temperature Controller | Relay Output, 24 V AC/DC
