OMRON E5CC-RX3A5M-001 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

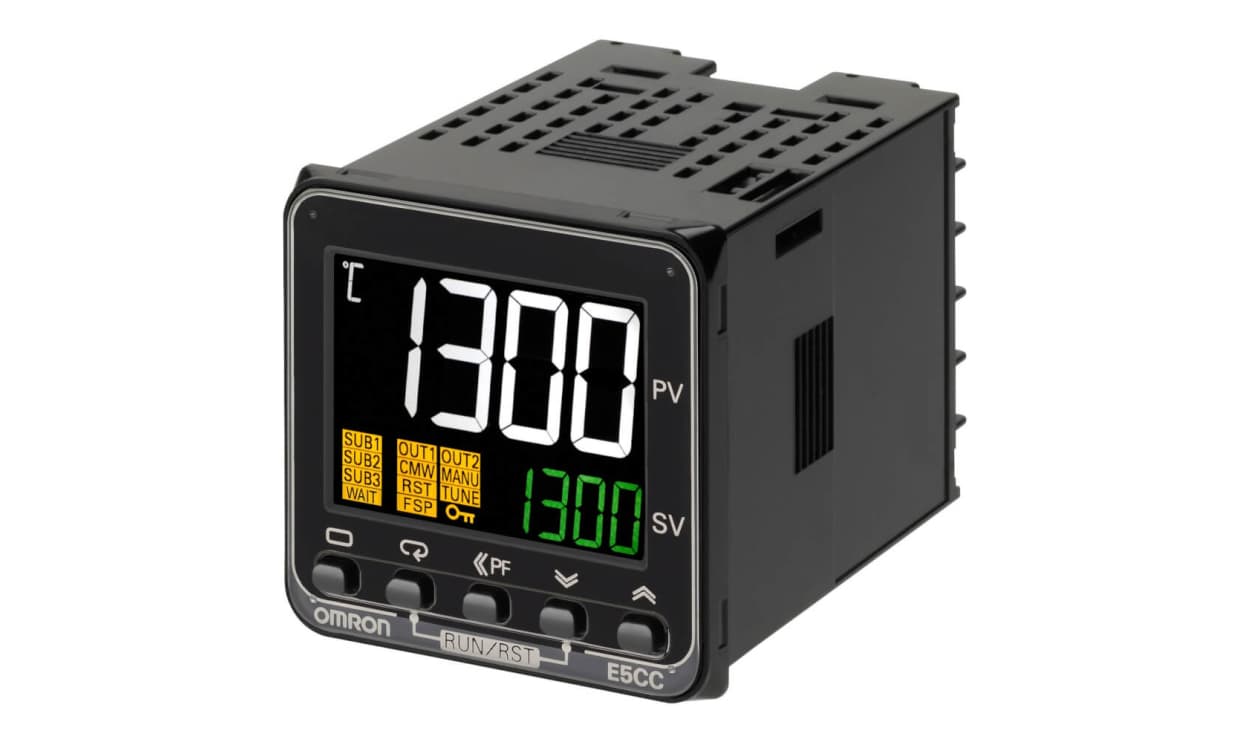

Name: OMRON E5CC-RX3A5M-001 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-RX3A5M-001
Availability: OutOfStock

Part Number : E5CC-RX3A5M-001

OMRON E5CC-RX3A5M-001 is an E5CC PID Temperature Controller with relay output, powered from 100-240 V AC. On the E5CC-RX3A5M-001, control modes are ON/OFF, PID and 2-PID control, with universal input (thermocouple, Pt100, analogue).

3 outputs
Ambient operating range: -10 to +55 °C
Protection (as listed): IP00, IP20, IP66
Listed display colour: white
Depth behind panel: 72.1 mm
Connections: screw terminal block

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E5CC Series PID Temperature Controller, 48x48mm, IP66/IP20/IP00 - E5CC-RX3A5M-001

This PID temperature controller is designed for accurate temperature regulation in various settings. Its ON/OFF, PID, and dual PID control modes offer versatility for automation and industrial applications. The controller accommodates a wide temperature range, ensuring consistent performance across different environments.

Features & Benefits

• Robust IP66 and IP20 ratings provide protection against dust and moisture
• Operates within -10°C and +55°C for diverse application areas
• Multiple outputs enhance functionality in complex systems

Applications

• Suitable for precise control in HVAC systems
• Utilised with PT100 sensors for accurate temperature monitoring
• Useful in food processing and pharmaceutical production
• Appropriate for temperature control in laboratory settings

What power supply does this device require?

It operates on a supply voltage of 100 to 240 V AC, ensuring compatibility with most electrical systems.

How can I mount this temperature controller?

The controller is designed for panel mount installation, simplifying integration into existing systems.

What is the maximum operating temperature it can handle?

The device can function at temperatures up to +55°C, maintaining performance in elevated temperature settings.

Is it suitable for outdoor applications?

The IP66 rating offers strong protection against water and dust, making it appropriate for many outdoor environments where moisture may be present.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Series	E5CC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Termination Type	Screw terminal block
Panel Depth	72.1mm
Display Colour	White

OMRON E5CC-RX3A5M-001 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5CC-RX3A5M-001 Manual - Digital Temperature Controllers A700000012779166

E5CC-RX3A5M-001 Brochure - Digital Temperature Controllers A700000012779242

E5CC-RX3A5M-001 Guide - E5CC E5EC Series A700000012779382

E5CC-RX3A5M-001 Instruction Sheet - E5CC-RX3A5M-001 A700000012781106
