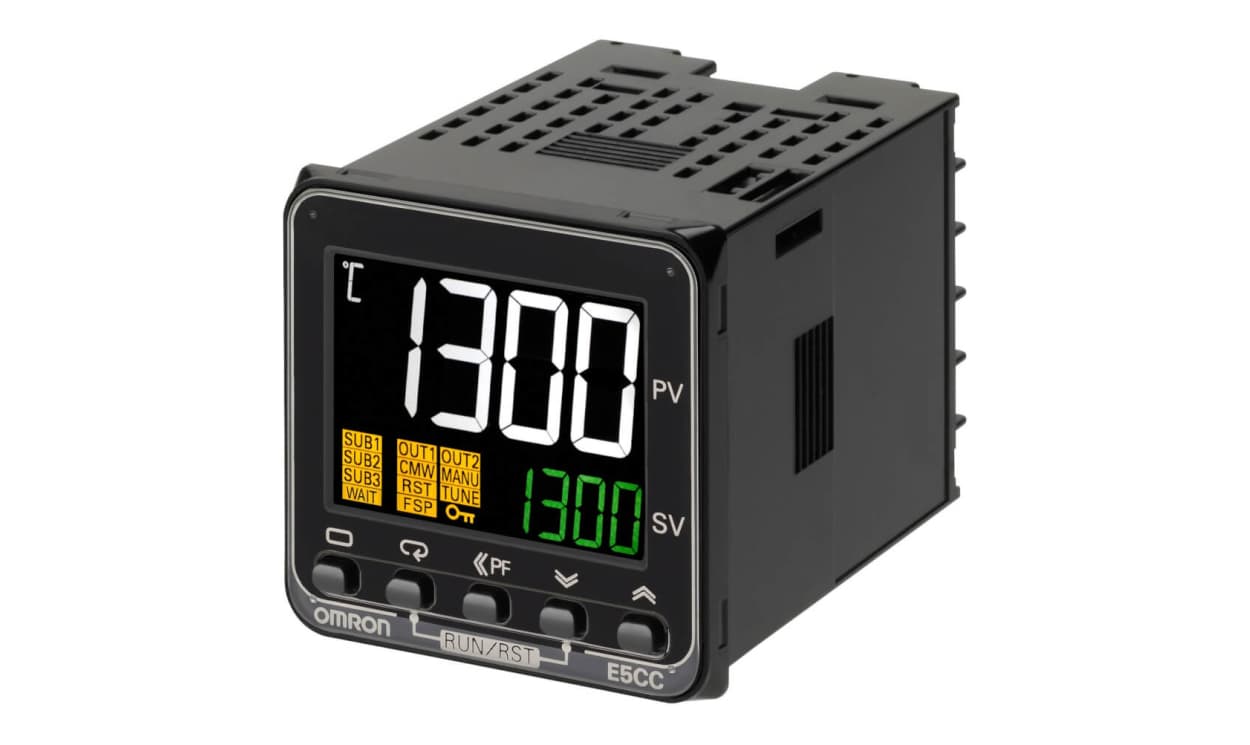

Omron E5CC-QX3A5M-001, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Part Number : E5CC-QX3A5M-001

Availability: Sold out

Detailed Description
Specifications

Omron E5CC Series PID Temperature Controller, Solid State Relay/Logic Output, 100 to 240V AC Supply Voltage - E5CC-QX3A5M-001

The PID temperature controller is tailored for accurate temperature control in industrial applications. Its versatile capabilities and solid-state relay output make it a vital instrument for experts in automation, electronics, and mechanical sectors. Operating within a supply voltage range of 100 to 240 V AC, this device guarantees steady performance with various temperature measurement approaches.

Features & Benefits

• Compatible with multiple input types including thermocouples and PT100 sensors
• Clearly displays temperature readings on an 11-segment digital display
• Compact panel mount design suitable for installations with limited space
• Features a screw terminal block for straightforward wiring and installation
• Rated IP66, offering protection against dust and moisture ingress

Applications

• Applied in HVAC systems for temperature management
• Employed in laboratories for precise control of experiments
• Utilised in food processing systems to monitor and uphold temperature
• Integrated into plastic moulding equipment for quality assurance

How can I connect various temperature sensors to optimise performance?

Leveraging universal input options allows compatibility with diverse sensors, ensuring a flexible setup.

What are the required conditions for installation in a humid environment?

With its IP66 rating, the device is sufficiently protected against moisture

ensure proper sealing during setup.

Is there a recommended procedure for calibrating after installation?

Regular calibration can be conducted by adhering to the manufacturer's guidelines, ensuring precise temperature readings.

Can this be integrated with existing automation systems?

Yes, it is compatible with various automation platforms, facilitating seamless integration for enhanced control.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital
IP Rating	IP00, IP20, IP66
Series	E5CC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Additional Functionality	ON/OFF, PID Controller
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Display Colour	White
Panel Depth	72.1mm
