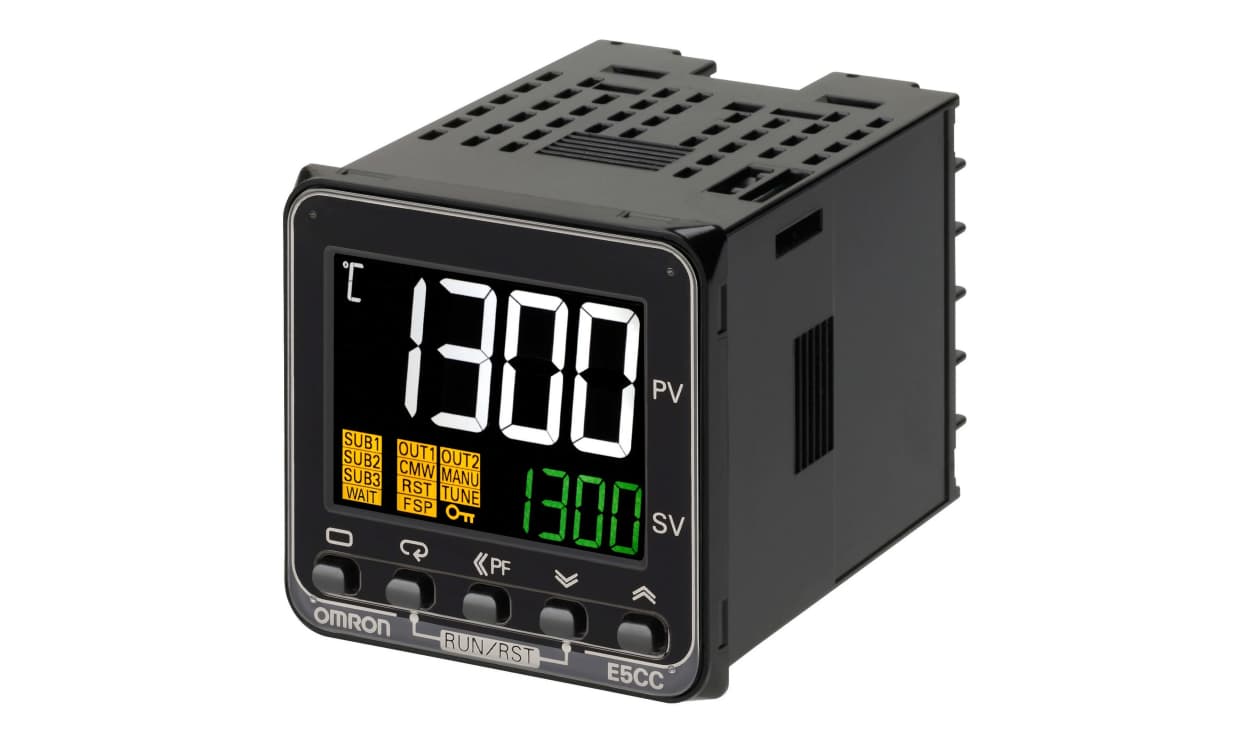

Omron E5CC-QX2ASM-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm 2/4 Input, 3 Output SSR, Solid State Relay, Logic, 100 → - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON E5CC-QX2ASM-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

Name: OMRON E5CC-QX2ASM-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-QX2ASM-000
Availability: OutOfStock

Part Number : E5CC-QX2ASM-000

With an SSR (logic) output and a 100-240 V AC supply, the OMRON E5CC-QX2ASM-000 is an E5CC PID Temperature Controller in a 48 x 48 mm format. Part E5CC-QX2ASM-000 takes universal input (thermocouple, Pt100, analogue) and offers ON/OFF, PID and 2-PID control.

2/4 inputs / 3 outputs
Listed IP ratings: IP00, IP20, IP66
Display colour: white
Panel depth of 60 mm
Wiring: screw terminal block
Range: -200 to +2300 °C

Availability: in stock

Detailed Description
Specifications
Downloads

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron E5CC Series PID Temperature Controller, 48 x 48mm size, 100 to 240V AC Voltage - E5CC-QX2ASM-000

This PID temperature controller is designed for precise temperature regulation in various industrial applications. Compactly built with dimensions of 48 x 48 x 60 mm, it utilises advanced technology for effective control. The device supports multiple input types, including thermocouples and platinum resistance thermometers, providing versatile functionality suited for diverse temperature control systems.

Features & Benefits

• Supports dual displays for real-time process and set values
• Reduces energy consumption with fast regulation capabilities
• Compatible with universal inputs for maximum versatility
• Offers auxiliary outputs for enhanced functionality
• Incorporates SSR output for efficient temperature control
• Features panel-mount design for straightforward installation

Applications

• Used with heating and cooling processes in industrial ovens
• Applied in chemical manufacturing for accurate temperature monitoring
• Utilised in plastics processing for optimal thermal management
• Ideal for temperature-sensitive environments in laboratories

How does the dual display help improve monitoring?

The dual display allows simultaneous viewing of the process value and set point, facilitating easier monitoring and adjustments for optimal control.

Can it handle multiple inputs, and how does that affect flexibility?

Yes, it can manage various input types, which enables integration with different sensors, making it suitable for diverse applications across multiple industries.

What are the advantages of having auxiliary outputs?

Auxiliary outputs offer the capability to manage additional processes or alarms, enhancing the overall control of the system while providing more data for analysis.

How quickly does the device respond to temperature changes?

The controller features a 50 ms control period, allowing for rapid response to temperature fluctuations, ensuring consistent regulation.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2/4
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
IP Rating	IP00, IP20, IP66
Series	E5CC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Panel Depth	60mm
Display Colour	White

OMRON E5CC-QX2ASM-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5CC-QX2ASM-000 Brochure - Digital Temperature Controllers A700000014532659

E5CC-QX2ASM-000 Manual - Digital Temperature Controllers A700000014532682

E5CC-QX2ASM-000 Instruction Sheet - E5CC Series A700000014533371
