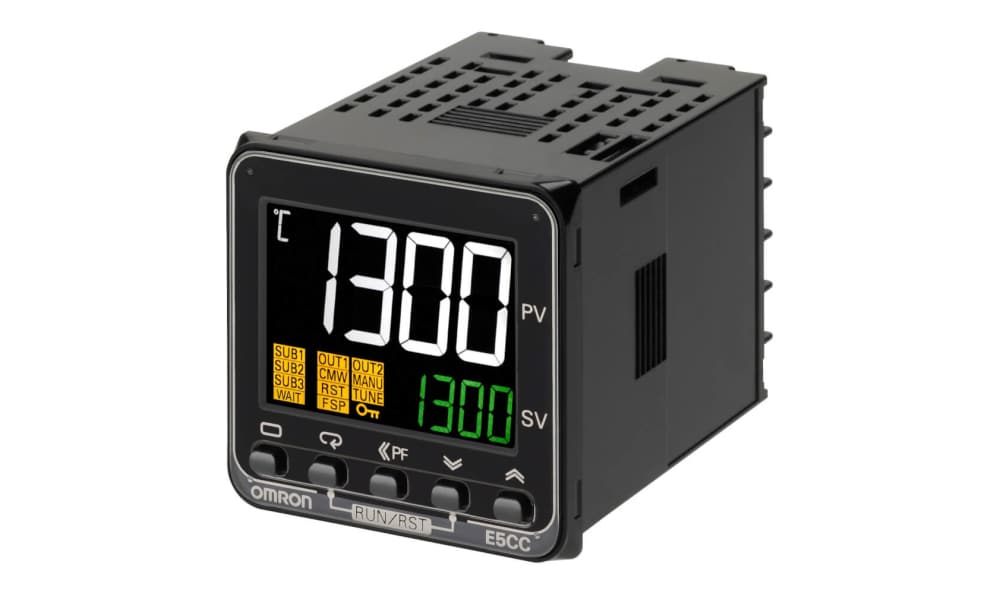

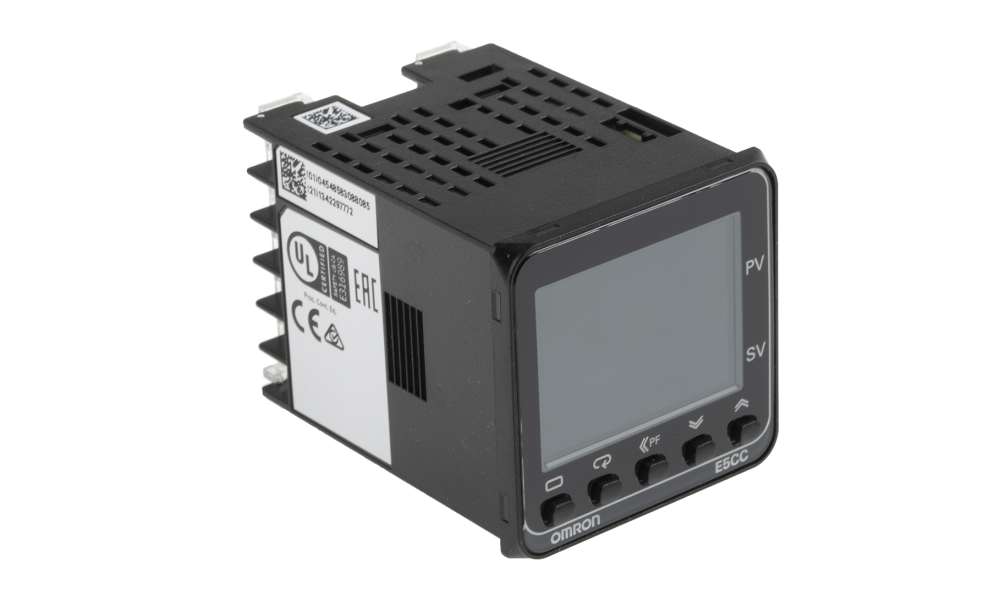

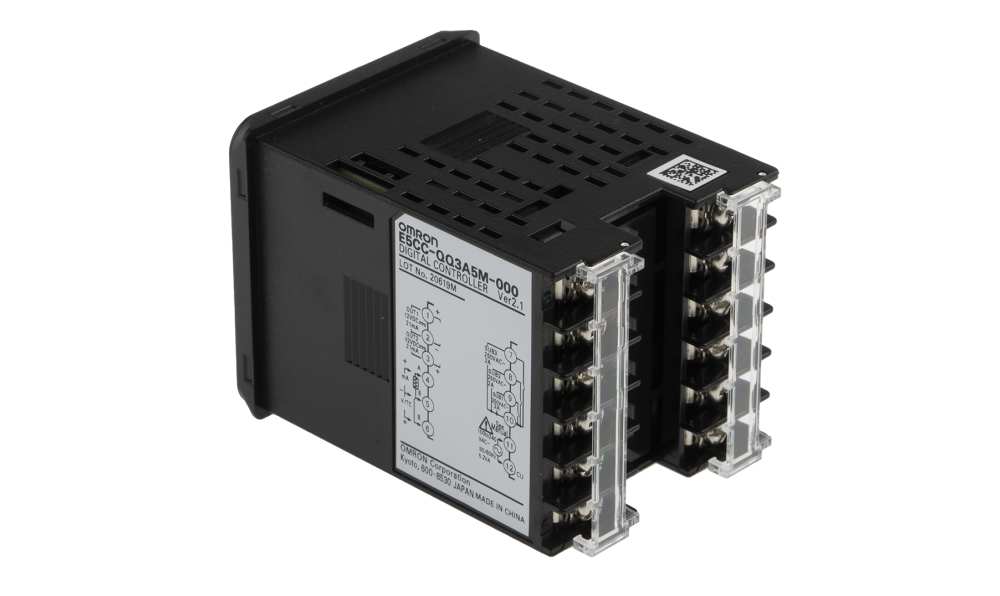

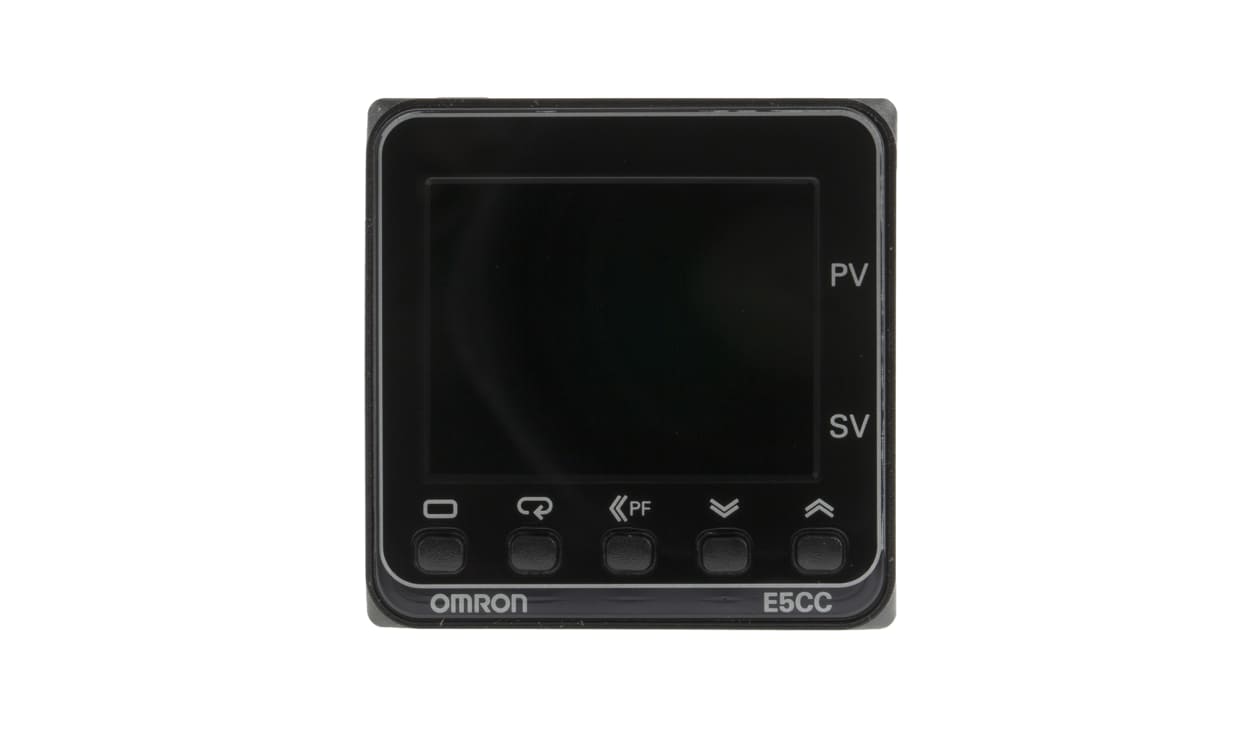

Name: Omron E5CC-QQ3A5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm 2/4 Input, 3 Output SSR, Solid State Relay, Logic, 100 →
Brand: OMRON
SKU: E5CC-QQ3A5M-000
Availability: OutOfStock

Omron E5CC-QQ3A5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm 2/4 Input, 3 Output SSR, Solid State Relay, Logic, 100 →

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CC-QQ3A5M-000, E5CC Panel Mount PID Temperature Controller, 48 x 48mm 2/4 Input, 3 Output SSR, Solid State Relay, Logic, 100 →

Part Number : E5CC-QQ3A5M-000

Availability: Sold out

Detailed Description
Specifications

Omron E5CC Series PID Temperature Controller, 48 x 48mm size, 100 to 240V AC Supply Voltage - E5CC-QQ3A5M-000

This PID temperature controller is a versatile device designed for precise temperature regulation within various industrial applications. Measuring 48 x 48mm with a depth of 60mm, it offers multiple input and output types, making it an excellent choice for diverse automation requirements. This controller operates within a temperature range of -200 to +2300°C, ensuring compatibility with a wide array of temperatures.

Features & Benefits

• Multiple control types including ON/OFF and PID for flexibility
• Supports various input types such as thermocouples for broad applicability
• Solid State Relay (SSR) output ensures efficient temperature control
• Panel mount design allows seamless integration into existing systems
• High IP ratings (IP00, IP20, IP66) provide enhanced durability
• Capability to handle supply voltages from 100 to 240V AC for versatility

Applications

• Employed in laboratory settings for precise scientific temperature control
• Utilised in manufacturing processes requiring consistent thermal regulation
• Ideal for food processing operations where temperature accuracy is critical
• Applied within HVAC systems to maintain optimal environmental conditions
• Used in electronic equipment for reliable thermal management

What types of thermocouples and sensors can be utilised with this controller?

The controller accommodates a range of inputs, including universals, Platinum Resistance Thermometers like PT100, and various thermocouple types, ensuring compatibility with multiple sensors for temperature measurement.

How does the SSR output enhance temperature control efficiency?

The SSR output allows for quicker switching, reducing the wear on control systems and enhancing responsiveness, resulting in more precise temperature maintenance without damaging mechanical components.

What are the benefits of having multiple input options?

Having multiple input options enables the controller to adapt to various sensors, making it suitable for different applications while simplifying integration into existing setups.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2/4
Number of Outputs	3
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
IP Rating	IP00, IP20, IP66
Input Type	Analogue, Platinum Resistance Thermometer, PT100, Thermocouple, Universal
Range	+10 → +70 °C, +60 → +120 °C, +115 → +165 °C, +140 → +260 °C
Series	E5CC
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Panel Depth	60mm
Display Colour	White
