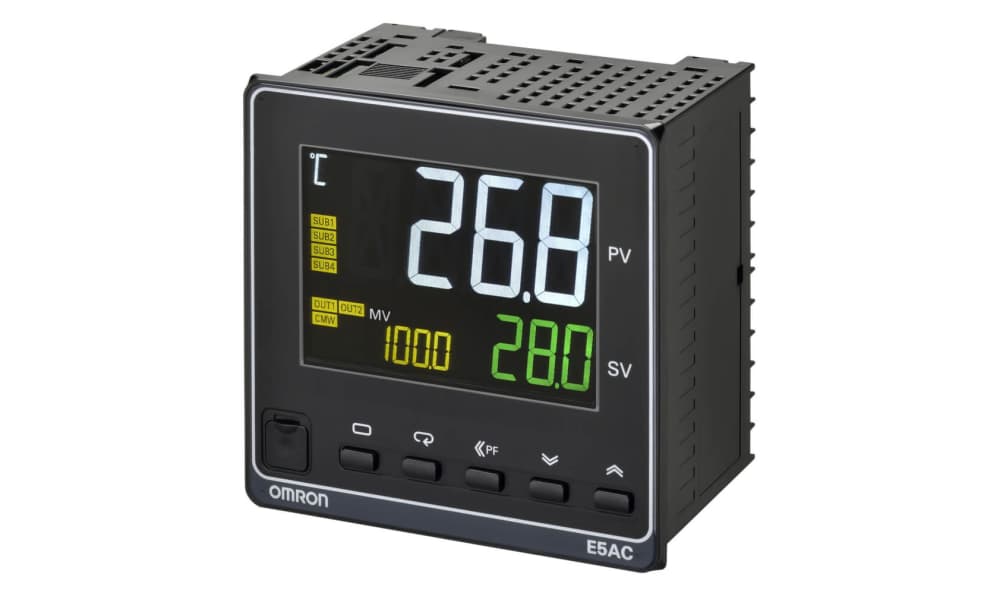

Name: Omron E5AC-CX4A5M-000, E5AC Panel Mount PID Temperature Controller, 96 x 96mm 2/4 Input, 4 Output Linear, Analogue, 4-20 mA, 100 → 240 V
Brand: OMRON
SKU: E5AC-CX4A5M-000
Availability: OutOfStock

Omron E5AC-CX4A5M-000, E5AC Panel Mount PID Temperature Controller, 96 x 96mm 2/4 Input, 4 Output Linear, Analogue, 4-20 mA, 100 → 240 V

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5AC-CX4A5M-000, E5AC Panel Mount PID Temperature Controller, 96 x 96mm 2/4 Input, 4 Output Linear, Analogue, 4-20 mA, 100 → 240 V

Part Number : E5AC-CX4A5M-000

Temp. controller, PRO; 1/4 DIN (96x96 mm); t/c & Pt100 & analog;4 alarms; 1st out current (lin)

Availability: Sold out

Detailed Description
Specifications
Features

Omron E5AC Series PID Temperature Controller, 100to240V AC Supply Voltage, 4-20 mA Output Type - E5AC-CX4A5M-000

This PID temperature controller is a versatile device designed for accurate temperature management in various industrial applications. With a compact panel mount format measuring 96 x 96mm, it accommodates multiple input types and features a clear LCD display. Its ability to operate within a temperature range from -200 to +2300 °C allows it to meet diverse operational needs.

Features & Benefits

• Provides precise control with ON/OFF and PID methods
• Supports multiple input types for flexibility in applications
• Features a clear LCD display for easy monitoring
• Offers 4-20 mA output for seamless integration into systems
• Equipped with 4 outputs for expanded control options
• Operates effectively across a wide temperature range

Applications

• Used for controlling heating systems in laboratories
• Utilised in industrial temperature control systems for machinery
• Commonly found in food processing requiring temperature regulation
• Employed in HVAC systems for managing environmental conditions

How does the controller handle various input types?

The device supports universal inputs including platinum resistance thermometers, thermocouples, and analogue signals, allowing it to adapt to different sensor technologies for optimum performance.

What communication options are available with this controller?

It features a communication module that enables connectivity with other automation systems, enhancing integration capabilities within complex setups.

What temperature range can be managed with this controller?

It can maintain temperatures from -200 to +2300 °C, making it suitable for a wide variety of applications across different industries.

How is the controller configured for different operational needs?

Configuration is user-friendly, allowing adjustments to the control type and settings through the intuitive LCD interface, optimising it for specific tasks.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Linear, Analogue, 4-20 mA
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Inputs	2/4
Number of Outputs	4
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LCD
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Input Type	Analogue, Platinum Resistance Thermometer, PT100, Thermocouple, Universal
Series	E5AC
Range	Omron E5AC
Additional Functionality	ON/OFF
Display Colour	White
Panel Depth	60mm

Temp. controller, PRO; 1/4 DIN (96x96 mm); t/c & Pt100 & analog;4 alarms; 1st out current (lin)
