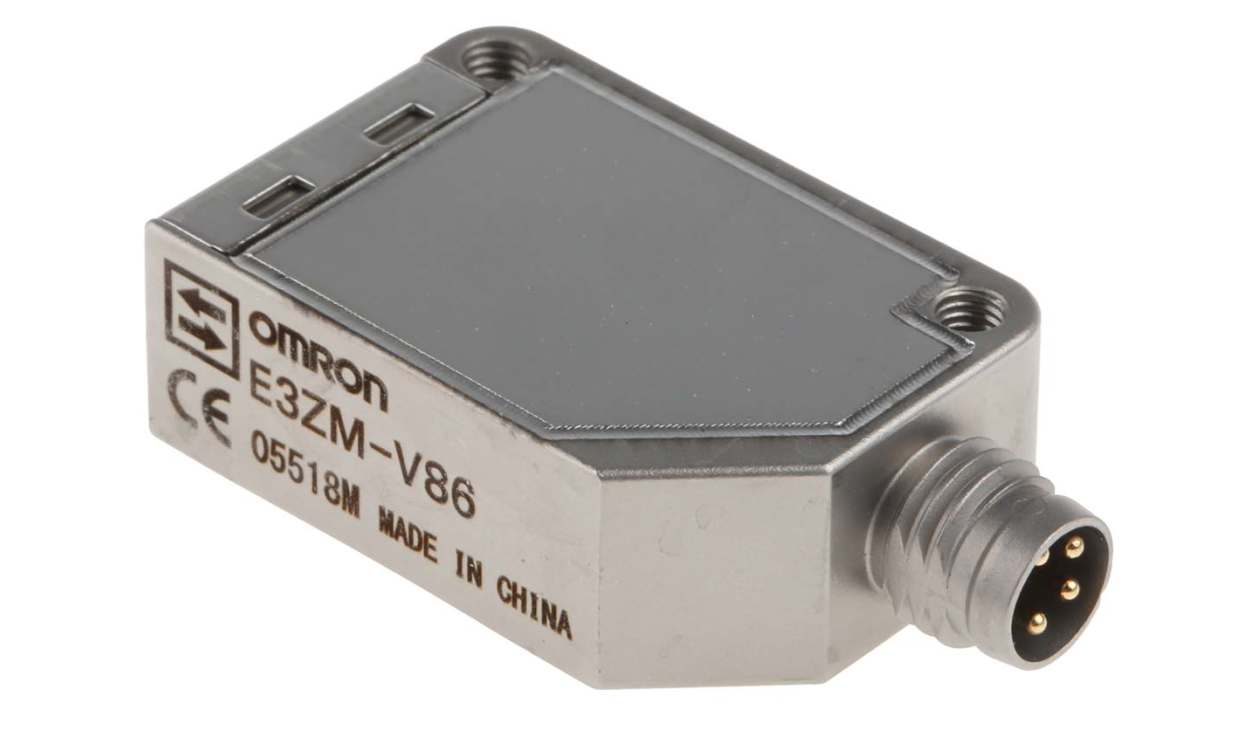

Omron E3ZMV86, Diffuse Photoelectric Sensor, Block Sensor, 12 mm Detection Range

Part Number : E3ZMV86

Availability: Sold out

Detailed Description
Specifications

Omron E3ZM Series Photoelectric Sensor, 12mm Detection Range, IP69K - E3ZMV86

This photoelectric sensor enhances automation processes in various industrial applications. It features advanced diffuse detection technology, enabling object detection within a 12mm range for precise operation. The block-style configuration allows flexible mounting, while the stainless steel housing provides durability in harsh environments. With an IP69K rating, it exhibits strong resistance to moisture and dust.

Features & Benefits

• Quick response time of 50μs for efficient monitoring
• Operating temperature range from -40 to +60°C
• M8 4 pin connector simplifies installation and connectivity
• Compact design suitable for space-constrained applications
• Built-in LED light source improves visibility and status monitoring

Applications

• Used in conveyor systems for object detection
• Integrated into packaging machines for alignment verification
• Applied in robotics for precise motion control
• Employed in assembly lines for quality assurance
• Suitable for environments that require high-pressure cleaning

What type of objects can this sensor detect?

It effectively detects various objects, including opaque surfaces within a 12mm range.

How resistant is it to extreme environments?

The sensor has an IP69K rating, allowing it to endure high-pressure and high-temperature conditions.

Is it compatible with all automation systems?

It supports standard PNP output configurations, ensuring compatibility with most automation systems.

How should this sensor be mounted?

For optimal performance, it can be mounted in constrained spaces due to its compact design.

What maintenance does this sensor require?

Regular checks for cleanliness of the lens and connections are recommended for continued operation in industrial settings.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	12 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP69K
Maximum Current	100 mA
Response Time	50 μs
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
Series	E3ZM
Housing Material	Stainless Steel
