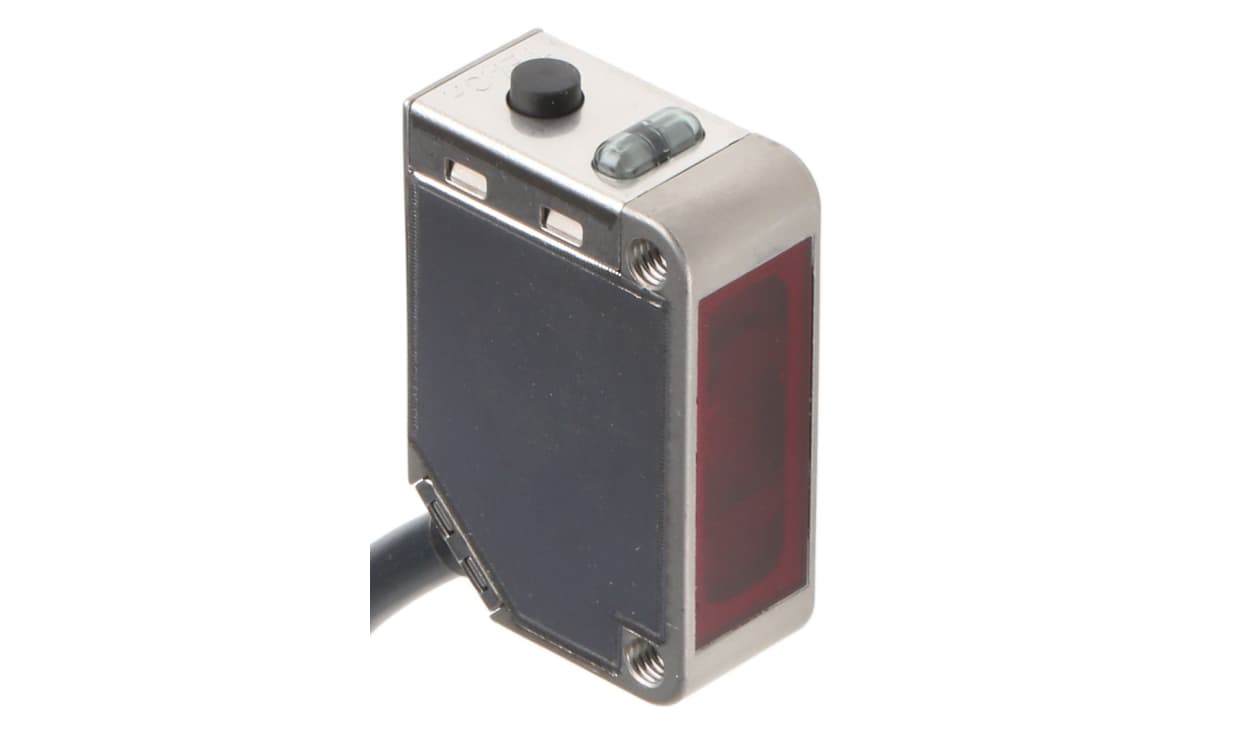

OMRON E3ZM-B81 2M | Retroreflective Photoelectric Sensor | 500 mm, PNP, Cable
With a detection range of 500 mm, the OMRON E3ZM-B81 2M is a retroreflective photoelectric sensor in a block-style housing that switches a PNP output. This sensor is wired via a 4-wire cable, has an LED light source and offers IP69K ingress protection.
- Maximum voltage 30 V DC
- Current rating up to 100 mA
- 1 ms response time
- Works from -40 °C to +60 °C
- Housing material: stainless steel
- Part of the OMRON E3ZM series
- Detailed Description
- Specifications
- Downloads
E3ZM-B Retro-Reflective Sensor
Stabile and reliable detection in difficult environments
High grade IP69K SUS housing
Designed for aggressive cleaning detergents of Food-Industry
One operation setup
| Brand | Omron |
| Series | E3ZM |
| Detection Type | Retroreflective |
| Detection Range | 500 mm (19.7 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | 4 Wire Cable 5 m |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Terminal Type | 4 Wire 2m Cable |
