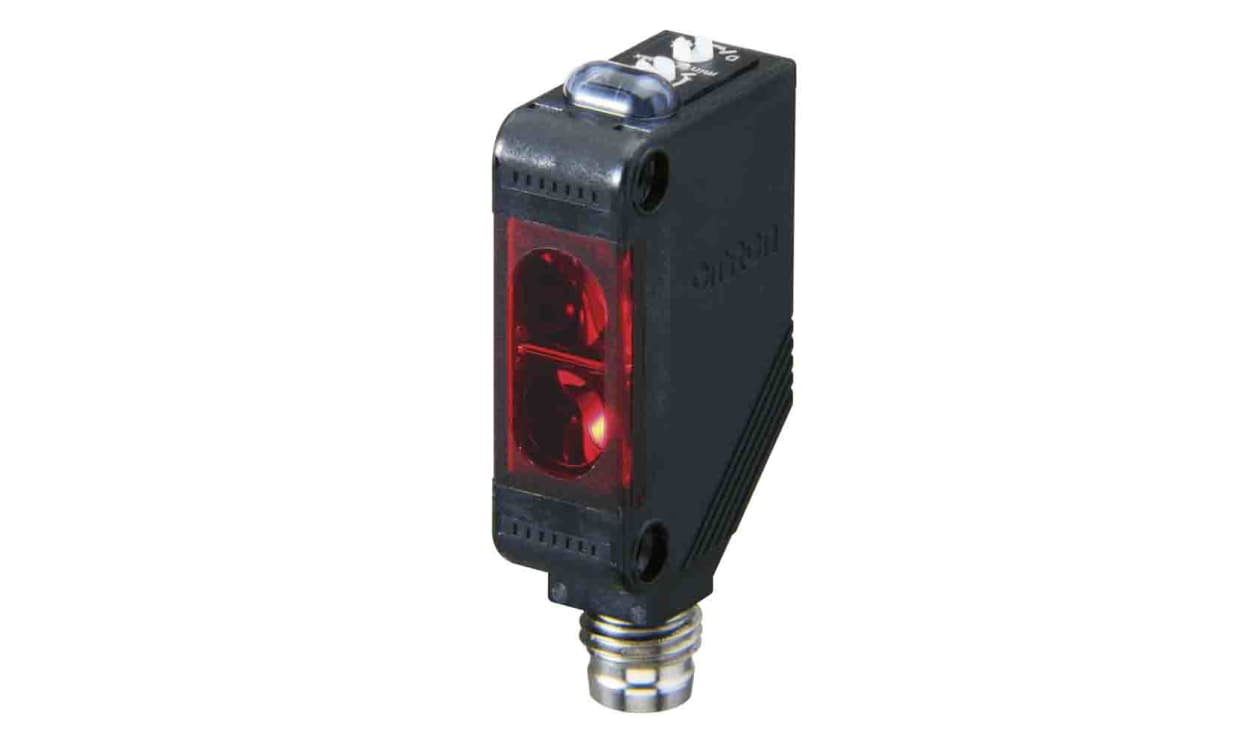

OMRON E3Z-R86-4 | Retroreflective Photoelectric Sensor | 4 m, PNP, M8 4-Pin
The OMRON E3Z-R86-4 is a compact retroreflective photoelectric sensor with a detection range of 4 m and a PNP output. It connects through an M8 4-pin connector, works with a polarised red light source and meets IP67 protection.
- Up to 24 V DC supply
- 30 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body in PBT
- Light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 4m Detection Range, PNP Output - E3Z-R86-4
Features & Benefits
• Retroreflective detection offers accuracy over a 4m range
• PNP output configuration compatible with various automation systems
• IP67 rating protects against dust and water ingress
• High-speed response time of just 1ms for prompt detection
Applications
• Suitable for packaging machines requiring precise sensing
• Used in robotic automation for accurate positioning
• Ideal for assembly line needing stability
• Employed in quality control processes to maintain product integrity
How should I connect this sensor to my existing setup?
What environmental conditions can this sensor operate in?
Is this sensor compatible with different control systems?
What is the response time of the sensor during operation?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Retroreflective |
| Detection Range | 4 m (13.1 ft) |
| Sensor Style | Compact |
| Output Type | PNP |
| Electrical Connection | M8 4 Pin Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Polarized Red Light |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE |
