Omron E3Z-LL81 5M, Diffuse Photoelectric Sensor, Block Sensor, 20 → 300 mm Detection Range

Part Number : E3Z-LL81 5M

Availability: Sold out

Detailed Description
Specifications
Downloads

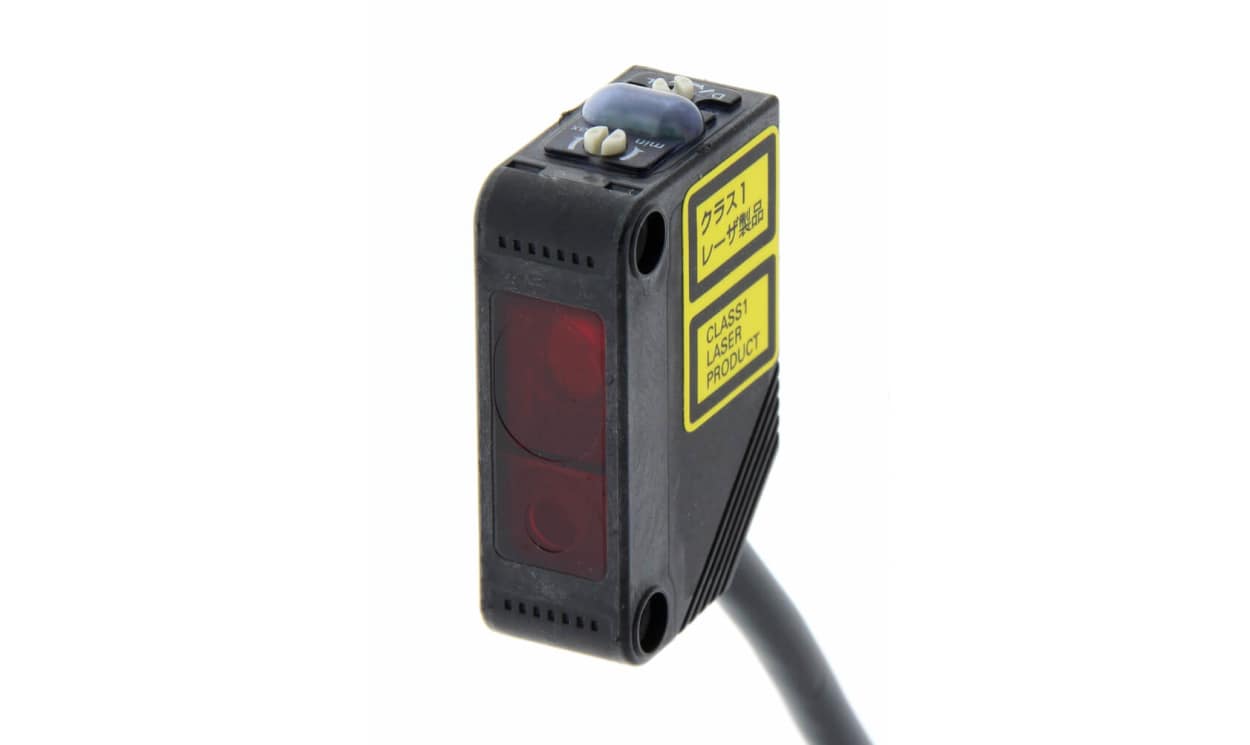

Omron E3Z Series Photoelectric Sensor, 20 to 300mm Detection Range, IP67 - E3Z-LL81 5M

This photoelectric sensor is intended for effective object detection in a variety of automation applications. It employs diffuse detection technology and is suitable for tasks that require accurate monitoring within a detection range of 20mm to 300mm. The use of a laser diode enhances precision, making it a key component for users in the electronics and mechanical sectors.

Features & Benefits

• IP67 rated sensor provides protection against dust and water
• Functions within a wide temperature range of -10°C to +55°C
• 5m cable facilitates flexible installations

Applications

• Suitable for proximity detection in industrial automation
• Ideal for packaging machinery needing precise measurements
• Commonly used in conveyor systems for counting objects
• Implemented in quality control processes to ensure consistent performance

How can it be integrated into existing systems?

The sensor has a standard electrical connection, making it compatible with most automation systems, and the PNP output configuration simplifies integration.

What is the impact of temperature on performance?

The sensor operates effectively across a broad temperature range, ensuring consistent functionality from -10°C to +55°C.

What voltage is required for operation?

The sensor operates with a maximum DC voltage of 24V, which is compatible with standard automation power systems.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	20 → 300 mm
Output Type	PNP
Switching Mode	Light / Dark switching
Electrical Connection	Cable 5 m
Maximum DC Voltage	24V
Light Source	Laser Diode, Red Light
IP Rating	IP67
Response Time	1 ms
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-10°C
Housing Material	PBT
Series	E3Z

Omron E3Z-LL81 5M, Diffuse Photoelectric Sensor, Block Sensor, 20 → 300 mm Detection Range

DOWNLOAD CATALOG

E3Z-LL81 5M Brochure - Photoelectric Sensors A700000012779456

E3Z-LL81 5M Instruction Sheet - E3Z-LL81 5M A700000012781082

E3Z-LL81 5M Product Change Notification A700000014615984
