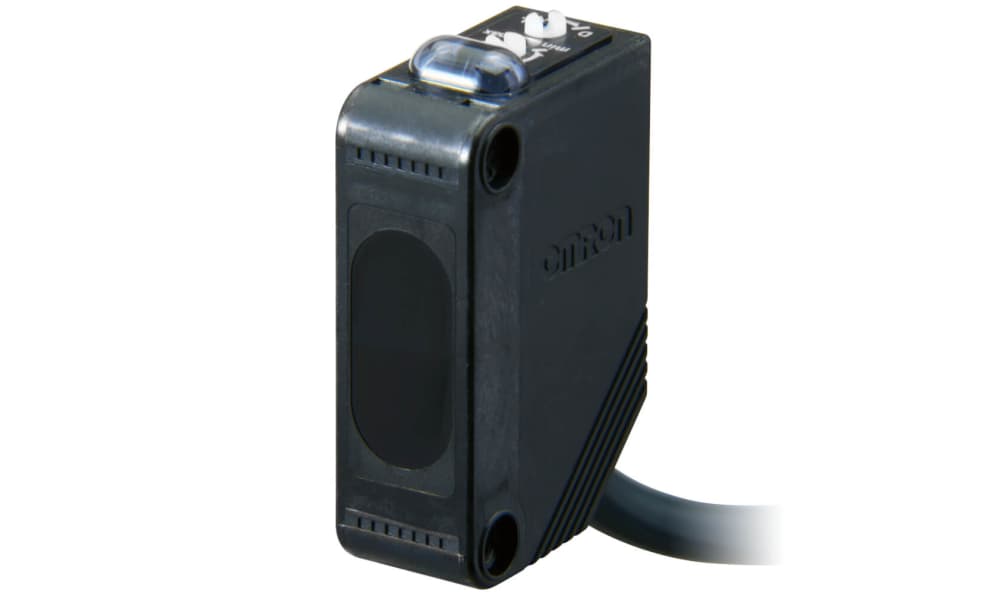

OMRON E3Z-D62 2M | Diffuse Photoelectric Sensor | 1 m, NPN, 2 m Cable
With a 1 m detection range, the OMRON E3Z-D62 2M is a block-style diffuse photoelectric sensor, supplied with NPN output and a 2 m 3-wire cable. It is rated IP67, with a PBT housing and an operating temperature range of -25°C to +55°C. Response time is 1 ms, using an infrared LED light source.
- Requires mounting bracket
- 3-wire DC connection
- Maximum DC voltage: 26.4V
- Maximum current: 30 mA
- Series: OMRON E3Z
- Detection range: 1 m
- Detailed Description
- Specifications
- Features
- Downloads
Omron E3Z Series Photoelectric Sensor, 1m Detection Range, NPN Output Type - E3Z-D62 2M
Features & Benefits
• Utilises infrared LED technology for enhanced detection
• NPN output for simple integration with control systems
• IP67 rating provides protection against dust and moisture
• High response time of 1ms ensures accurate object detection
• Low current consumption for energy-efficient operation
Applications
• Used for monitoring travel limits in automated equipment
• Suitable for sensing transparent PET bottles in packaging lines
• Effective in detecting items on manufacturing assembly lines
• Utilised for condition monitoring in electrical
How does the design of the product support its functionality in harsh environments?
What is the significance of the NPN output feature?
Can the sensor perform in varying light conditions?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Diffuse |
| Detection Range | 1 m (3.28 ft) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | 3 Wire Cable 2 m |
| Light Source | Infrared LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 26.4V |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Maximum AC Voltage | 1000V |
Photoelectric sensor, diffuse, 1 m, DC, 3-wire, NPN, 2 m cable (requires bracket)
