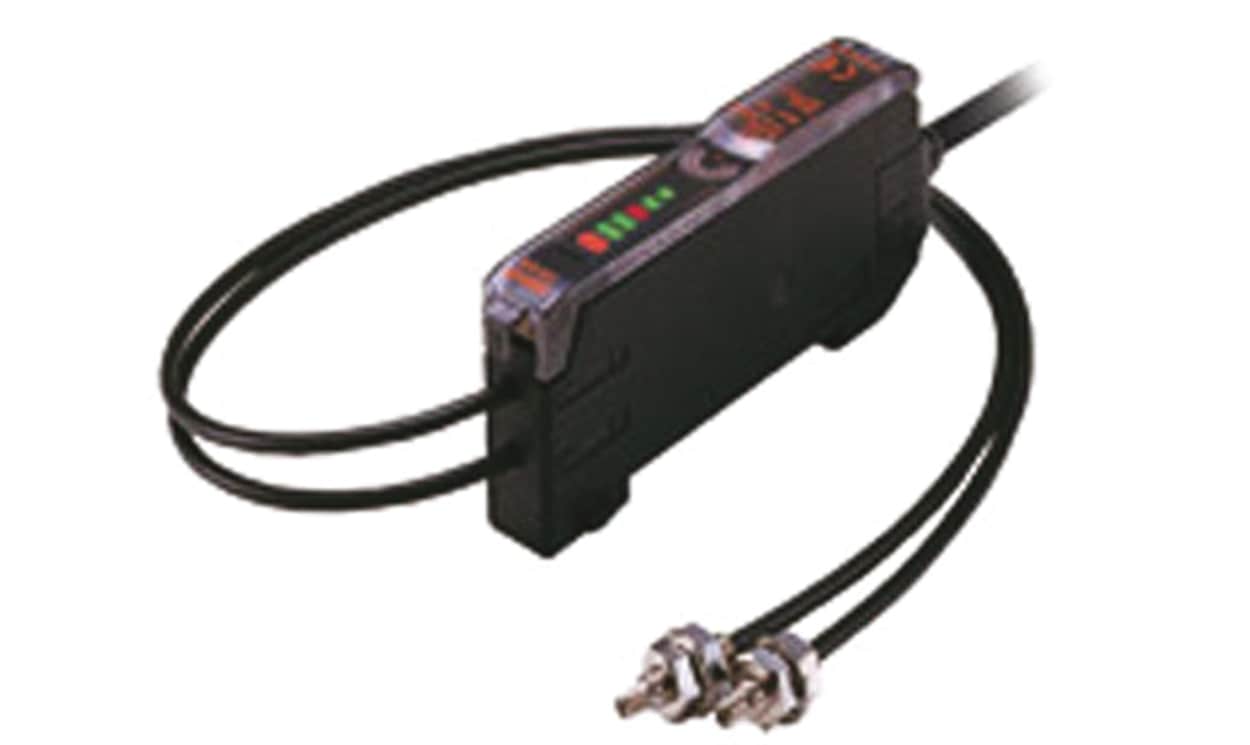

OMRON E3X-NA11V 2M | Fibre Optic Sensor | NPN, 840 mW, DIN Rail
The E3X-NA11V 2M from OMRON is an NPN fibre optic sensor for DIN rail mounting, with a red LED and a pre-wired cable. The maximum operating temperature depends on how many amplifiers are grouped together.
- NPN output, 200 µs response
- 840 mW, 12 to 24 V DC
- IP50, PBT housing, CE
- 159.2 x 12 x 33 mm
- Max. +55 °C (1 to 3 units), +50 °C (4 to 11), +45 °C (12 to 16)
- Minimum operating temperature -25 °C
- Detailed Description
- Specifications
- Downloads
Omron Fibre Optic Sensor, 159.2 x 12 x 33mm, IP50 - E3X-NA11V 2M
Features & Benefits
• NPN output for seamless integration with industrial control systems
• Red LED light source for precise sensing in various operating conditions
• IP50 rated for protection against dust and moisture
• Fast response time of 200 μs for rapid detection
• High-temperature operation ensures reliable performance in challenging environments
Applications
• Ideal for high-speed detection requirements in manufacturing processes
• Suitable for long-distance sensing needs in industrial automation setups
Can it withstand high temperatures in industrial environments?
Will it provide accurate detection with the red LED light source?
Is it suitable for use in mark-detecting applications?
| Brand | Omron |
| IP Rating | IP50 |
| Terminal Type | Wire Lead |
| Response Time | 200 μs |
| Supply Voltage | 12 → 24 V dc |
| Output Type | NPN |
| Light Source | Red LED |
| Housing Material | PBT |
| Length | 159.2 mm (6.27 in) |
| Maximum Operating Temperature | +45 (Groups of 12 → 16 Amplifiers) °C, +50 (Groups 4 → 11 Amplifiers) °C, +55 (Groups 1 → 3 Amplifiers) °C |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 159.2 x 12 x 33 mm (6.27×0.472×1.30 in) |
| Electrical Connection | Pre-Wired Cable |
| Power Consumption | 840 mW |
| Width | 12 mm (0.472 in) |
| Depth | 33 mm (1.30 in) |
| Switching Frequency | 60 Hz |
| Mounting Type | DIN Rail |
| Standards Met | CE |
