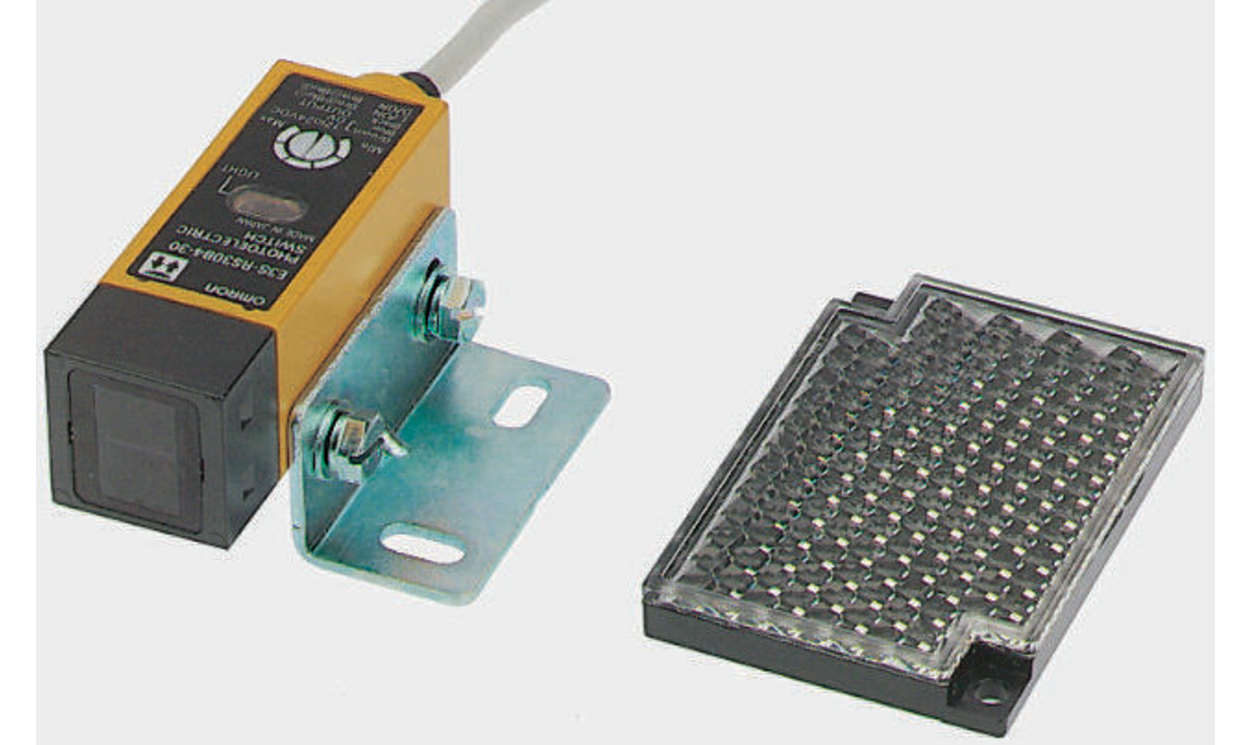

OMRON E3S-RS30E4-30 | Retroreflective Photoelectric Sensor | 300 mm, NPN, 2 m Cable
The OMRON E3S-RS30E4-30 is a block-style retroreflective photoelectric sensor with a 300 mm detection range. It provides NPN output and a 2 m 3-wire cable. The die-cast zinc housing is rated IP67 for operation from -25°C to +55°C. Its infrared light source gives a response time of 1 ms.
- Maximum DC voltage: 24V
- Maximum current: 80 mA
- Series: OMRON E3S
- Detection range: 300 mm
- Output: NPN
- Connection: 2 m 3-wire cable
- Detailed Description
- Specifications
- Downloads
E3S-RS Series Short Range Clear Object Sensors
Response time: 1ms (ON or OFF)
One-turn sensitivity adjustment
IR (Infrared) LED Light Source
Load Short-Circuit Protection
Mutual interference prevention
Supply Voltage: 12 to 24 Vdc
Current Consumption 40 mA
Operating Temperature: 0°C to 40°C
Housing Material: Zinc die-cast (Lens: Polycarbonate)
Connection: Pre-wired cable included
E39-R1 reflector included
IP67 Environmental Ingress Protection


| Brand | Omron |
| Series | E3S |
| Detection Type | Retroreflective |
| Detection Range | 300 mm (11.8 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | 3 Wire Cable 2 m |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 80 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Die Cast Zinc |
| Maximum Operating Temperature | +55 °C (131 °F) |
