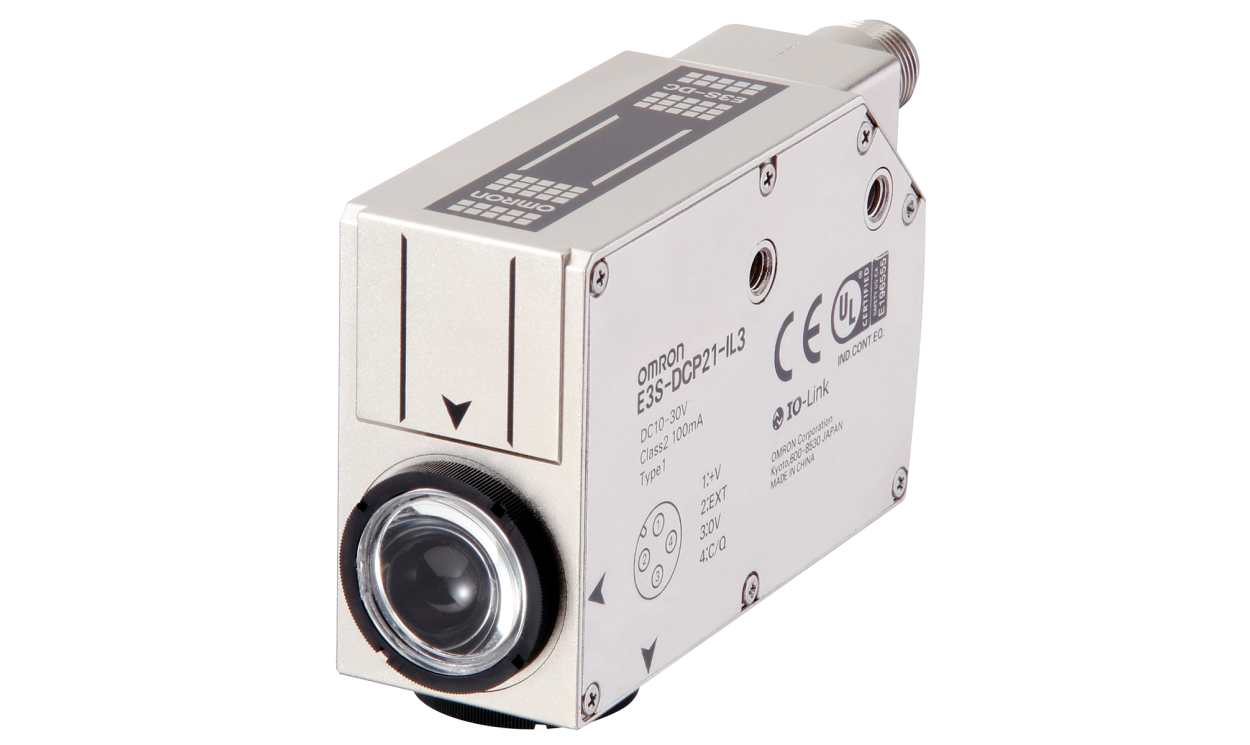

Name: Omron E3S-DCP21-IL3, Diffuse Photoelectric Sensor, Block Sensor, 10 mm Detection Range IO-LINK
Brand: OMRON
SKU: E3S-DCP21-IL3
Availability: OutOfStock

Omron E3S-DCP21-IL3, Diffuse Photoelectric Sensor, Block Sensor, 10 mm Detection Range IO-LINK

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3S-DCP21-IL3, Diffuse Photoelectric Sensor, Block Sensor, 10 mm Detection Range IO-LINK

Part Number : E3S-DCP21-IL3

Registration mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50Âµs response time, Push-Pull, IO-Link V1.1 communication COM3 (230.4kbps), M12 connector

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

E3S-DC Colour Detection Photoelectric Sensors

Omron E3S-DC colour mark photoelectric sensors offer reliable detection colour markings on any type of packaging. High luminance, three-element (RGB) LED light source for greater light intensity. Highly efficient optics technology provides high power and enables stable detection even of subtle colour differences.

Handles glossy workpieces
Detects subtle colour differences
Narrow beam and large lens

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	10 mm
Output Type	PUSH/PULL
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Communication Protocol	IO-LINK
Terminal Type	4 Pin Connector
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Interface	IO-Link
Response Time	50 μs, 150 μs
Maximum Operating Temperature	+55°C
Housing Material	Die Cast Zinc
Series	E3S
Mounting Type	Threaded
Minimum Operating Temperature	-10°C
Standards Met	CE, IEC 60529, UL Certified

Registration mark sensor, diffuse, rectangular shape, IP67 , 10 +/- 3mm, 50µs response time, Push-Pull, IO-Link V1.1 communication COM3 (230.4kbps), M12 connector
