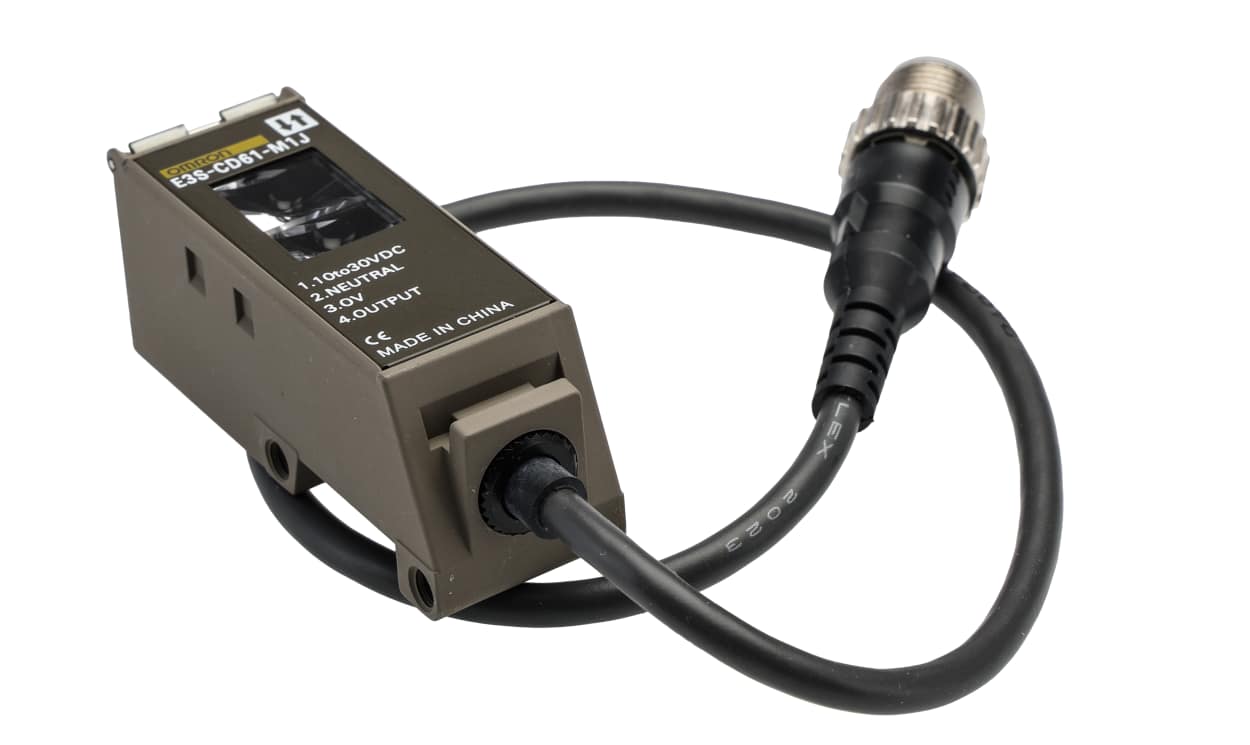

Name: Omron E3S-CD61-M1J 0.3M, Diffuse Photoelectric Sensor, Block Sensor, 700 mm Detection Range
Brand: OMRON
SKU: E3S-CD61-M1J 0.3M
Availability: OutOfStock

Omron E3S-CD61-M1J 0.3M, Diffuse Photoelectric Sensor, Block Sensor, 700 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3S-CD61-M1J 0.3M, Diffuse Photoelectric Sensor, Block Sensor, 700 mm Detection Range

Part Number : E3S-CD61-M1J 0.3M

Availability: Sold out

Detailed Description
Specifications

Omron Series E3S Photoelectric Sensor, 700mm Detection Range, Infrared Light Source - E3S-CD61-M1J 0.3M

This photoelectric sensor is designed for industrial automation applications, featuring a robust block style. With a detection range of up to 700mm, it supports efficient operation in various environments. Constructed from die-cast zinc, it excels in durability and reliability, ensuring consistent performance under challenging conditions.

Features & Benefits

• NPN/PNP output options simplify integration into existing systems
• High shock resistance facilitates reliable operation in dynamic environments
• Infrared light source optimises performance in low visibility settings
• Pre-wired cable connection enables easy installation and maintenance

Applications

• Utilised in automotive assembly lines for precise component detection
• Suitable for use in food processing environments resistant to hydrogen peroxide
• Effective in packaging machines where oil vapours are present
• Ideal for detecting engine blocks in automotive manufacturing

What environmental conditions can this sensor operate in?

It operates within a temperature range of -25°C to +55°C and can withstand humid conditions due to its IP67 rating.

How can mutual interference be minimised while using multiple units?

The fuzzy inference technology prevents malfunctions by intelligently monitoring ambient light levels and adjusting the sensor operation accordingly.

What is the significance of the response time?

A response time of 1ms allows rapid detection of objects, ensuring that production processes remain efficient and uninterrupted.

What type of connections are supported?

The sensor is designed with a pre-wired connection, streamlining the setup process and enhancing reliability.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	700 mm
Output Type	NPN/PNP
Electrical Connection	Pre-Wired Cable
Switching Mode	Light / Dark switching
Maximum DC Voltage	30V
Terminal Type	M12 Connector
Light Source	Infrared
IP Rating	IP67
Maximum Current	40 mA
Response Time	1 ms
Series	E3S
Minimum Operating Temperature	-25°C
Housing Material	Die Cast Zinc
Maximum Operating Temperature	+55°C
Standards Met	CE
