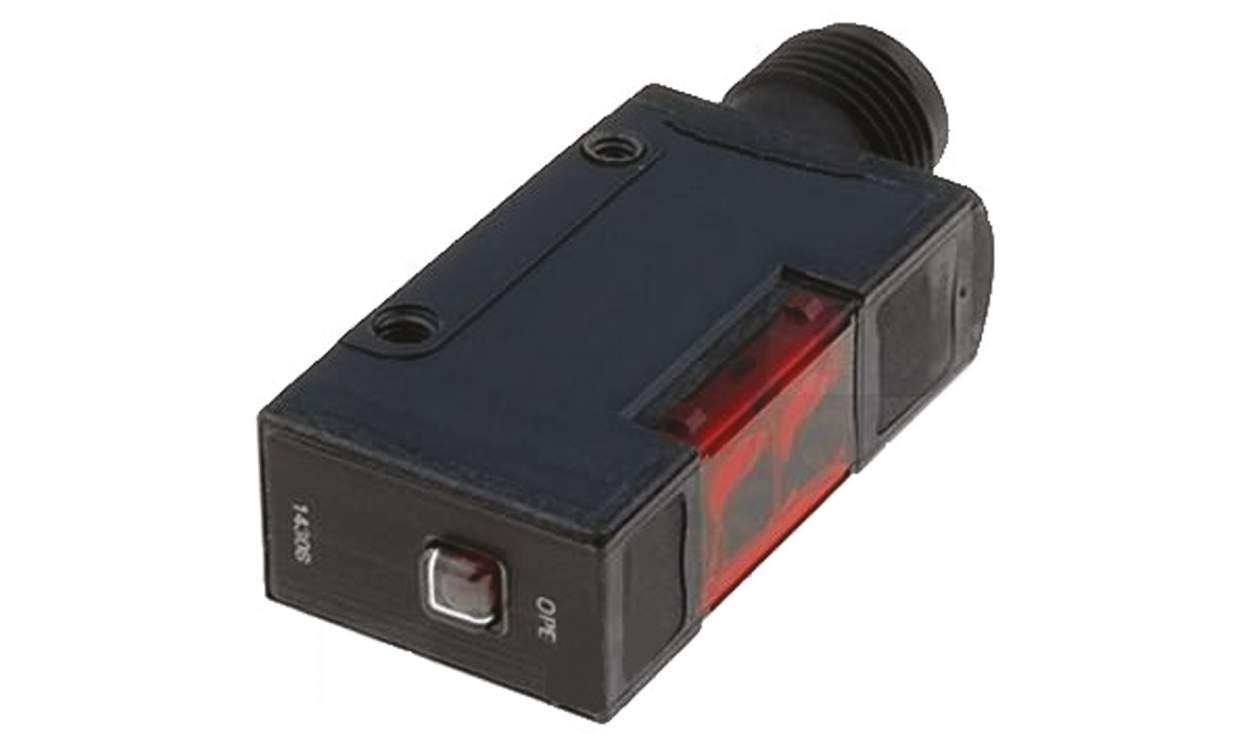

OMRON E3S-AT36-D | Through-Beam Photoelectric Sensor | 7 m, PNP, M12 Connector
OMRON E3S-AT36-D: PNP block-style through-beam photoelectric sensor with a 7 m detection range. Connection is via M12 connector. Protection is IP67 and the PBT housing works between -25°C and +55°C. Light source: LED; response time: 500 μs.
- Maximum DC voltage: 30V
- Maximum current: 20 mA
- Terminal: 4-pin connector
- Series: OMRON E3S
- Detection range: 7 m
- Output: PNP
- Detailed Description
- Specifications
- Downloads
E32 Series Fibre Optic Sensing Heads
All fibres are 2m long black PE.
Permissable bend radius 25mm min.
Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber
| Brand | Omron |
| Series | E3S |
| Detection Type | Through Beam |
| Detection Range | 7 m (23.0 ft) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | M12 Connector |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 20 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | 4 Pin Connector |
