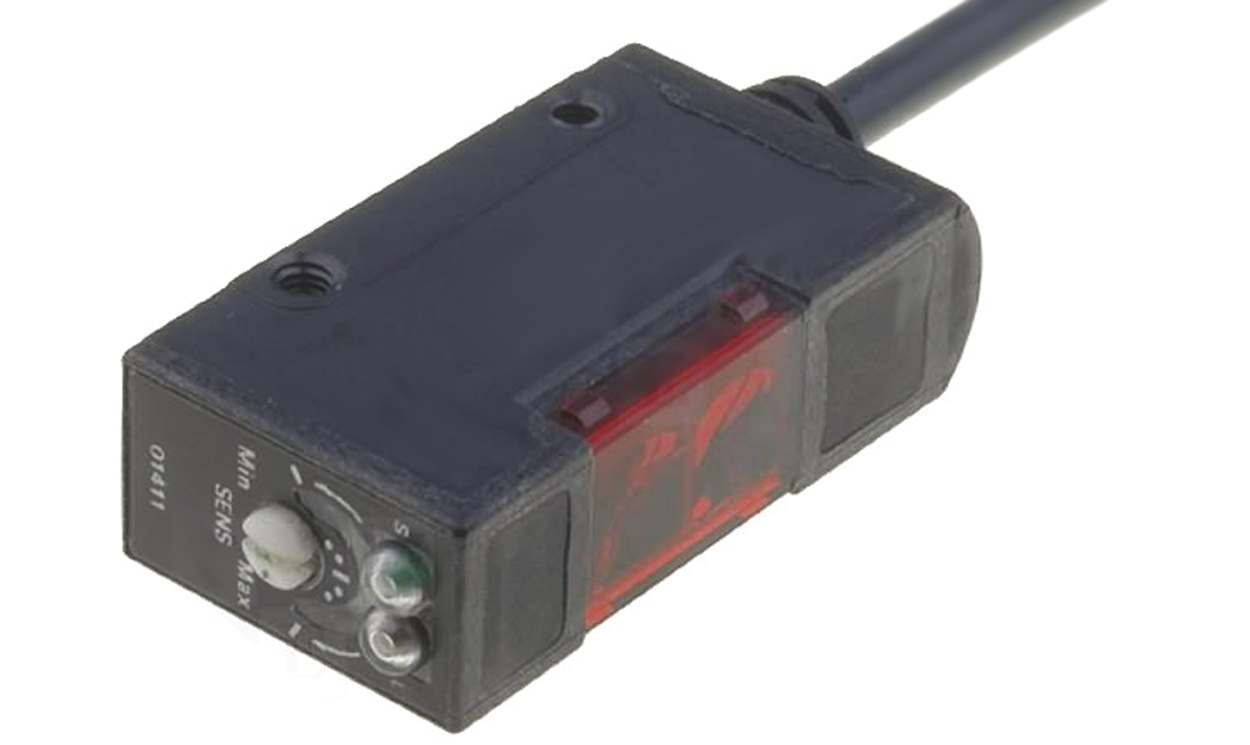

OMRON E3S-AD81 | Diffuse Photoelectric Sensor | 10 mm to 200 mm, PNP, Pre-Wired Cable
With a 10 mm to 200 mm detection range, the OMRON E3S-AD81 is a block-style diffuse photoelectric sensor, supplied with PNP output and a pre-wired cable. It is rated IP67, with a PBT housing and an operating temperature range of -25°C to +55°C. Response time is 500 μs, using a red LED light source.
- Maximum DC voltage: 30V
- Maximum current: 100 mA
- Series: OMRON E3S
- Detection range: 10 mm to 200 mm
- Output: PNP
- Connection: pre-wired cable
- Detailed Description
- Specifications
- Downloads
E3S-A High Performance Sensors
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included
Omron E3S Series Photoelectric Sensor, 10 mm to 200 mm Detection Range, PNP Output Type - E3S-AD81
Features & Benefits
• PNP output type for versatile industrial integration
• Efficient response time of 500 μs for swift operations
• Red LED light source enhances visibility and performance
• Operating temperature range from -25 °C to +55 °C supports diverse conditions
• Block style design simplifies mounting and installation
Applications
• Utilised in automation systems for effective control processes
• Employed in packaging lines for product monitoring
• Applied in conveyor systems to detect items at varying distances
What are the installation requirements for optimising performance?
How does the light source contribute to the sensor's functionality?
What is the significance of the IP67 rating for this sensor?
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 10 mm → 200 mm (0.394 to 7.87 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | Pre-Wired |
| Light Source | Red LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Pre-Wired |
