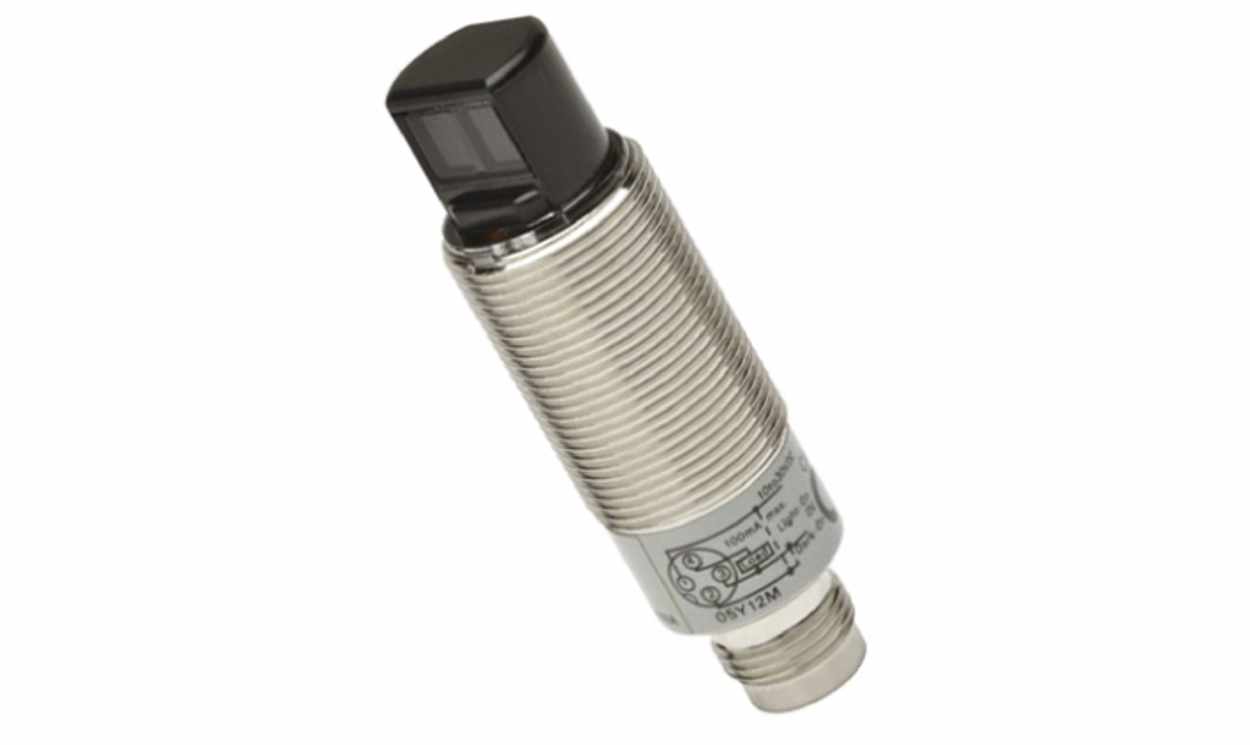

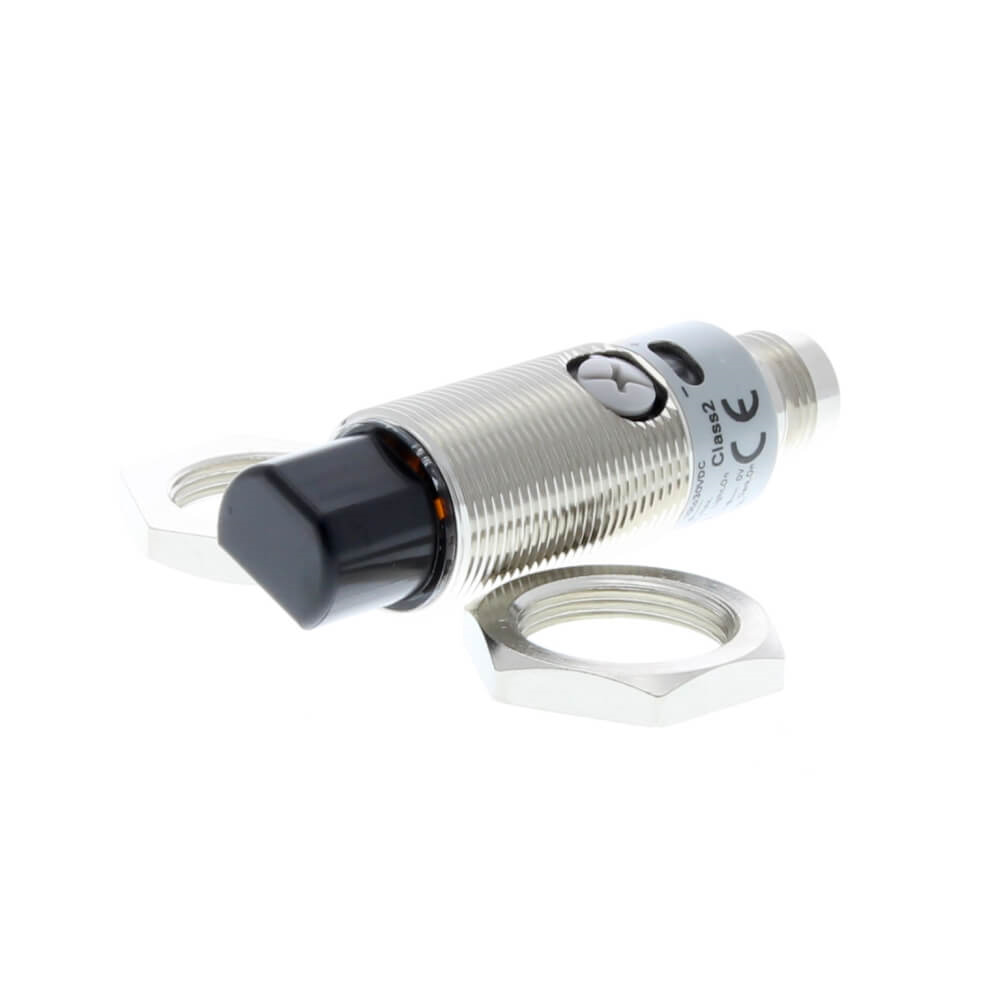

OMRON E3RB-DP22 | Diffuse Photoelectric Sensor | 300 mm, PNP, M12 4-Pin Connector
With a 300 mm detection range, the OMRON E3RB-DP22 is an M18 radial barrel-style diffuse photoelectric sensor offering PNP output. The E3RB-DP22 connects via an M12 4-pin connector and has a nickel-plated brass housing. OMRON lists the E3RB-DP22 in its E3RB series.
- LED light source
- Rated up to 30 V DC
- Maximum current: 25 mA
- 500 μs response time
- IP67 and IP69K ingress protection
- Works from -25°C to +55°C
- Detailed Description
- Specifications
- Features
- Downloads
E3RB Compact Radial Photoelectric Sensors
Compact design
Metal housing
Visible LED light for easy alignment
LED indication
Light-ON/Dark-ON selectable by wiring
Reversed power supply polarity protection, output short circuit protection and reversed output polarity protection
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3RB |
| Detection Type | Diffuse |
| Detection Range | 300 mm (11.8 in) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | M12 4 Pin Connector |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67, IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Nickel Plated Brass |
| Maximum Operating Temperature | +55 °C (131 °F) |
Photoelectric sensor, M18 radial, metal body, red LED, diffuse, 300mm, PNP, L-ON/D-ON selectable, M12 connector
