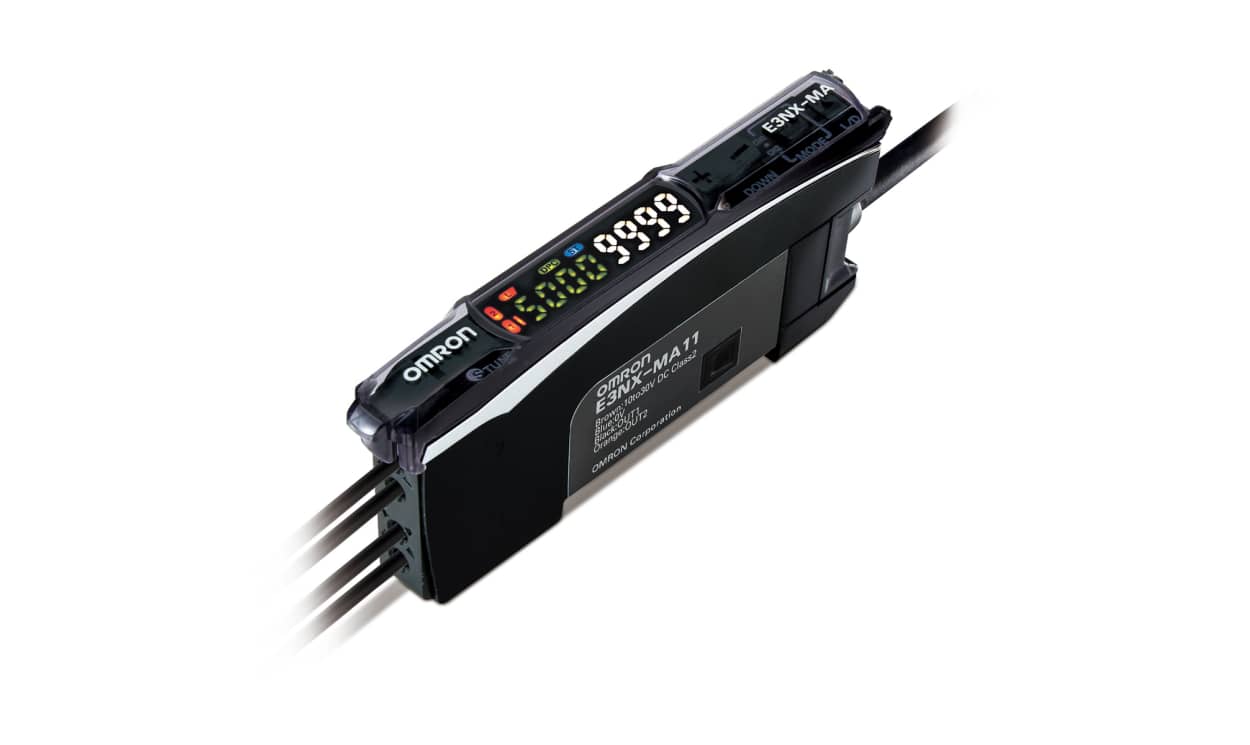

OMRON E3NX-MA11 2M | Fibre Amplifier | NPN, 960 mW, IP50/IP54
The OMRON E3NX-MA11 2M fibre amplifier provides an NPN output on a pre-wired cable, with response times from 100 µs to 16 ms. IP50 and IP54 are both listed for its polycarbonate housing.
- NPN output
- Response 100 µs, 450 µs, 1 ms, 16 ms
- 960 mW, 30 V DC (as listed)
- 104.5 x 10 x 33.5 mm, DIN rail
- Operating temperature -25 to +55 °C
- Detailed Description
- Specifications
- Downloads
Performance with highly stable detection even with two channels, from transparent objects to low-reflective workpieces.
Easy to set the light intensity and threshold automatically.
Wire-saving Connector models reduce wiring work.
| Brand | Omron |
| IP Rating | IP50, IP54 |
| Terminal Type | Pre-Wired |
| Response Time | 1 ms, 16 ms, 100 μs, 450 μs |
| Supply Voltage | 30 V dc |
| Output Type | NPN |
| Light Source | LED |
| Housing Material | Polycarbonate |
| Length | 104.5 mm (4.11 in) |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 104.5 x 10 x 33.5 mm (4.11×0.394×1.32 in) |
| Power Consumption | 960 mW |
| Width | 10 mm (0.394 in) |
| Depth | 33.5 mm (1.32 in) |
| Mounting Type | DIN Rail |
