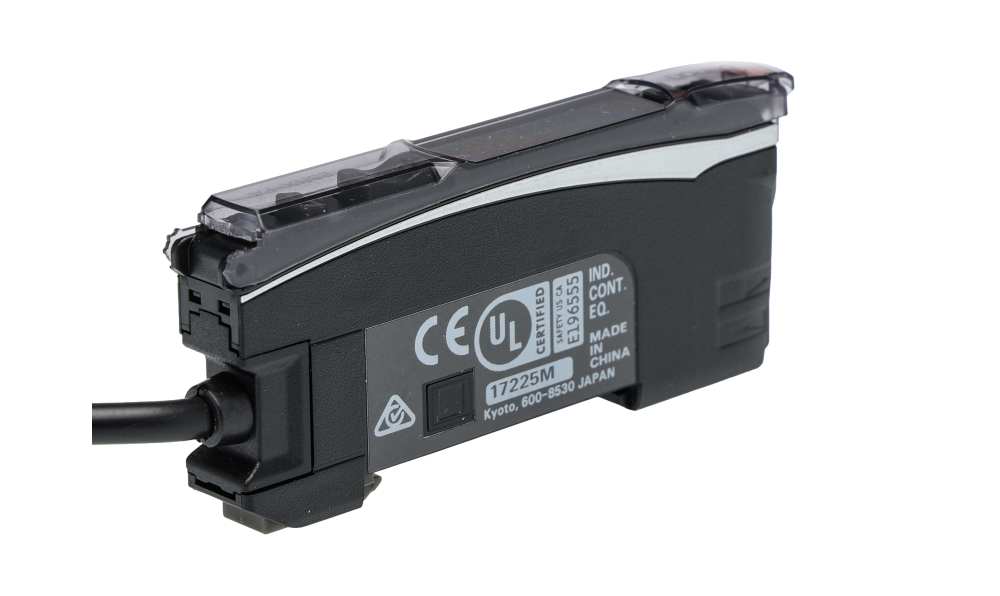

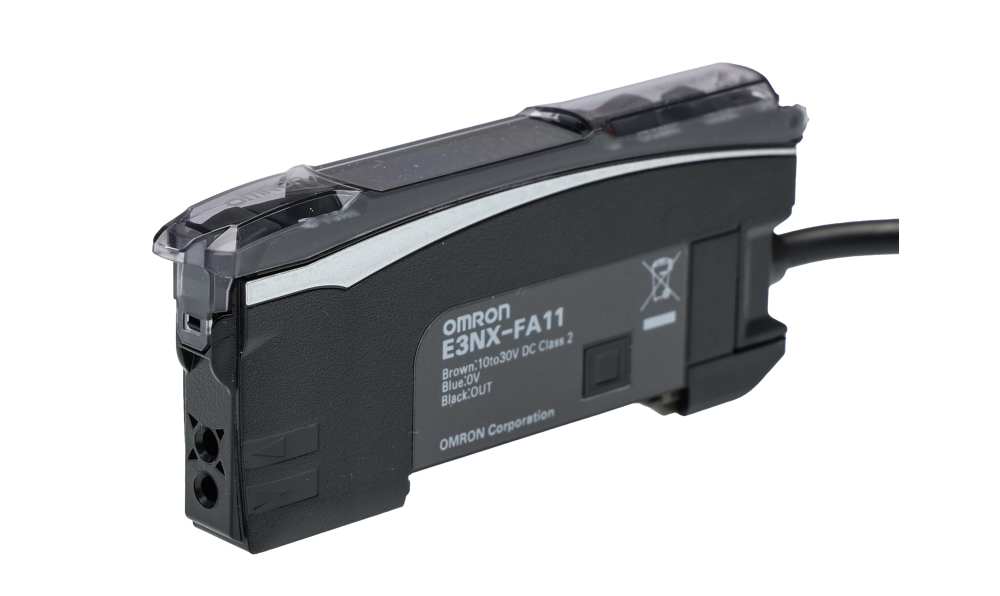

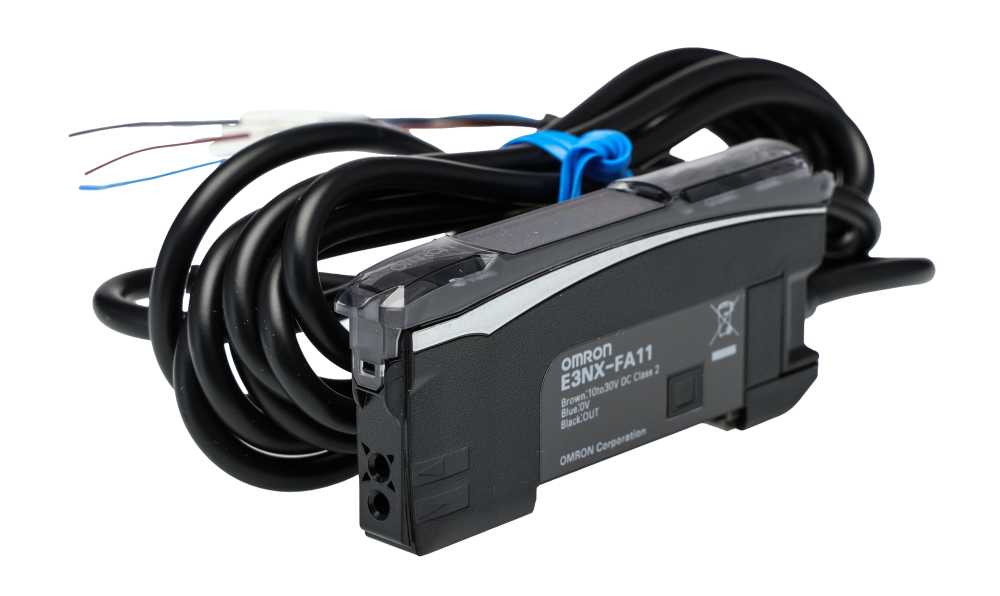

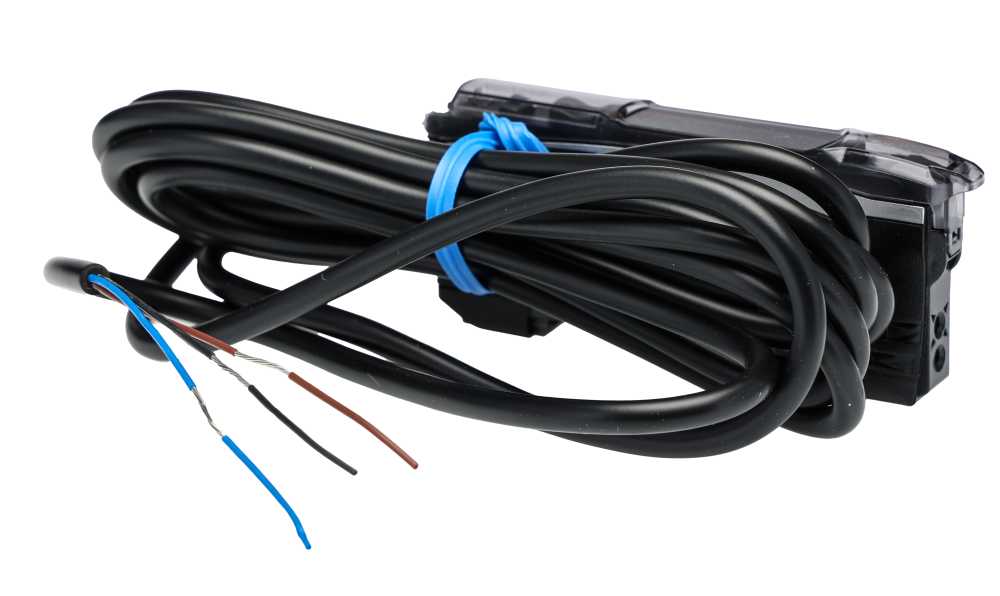

OMRON E3NX-FA11 2M | Fibre Optic Sensor | NPN, Red LED, 10 to 30 V DC
The OMRON E3NX-FA11 2M is an NPN fibre optic sensor with a red LED light source and a pre-wired cable. Response reaches 30 µs in super high speed mode, and CC-Link, CompoNet and EtherCAT are listed as interfaces.
- NPN output, pre-wired cable
- Response 30 µs / 250 µs / 1 ms / 16 ms by mode
- 840 mW at 35 mA, 10 to 30 V DC
- Polycarbonate housing, DIN rail mount
- Operating temperature -25 to +55 °C
- CE, IEC 60947-1
- Detailed Description
- Specifications
- Downloads
Omron Fibre Optic Sensor, 10 to 30 V DC Supply Voltage, NPN Output Type - E3NX-FA11 2M
Features & Benefits
• Smart Tuning capability simplifies setup for various use
• High-speed response times of up to 30μs for enhanced efficiency
• Supports CC-Link and CompoNet for seamless integration in automation systems
Applications
• Suitable for high-speed packaging machinery
• Effective in detection tasks within the electronics and automotive industries
• Utilised for precision measurement in quality control processes
What kind of connection options does this sensor support?
How does Smart Tuning enhance setup efficiency?
What are the operating conditions for this device?
Can it detect small objects reliably?
What are the power requirements for this sensor?
| Brand | Omron |
| Terminal Type | Pre-Wired |
| Response Time | 1 (Standard Mode) ms, 16 (Giga Power Mode) ms, 250 (High Speed Mode) μs, 30 (Super High Speed Mode) μs |
| Supply Voltage | 10 → 30 V dc |
| Output Type | NPN |
| Light Source | Red LED |
| Housing Material | Polycarbonate |
| Length | 71.8 mm (2.83 in) |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Dimensions | 104.8 x 33.5 x 10 mm (4.13×1.32×0.394 in) |
| Electrical Connection | Pre-Wired Cable |
| Power Consumption | 840 mW @ 35 mA |
| Width | 10 mm (0.394 in) |
| Depth | 10 mm (0.394 in) |
| Switching Frequency | 50 Hz, 60 Hz |
| Interface | CC-Link, CompoNet, EthernetCAT |
| Mounting Type | DIN Rail |
| Standards Met | CE, IEC 60947-1 |
