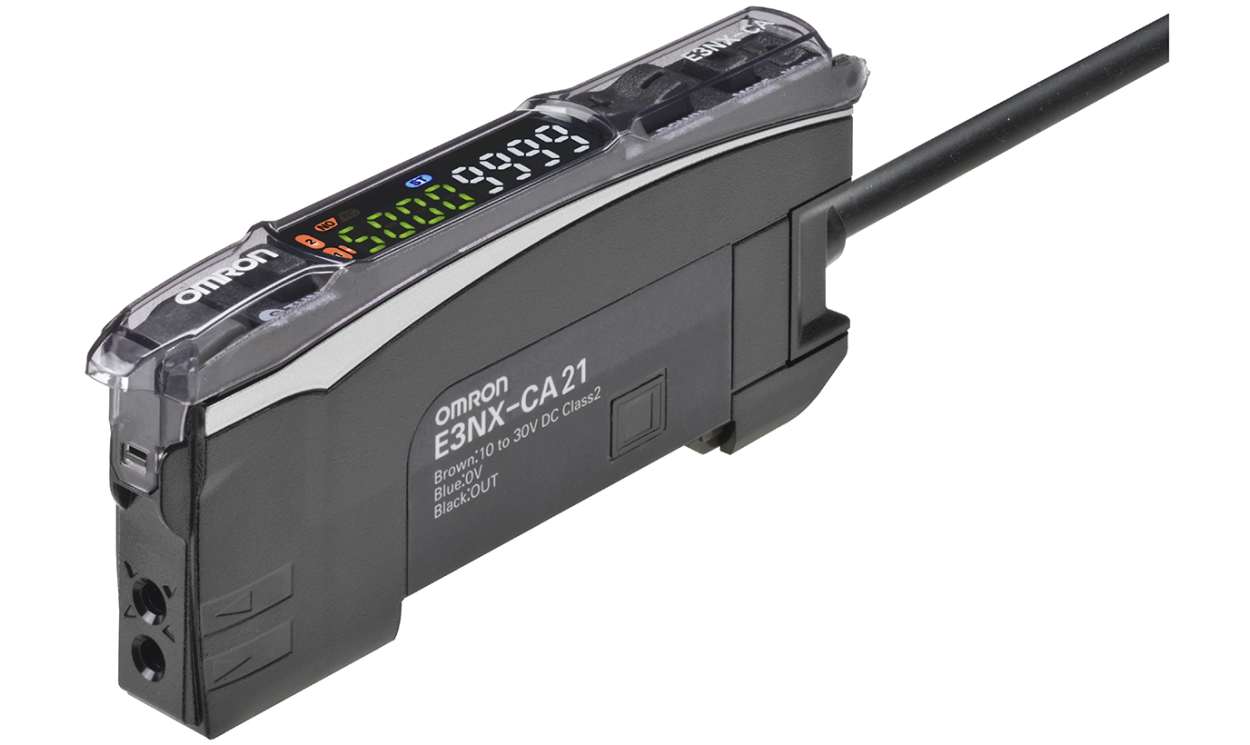

OMRON E3NX-CA21 2M | IO-Link Fibre Amplifier | NPN, White LED, IP20
Featuring a white LED and IO-Link, the E3NX-CA21 2M is an OMRON fibre amplifier with NPN output on a pre-wired cable. The PC housing is rated IP20 and measures 104.8 x 33.5 x 10 mm.
- NPN output with IO-Link
- Four response modes from 50 µs to 16 ms
- 10 to 30 V DC supply, 1.08 W
- DIN rail mounting
- Standards: CE, IEC 60947-1, UL
- Detailed Description
- Specifications
- Downloads
E3NX-CA Series Colour Mark Fibre Amplifiers
Features and Benefits
• The amplifier is able to handle glossy workpieces and colourful packaging offering stable detection on items previously troublesome for conventional systems.
• Reduces the number of troubleshooting requests.
• Users can automatically adjust the optimum incident level and intensity using a button.
• Advanced smart tuning, consistent for all users.
• The amplifier detects all RGB wavelengths included in light reflected from the workpiece, and RGB data can be displayed on the unit.
• IoT compatible.
• S/N ratio improved four times.
• Maintenance signal output to reduce downtime.
| Brand | Omron |
| IP Rating | IP20 |
| Terminal Type | Pre-Wired |
| Response Time | 1 (Standard Mode) ms, 16 (Giga-Power Mode) ms, 250 (High Speed Mode) μs, 50 (Super High Speed Mode) μs |
| Supply Voltage | 10 → 30 V dc |
| Output Type | NPN |
| Light Source | White LED |
| Housing Material | PC |
| Length | 104.8 mm (4.13 in) |
| Maximum Operating Temperature | +40 (30 Units)°C |
| Minimum Operating Temperature | -25 (30 Units)°C |
| Dimensions | 104.8 x 33.5 x 10 mm (4.13×1.32×0.394 in) |
| Electrical Connection | Pre-Wired Cable |
| Power Consumption | 1.08 W |
| Width | 33.5 mm (1.32 in) |
| Depth | 10 mm (0.394 in) |
| Interface | IO-Link |
| Mounting Type | DIN Rail |
| Standards Met | CE, IEC 60947-1, UL Certified |
| Communication Protocol | IO-LINK |
