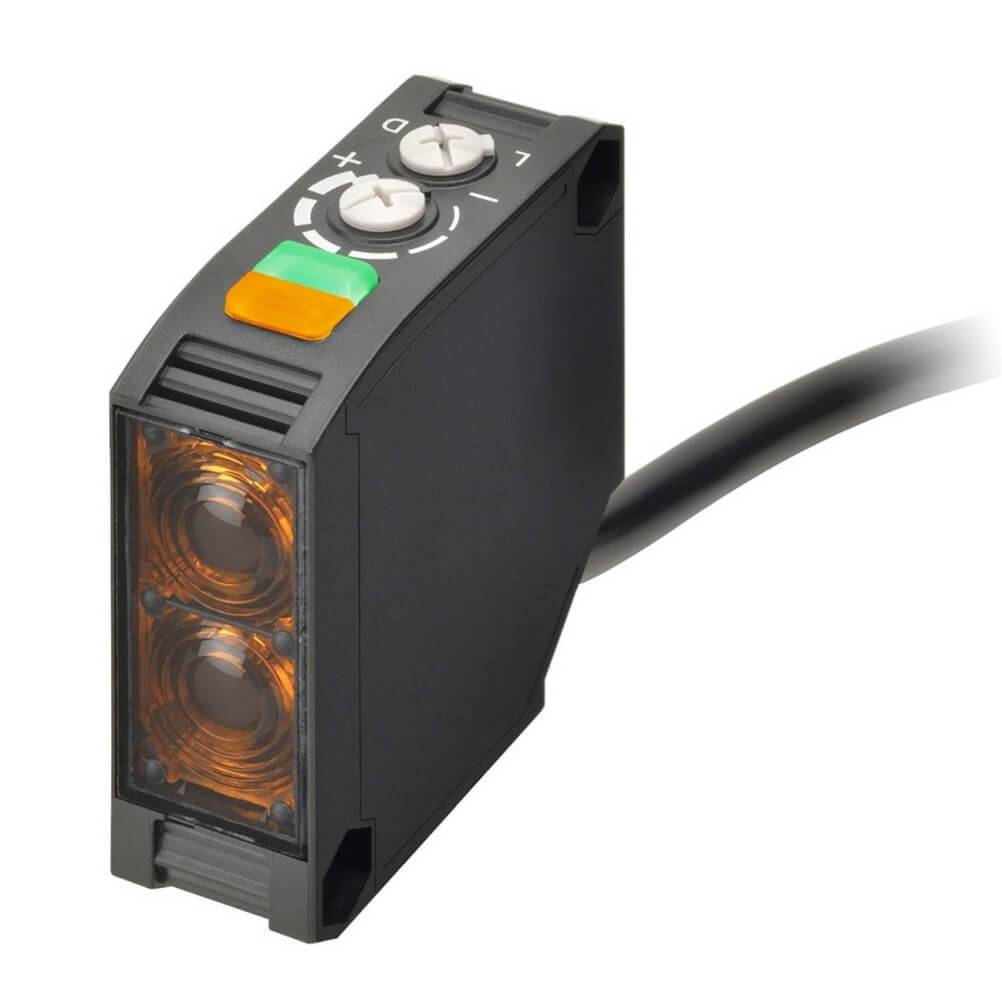

Omron E3JK-DR12 2M, Diffuse Photoelectric Sensor, Block Sensor, 300 mm Detection Range

Name: Omron E3JK-DR12 2M, Diffuse Photoelectric Sensor, Block Sensor, 300 mm Detection Range
Brand: OMRON
SKU: E3JK-DR12 2M
Availability: OutOfStock

Part Number : E3JK-DR12 2M

Photoelectric sensor, square body, red LED, diffuse, 300mm, AC/DC, relay, L-ON/D-ON selectable, 2m cable

Availability: Sold out

Detailed Description
Specifications
Features

Omron E3JK Series Photoelectric Sensor, 300mm Detection Range, IP64 - E3JK-DR12 2M

This photoelectric sensor is designed for automation in a variety of industrial settings. With a detection range of 300mm and an IP64 rating, it operates reliably in demanding conditions. Featuring a 5-wire cable that extends 2m, it offers versatility for applications in both electrical and mechanical sectors.

Features & Benefits

• Detection range of 300mm for efficient performance
• Relay output facilitates integration into control systems
• Red LED light source enhances visibility and detection
• IP64 rating provides protection against dust and moisture
• Operating temperature range from -25 to +55°C
• Quick response time of 20ms

Applications

• Suitable for elevator cage detection systems
• Utilised in agricultural produce conveyor
• Effective for workpiece detection in woodworking machinery
• Ideal for identifying protruding packages in storage areas

Can it operate effectively in extreme temperatures?

Yes, it functions within the range of -25°C to +55°C.

Will it be able to detect small objects at a short distance?

Yes, it is capable of detecting objects within a 300mm range.

Is it suitable for outdoor environments?

No, it is not recommended for outdoor use due to its specifications.

Can it be integrated with various power supply types?

Yes, it supports AC/DC power supplies ranging from 24 to 240V.

Is it easy to install?

Yes, it comes with a standard 2m cable for straightforward installation.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	300 mm
Output Type	Relay
Electrical Connection	5 Wire Cable 2 m
Maximum AC Voltage	240V
Maximum DC Voltage	240V
Terminal Type	Wire Lead
Light Source	Red LED
IP Rating	IP64
Response Time	20 ms
Housing Material	ABS
Minimum Operating Temperature	-25°C
Series	E3JK
Maximum Operating Temperature	+55°C

Photoelectric sensor, square body, red LED, diffuse, 300mm, AC/DC, relay, L-ON/D-ON selectable, 2m cable
