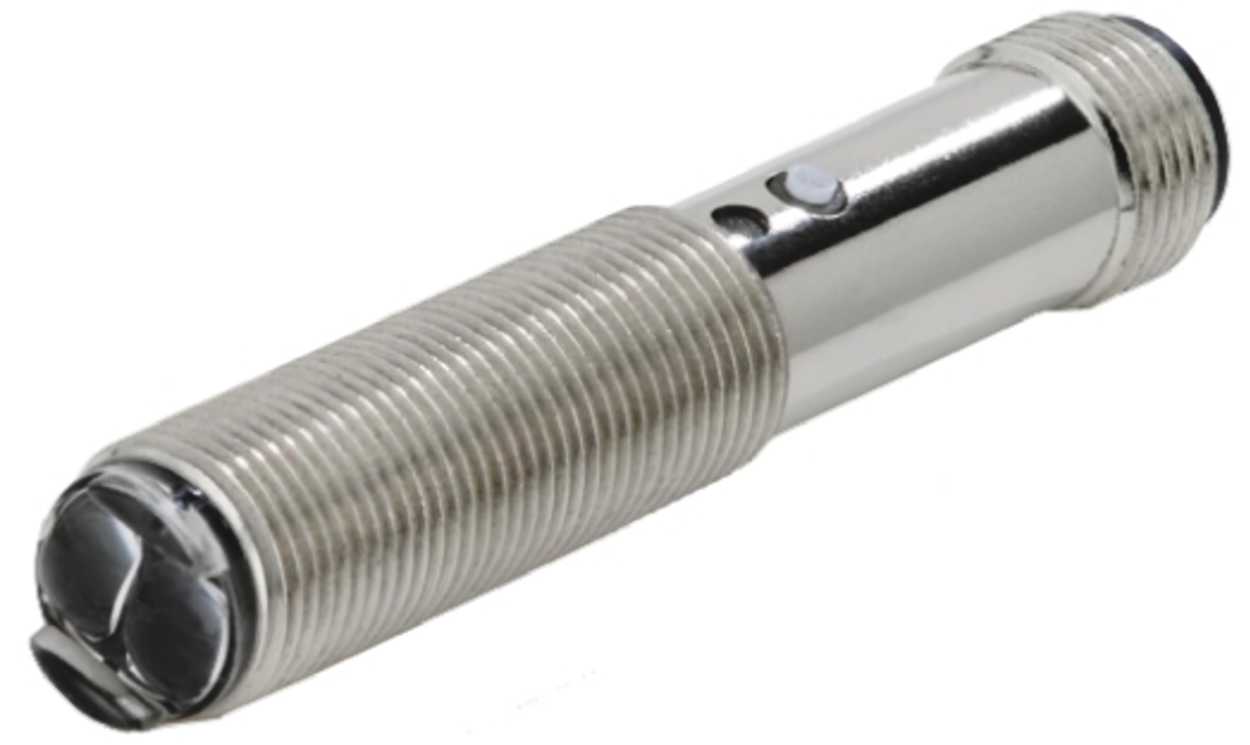

OMRON E3H2-T4B4M-M1 | Through-Beam Photoelectric Sensor | 4 m, PNP, M12 Connector
OMRON E3H2-T4B4M-M1: a barrel-style through-beam photoelectric sensor covering 4 m, switching via PNP output. Electrical connection is by an M12 connector and it has a nickel-plated brass housing. Within OMRON's range, the E3H2-T4B4M-M1 is listed under the E3H2 series.
- Light source: infrared
- Maximum voltage: 30 V DC
- Current rating up to 100 mA
- Response time: 2.5 ms
- Protection rating: IP67
- Operating temperature: -25°C to +55°C
- Detailed Description
- Specifications
- Downloads
E3H2 Miniature Sensors
Reverse polarity and short-circuit protection
Maximum switching current: 45 mA
Operating temperature range: -20 → +55 °C
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing
| Brand | Omron |
| Series | E3H2 |
| Detection Type | Through Beam |
| Detection Range | 4 m (13.1 ft) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | M12 Connector |
| Light Source | Infrared |
| Response Time | 2.5 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Nickel Plated Brass |
| Maximum Operating Temperature | +55 °C (131 °F) |
