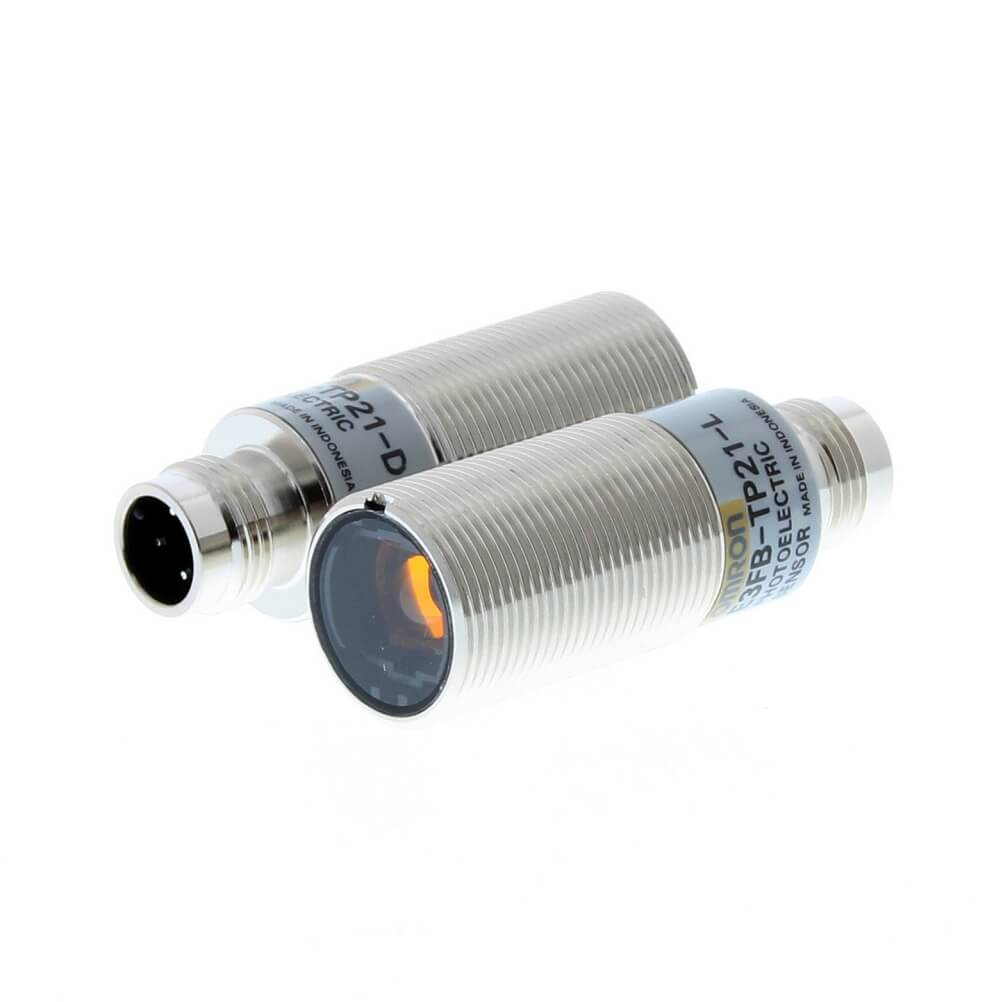

Omron E3FB-TP21, Through Beam Photoelectric Sensor, Barrel Sensor, 20 m Detection Range

Name: Omron E3FB-TP21, Through Beam Photoelectric Sensor, Barrel Sensor, 20 m Detection Range
Brand: OMRON
SKU: E3FB-TP21
Availability: OutOfStock

Part Number : E3FB-TP21

Photoelectric sensor, M18 axial, metal body, red LED, through-beam, 20m, PNP, L-ON/D-ON selectable, M12 connector

Availability: Sold out

Detailed Description
Specifications
Features

Omron E3F Series Photoelectric Sensor, 20m Detection Range, IP67 - E3FBTP21

This photoelectric sensor from Omron is a robust barrel type, designed for reliable performance across various industrial applications. With a detection range of up to 20 m and a PNP output configuration, this sensor excels in environments where precision and durability are paramount. Suitable for high-pressure cleaning, its IP67 and IP69K ratings ensure protection against dust and water ingress.

Features & Benefits

• Compact design allows for installation in tight spaces
• High detection range enhances application versatility
• PNP output configuration facilitates easy integration
• LED light source improves visibility for alignment
• IP67 and IP69K ratings ensure durability in harsh conditions
• Quick installation and user-friendly adjustments streamline setup

Applications

• Ideal for conveyor systems in the logistics industry
• Used for object detection in food and beverage production
• Applicable in textile and ceramics manufacturing environments
• Suitable for integration into packaging machinery
• Effectively monitors product flow in automated systems

What power supply specifications does this device require?

It requires a DC voltage supply between 10 to 30 V, allowing for standard industrial power inputs.

How quickly does it respond to changes in the environment?

The response time is 500 μs, ensuring swift detection and processing of objects within its range.

What installation methods are available for this sensor?

It can be installed using an M12 connector, which simplifies wiring and connection to control systems.

Can this sensor operate in extreme temperatures?

Yes, it is designed to operate in a temperature range of -25°C to +55°C, making it suitable for diverse settings.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Through Beam
Detection Range	20 m
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	40 mA
Response Time	500 μs
Series	E3F
Maximum Operating Temperature	+55°C
Housing Material	Nickel Plated Brass
Minimum Operating Temperature	-25°C
Standards Met	CE Certified

Photoelectric sensor, M18 axial, metal body, red LED, through-beam, 20m, PNP, L-ON/D-ON selectable, M12 connector
