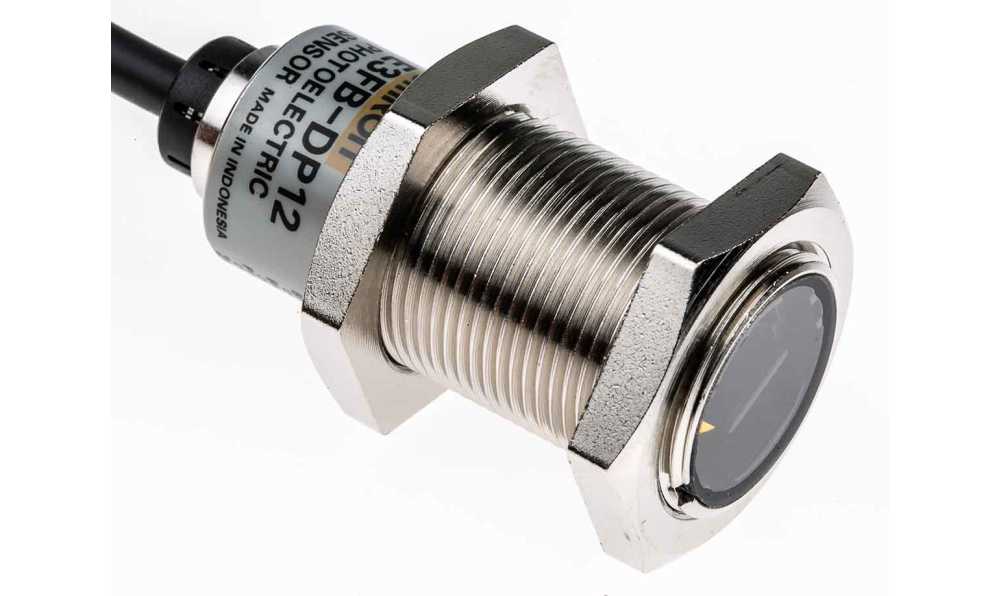

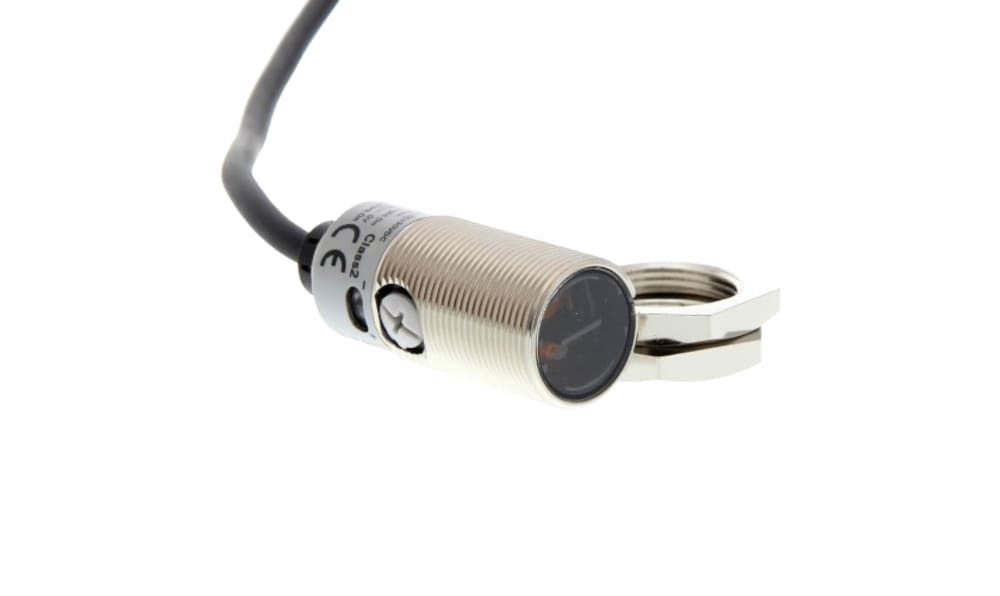

Name: Omron E3FB-DP12 2M, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range
Brand: OMRON
SKU: E3FB-DP12 2M
Availability: OutOfStock

Omron E3FB-DP12 2M, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3FB-DP12 2M, Diffuse Photoelectric Sensor, Barrel Sensor, 300 mm Detection Range

Part Number : E3FB-DP12 2M

Availability: Sold out

Detailed Description
Specifications

Omron E3FB Series Photoelectric Sensor, 300mm Detection Range, PNP Output Type - E3FBDP122M

This photoelectric sensor is a barrel-style device designed for effective diffuse detection in various industrial settings. With a detection range of up to 300mm, it is perfect for applications requiring precise sensing. This compact sensor is constructed from nickel-plated brass, ensuring durability and resistance to environmental elements rated at IP67 and IP69K.

Features & Benefits

• Offers a 300mm detection range for diverse usage
• PNP output enables compatibility with various control systems
• High-performance LED light source ensures reliable operation

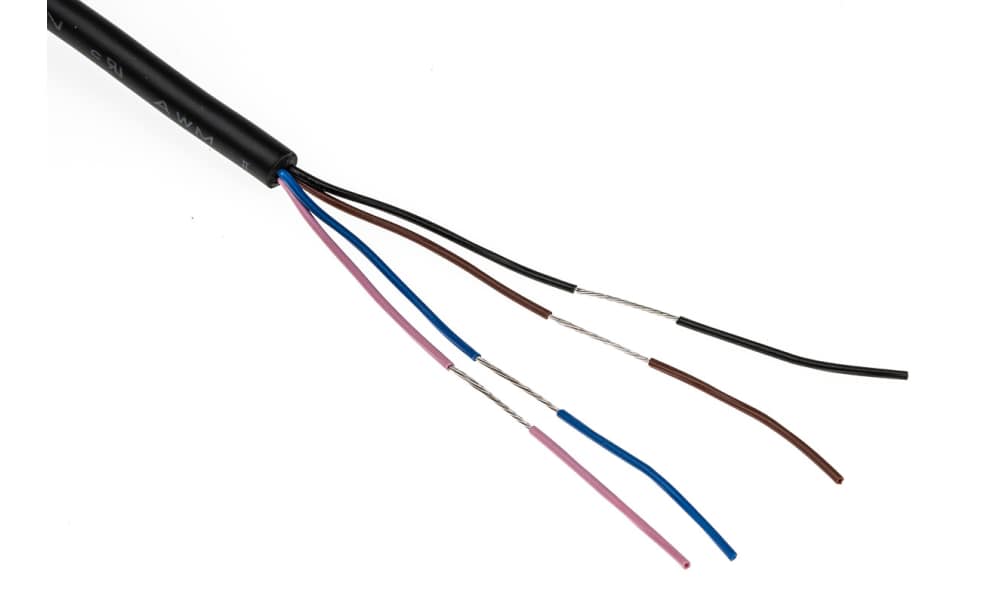

• Quick installation with a simple 4-wire cable connection

Applications

• Ideal for sensing in food and beverage processing environments
• Utilised in logistics for accurate object detection
• Used in textiles and ceramics for reliable measurements
• Perfect for monitoring in high-pressure cleaning situations
• An effective solution for transparent object detection tasks

What is the significance of the PNP output in this sensor?

The PNP output allows easy integration with automation systems by providing a high signal when activated, making it suitable for various industrial control applications.

How does this sensor perform in high-temperature environments?

With a maximum operating temperature of +55°C, it maintains functionality and performance even in elevated heat conditions typical in many industrial processes.

How resistant is this sensor to environmental factors?

It features an IP67 and IP69K rating, ensuring it is protected against dust and high-pressure water jets, making it reliable in harsh conditions.

Can this sensor detect transparent objects effectively?

Yes, it is specifically designed to detect transparent objects, utilising advanced reflection methods to ensure reliable performance in various settings.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	300 mm
Output Type	PNP

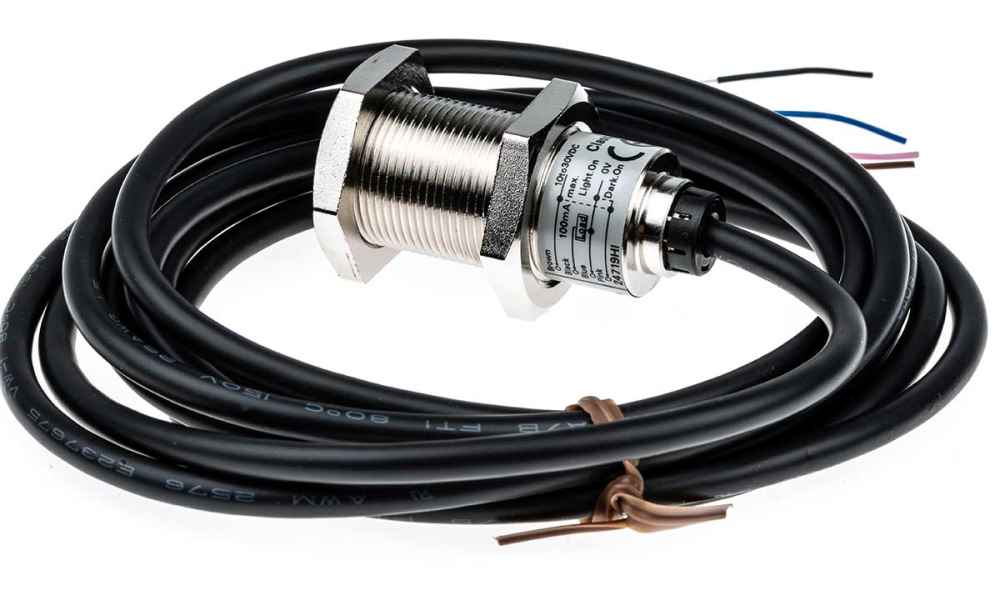

Electrical Connection	4 Wire Cable 2 m
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Maximum Operating Temperature	+55°C
Series	E3FB
Housing Material	Nickel Plated Brass
Minimum Operating Temperature	-25°C
