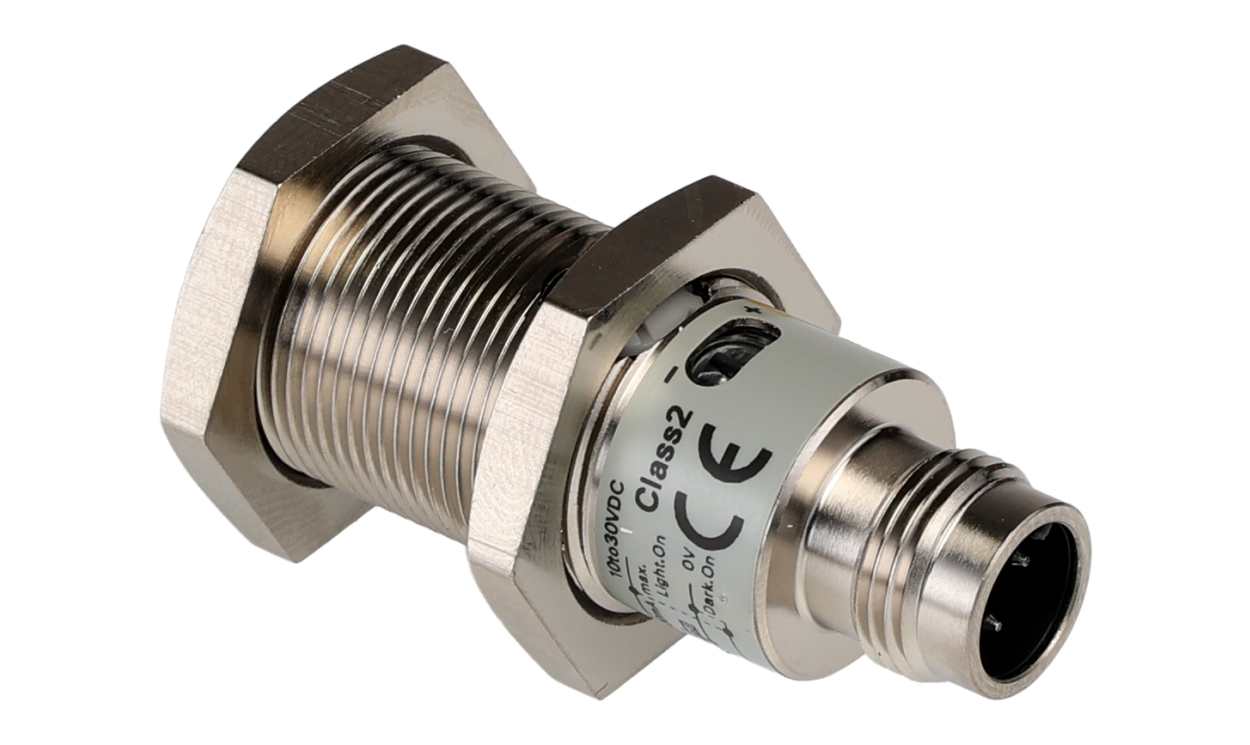

Omron E3FB-BP22, Clear Object Detection Photoelectric Sensor, Barrel Sensor, 100 mm → 2 m Detection Range

Name: Omron E3FB-BP22, Clear Object Detection Photoelectric Sensor, Barrel Sensor, 100 mm → 2 m Detection Range
Brand: OMRON
SKU: E3FB-BP22
Availability: OutOfStock

Part Number : E3FB-BP22

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E3F Series Photoelectric Sensor, 100mm to 2m Detection Range, PNP Output - E3FBBP22

This photoelectric sensor is a compact and robust device designed for high-performance sensing. Ideal for various industrial applications, it operates effectively across a detection range of 100mm to 2m. With an IP67 and IP69K rating, it ensures reliable performance even in challenging environments, making it an essential component for automation systems.

Features & Benefits

• High responsiveness with a 500μs response time ensures quick detection
• PNP output configuration supports flexible connectivity options
• Equipped with LED technology for reliable visual indication
• Durable nickel-plated brass housing withstands harsh conditions
• Operates within a wide temperature range of -25°C to +55°C
• M12 connector facilitates straightforward installation and integration

Applications

• Utilised in the food and beverage industry for packaging detection
• Effective for object counting in logistics operations
• Suitable for material handling in textile and ceramics production
• Implemented in automated systems requiring precise distance measurements

What kind of objects can be effectively detected using this sensor?

This device is designed for clear object detection, including transparent and reflective materials, optimising its versatility for various applications.

How does the IP67 rating impact the sensor's functionality?

The IP67 rating indicates that the sensor is dust-tight and can withstand submersion in water up to 1 metre for a limited time, ensuring reliable operation in harsh environments.

What electrical connections are compatible with this model?

It supports M12 4 pin connectors, simplifying integration into existing industrial systems while ensuring a secure electrical connection.

E3F2 Series Barrel

Output can be configured by wiring either ’light ON’ or ’dark ON’
Built in amplifier
Short circuit and reverse polarity protection
M18 DIN size cylindrical housing

Brand	Omron
Sensor Style	Barrel
Detection Type	Clear Object Detection
Detection Range	100 mm → 2 m
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67, IP69K
Maximum Current	25 mA
Response Time	500 μs
Maximum Operating Temperature	+55°C
Series	E3F
Minimum Operating Temperature	-25°C
Housing Material	Nickel Plated Brass

Omron E3FB-BP22, Clear Object Detection Photoelectric Sensor, Barrel Sensor, 100 mm → 2 m Detection Range

DOWNLOAD CATALOG

E3FB-BP22 Brochure - E3FA Photoelectric Sensors A700000014360464

E3FB-BP22 Instruction Sheet - E3FBBP22 A700000014360508
