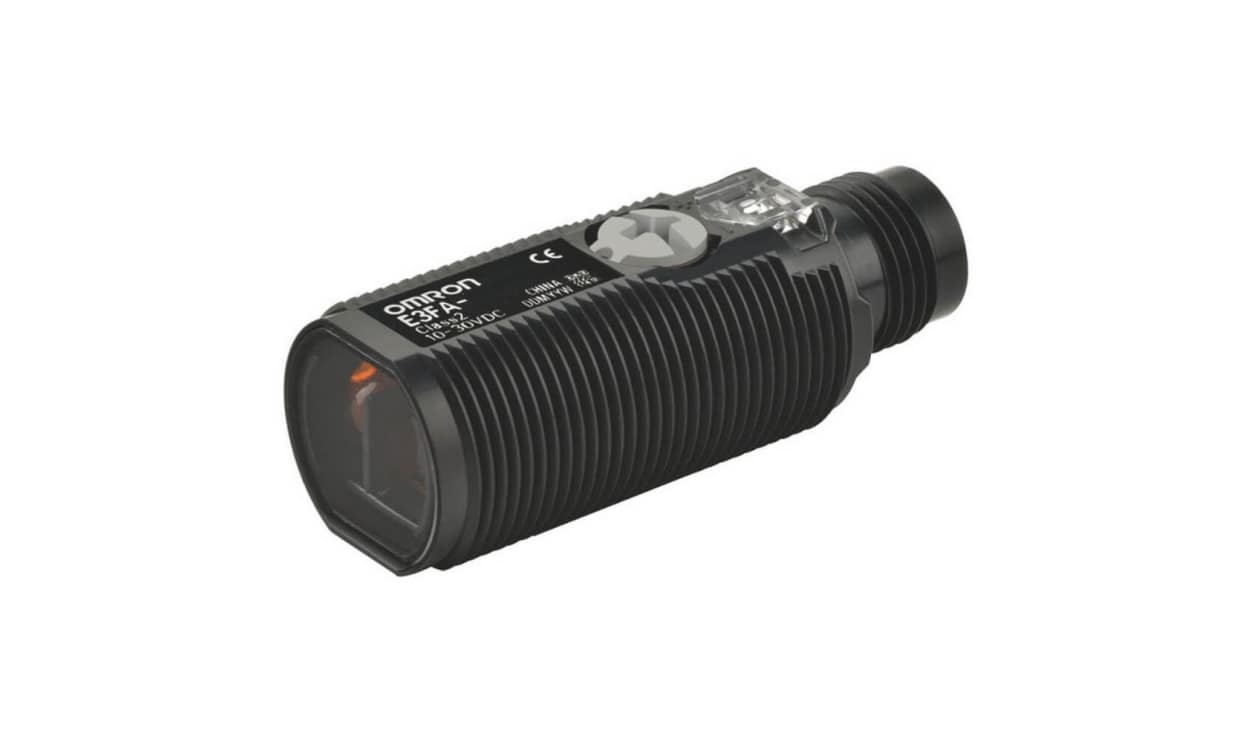

OMRON E3FA-DP26 | Polarised Retroreflective Photoelectric Sensor | M18, 1 m, PNP
Covering a detection range of 1 m, the OMRON E3FA-DP26 is a barrel polarised retroreflective photoelectric sensor with a PNP output. The 1 m model connects through an M12 connector. The E3FA-DP26 is rated IP67 and IP69K, operates from -25 to +55 °C and has an ABS housing. Listed electrical data include an infrared LED light source, a 0.5 ms response time, a 30V DC maximum voltage and 25 mA maximum current.
- 1 m detection range
- Output: PNP with light/dark switching
- M12 connector
- Ingress protection: IP67 and IP69K
- Works from -25 to +55 °C
- Light source: infrared LED
- Detailed Description
- Specifications
- Downloads
Omron E3FA Series Photoelectric Sensor, 1m Detection Range, IP67/IP69K - E3FA-DP26
Features & Benefits
• Durable ABS housing endures harsh operating environments
• Wide operating temperature range of -25°C to +55°C accommodates diverse applications
• Connector M12 ensures simple installation and connectivity
Applications
• Integrated into packaging machinery to oversee product flow
• Implemented in material handling systems to improve safety
• Suitable for quality control processes in manufacturing settings
What type of electrical connection does it require for installation?
How does it handle varying light conditions?
Is it compatible with different control systems?
What materials can be detected using this sensor?
| Brand | Omron |
| Series | E3FA |
| Detection Type | Polarised Retro Reflection |
| Detection Range | 1 m (3.28 ft) |
| Sensor Style | Barrel |
| Output Type | PNP |
| Electrical Connection | Connector M12 |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared LED |
| Response Time | 0.5 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP67/IP69K |
| Maximum Current | 25 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | ABS |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Thread Size | M18 |
