Omron E32-TC200 2M, Plastic Fibre Optic Sensor 1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode)

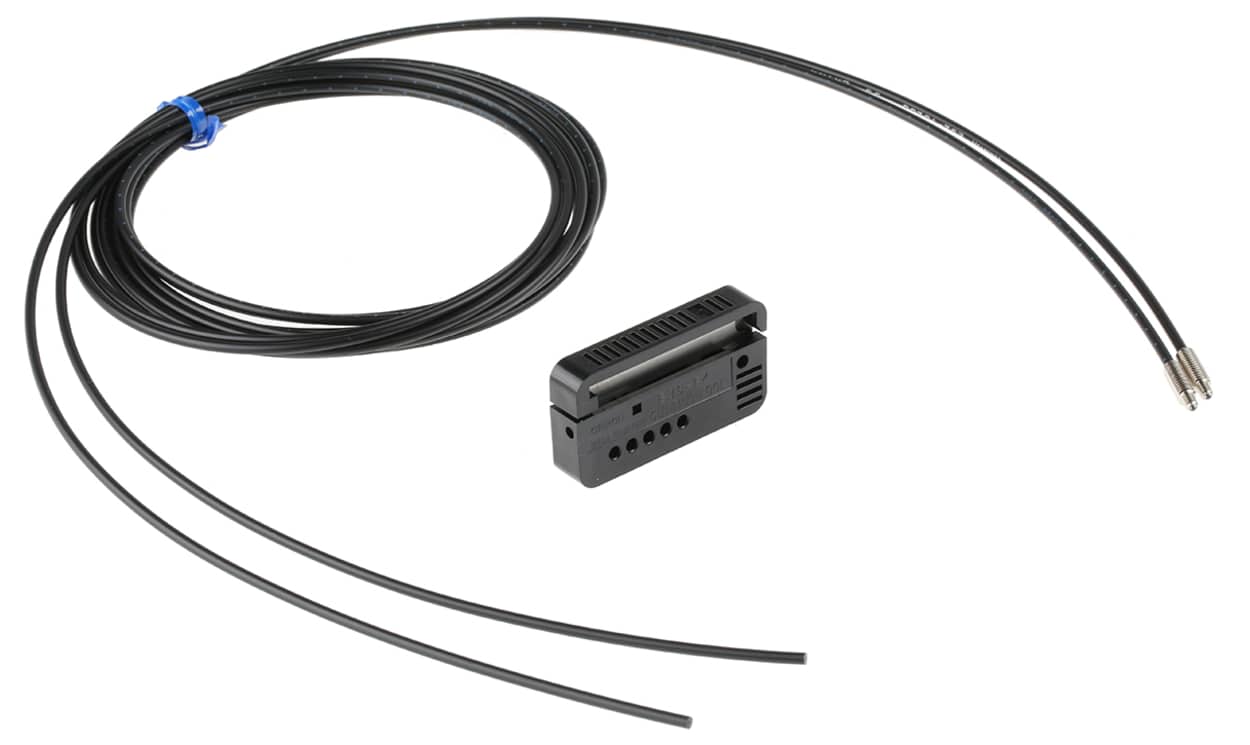

Name: Omron E32-TC200 2M, Plastic Fibre Optic Sensor 1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode)
Brand: OMRON
SKU: E32-TC200 2M
Availability: OutOfStock

Part Number : E32-TC200 2M

Fiber optic sensor, through-beam, M4, 2m cable

Availability: Sold out

Detailed Description
Specifications
Features

E32 Series Fibre Optic Sensing Heads

Various formats for a wide range of applications. IP67 (IP50 E32-L25)
All fibres are 2m long black PE.
Permissable bend radius 25mm min.
Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber

OMRON Fibre Optic Sensor, M4 Sensor Head, Through-Beam Sensing - E32 Series - E32TC200

With this fibre optic sensor from OMRON on duty, no object goes unseen. Its small M4 head size makes it just what you need for detecting miniature workpieces, such as components in plastic manufacturing plants. Thanks to its through-beam sensing method, you can rest assured of its accuracy over an extended detection range of 2.3m. A cable length of 2m gives you room to move during setup. For flexibility, the cable has a bending radius of 25mm, so you can turn it around corners or fit it into constricted spaces.

Features & Benefits

• IP67-rated housing is dust-tight and protected against immersion in up to 1.5m of water for 30 minutes
• PE jacket resists abrasion and wear to deliver an extended lifespan in harsh industrial settings
• Does its job without a glitch in a broad operating temperature range between -40°C and +70°C

Applications

• Consumer electronics
• FMCG manufacturing
• Automotive industry
• Food and beverage packaging

Is this fibre optic sensor insulated?

Yes, the product's PE cable jacket offers insulation to minimise the risk of electric shocks.

Brand	Omron
Detection Range	1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode) mm, 760 (Standard Mode) mm
Fibre Optic Type	Plastic
Terminal Type	Wire Lead
Light Source	Red LED
Electrical Connection	Cable
IP Rating	IP67
Housing Material	PE
Supply Voltage	12 → 24 V dc
Length	14mm
Maximum Operating Temperature	+70°C
Standards Met	CE
Minimum Operating Temperature	-40°C
Dimensions	14 x M4 mm

Fiber optic sensor, through-beam, M4, 2m cable
