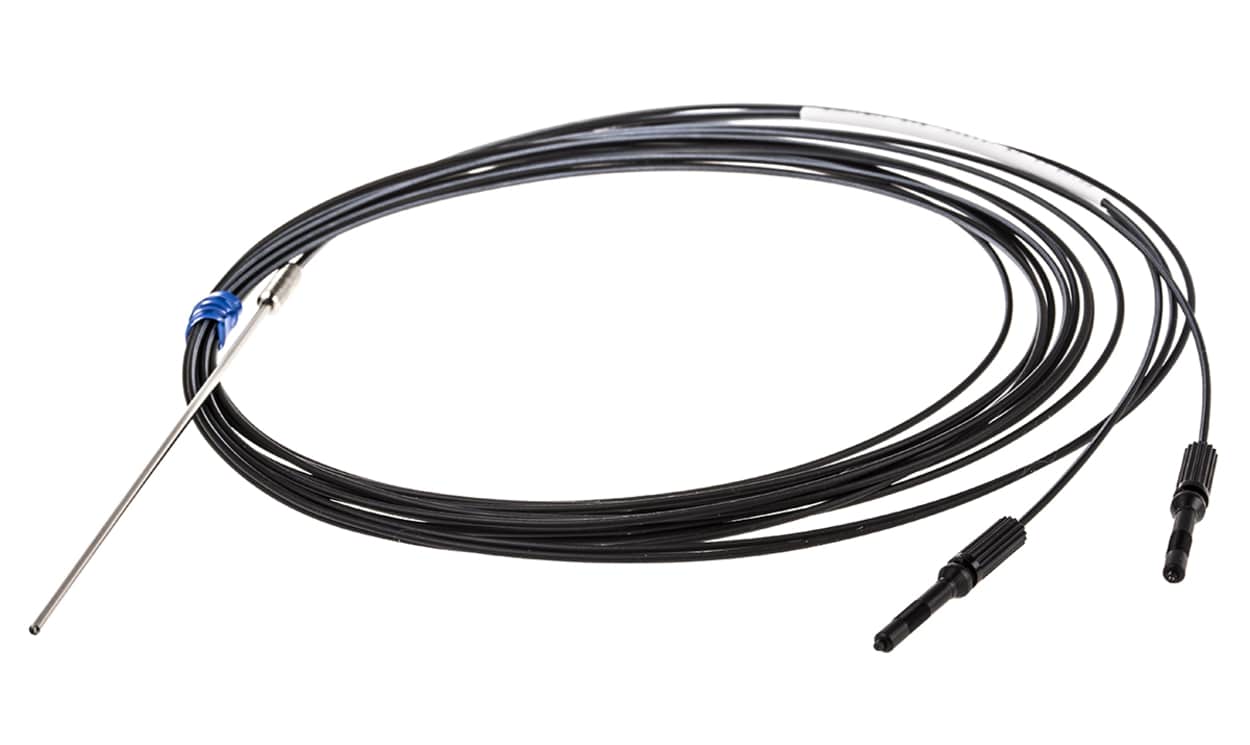

OMRON E32-DC200F | Plastic Fibre Optic Sensor | M3, 22 to 130 mm by Mode, IP67
OMRON's E32-DC200F reaches a listed 130 mm in high-resolution mode, 80 mm in standard mode and 22 mm in super-high-speed mode. It is a plastic fibre optic sensor on an M3 thread with an 11 mm PE body.
- Detection range: 130 mm (high resolution), 80 mm (standard), 22 mm (super high speed)
- Plastic fibre
- Wire-lead terminal, cable connection
- M3 thread, 11 mm length, PE housing
- IP67
- -40 to +70 °C operating temperature
- Detailed Description
- Specifications
- Downloads
E32 Series Fibre Optic Sensing Heads
All fibres are 2m long black PE.
Permissable bend radius 25mm min.
Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber




| Brand | Omron |
| Detection Range | 130 (High Resolution Mode) mm, 22 (Super High Speed Mode) mm, 80 (Standard Mode) mm |
| IP Rating | IP67 |
| Terminal Type | Wire Lead |
| Fibre Optic Type | Plastic |
| Housing Material | PE |
| Length | 11 mm (0.433 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Dimensions | 11 x M3 x 0.5 mm |
| Electrical Connection | Cable |
