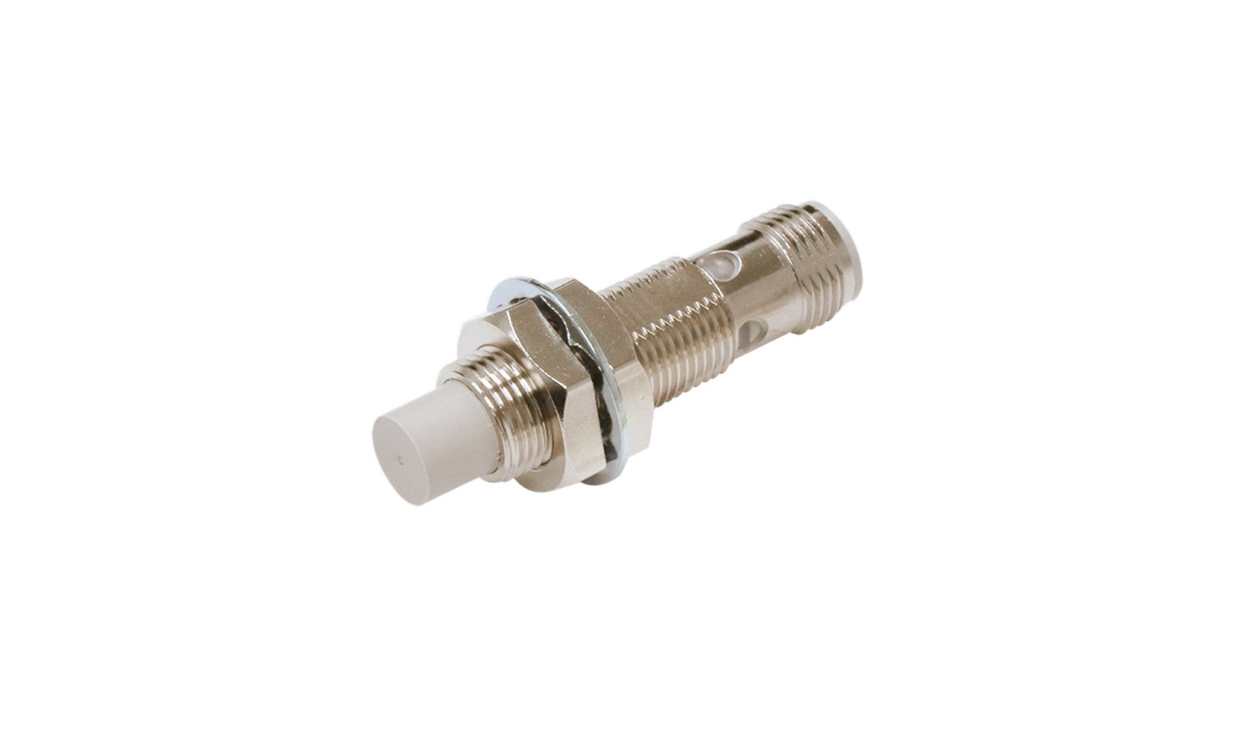

OMRON E2E-X8MB1T12-M1 | M12 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector

Name: OMRON E2E-X8MB1T12-M1 | M12 Inductive Proximity Sensor | 8 mm Range, PNP NO, M12 Connector
Brand: OMRON
SKU: E2E-X8MB1T12-M1
Availability: OutOfStock

Part Number : E2E-X8MB1T12-M1

With an M12 connector and a PNP normally open (NO) output, the OMRON E2E-X8MB1T12-M1 is an inductive sensor that detects targets at up to 8 mm from an M12 threaded barrel. Power the E2E-X8MB1T12-M1 from 10 to 30 V DC; ingress protection is IP67, IP69K and the body is 48 mm long.

Non-flush mounting
Housing material: nickel-plated brass
Short-circuit, overload and reverse-polarity protection
OMRON E2E-NEXT series
Minimum operating temperature: -25 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 8mm Sensing Distance, Non-Flush Mount - E2E-X8MB1T12-M1

This Omron E2E-NEXT Proximity Sensor is an inductive sensor with an 8mm detection range and a compact barrel design (48mm length, 12mm width). It features IP67 and IP69K waterproof ratings, ensuring reliable performance in harsh industrial environments.

Features & Benefits

• Inductive sensing for precise detection
• PNP output for easy integration
• IO-Link compatibility for enhanced communication
• Durable brass housing with corrosion resistance
• Short circuit and overload protection
• Wide supply voltage range of 10-30V DC

Applications

• Positioning in automated systems
• Metal object detection in manufacturing
• Packaging and assembly line equipment
• Robotics for non-contact sensing
• Automotive assembly processes

Can it operate in extreme temperatures?

Yes, it functions between -25°C and +70°C.

Will it handle reverse polarity situations?

Yes, it includes reverse polarity protection.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	48mm
IP Rating	IP67, IP69K
Mounting Type	Non-Flush
Housing Material	Brass Nickel Plated
Width	12mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	17mm
Short Circuit Overload Protection	Yes
Series	E2E-NEXT
Reverse Polarity Protection	Yes
