OMRON E2E-X4B1TL12-M1 | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO

Name: OMRON E2E-X4B1TL12-M1 | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X4B1TL12-M1
Availability: OutOfStock

Part Number : E2E-X4B1TL12-M1

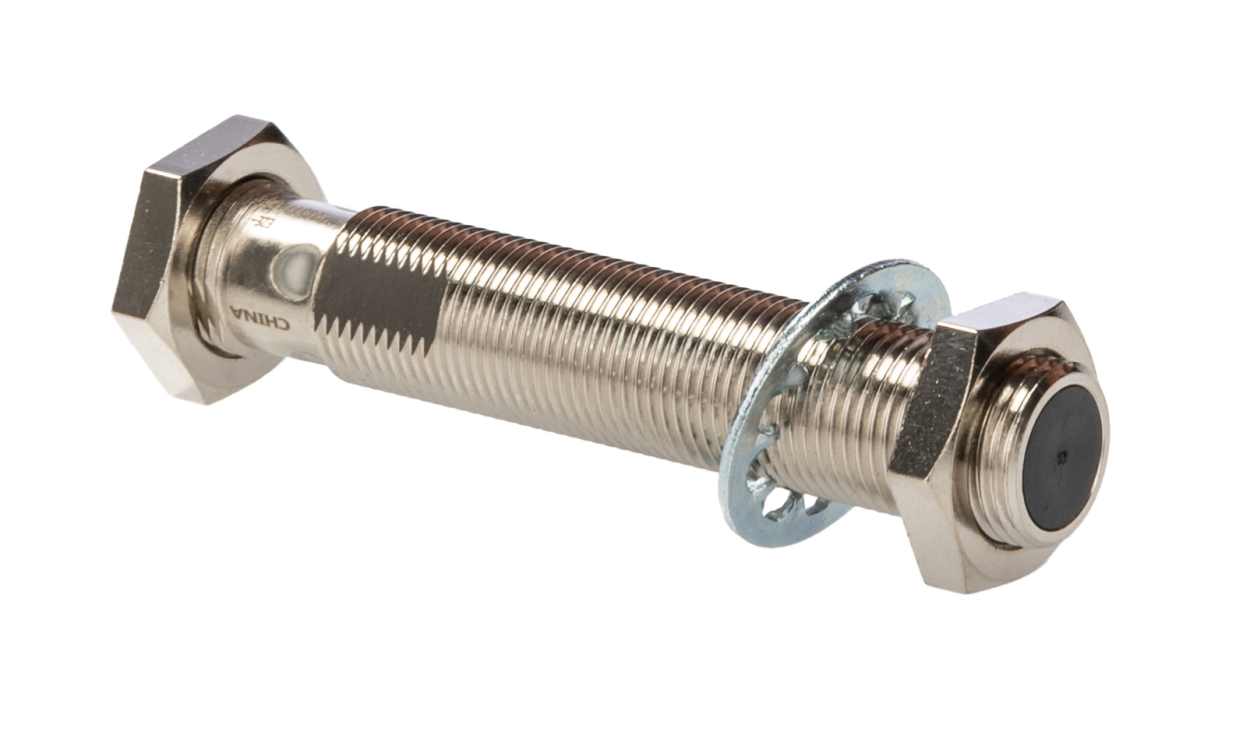

OMRON's E2E-X4B1TL12-M1 is an M12 inductive proximity sensor offering a PNP normally open (NO) output, a 4 mm detection range, an M12 connector and 10 to 30 V DC operation. Its brass body is 69.1 mm long.

Detection range: 4 mm, quasi-flush mounting (shielded)
Output: PNP NO
Supply voltage: 10 to 30 V DC
Connection: M12 connector
Switching frequency 1 kHz
Rated IP67, IP67G, IP69K

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, NO Output Function, IP67/IP67G/IP69K - E2E-X4B1TL12-M1

This proximity sensor is equipped with advanced detection capabilities, designed for automation in industrial settings. Utilising inductive technology, it effectively senses metal objects within a 4mm range. Its robust construction ensures durability and reliability. The IP67 rating provides protection against dust and moisture, making it suitable for various environments.

Features & Benefits

• Shielded design reduces interference in noisy environments
• Quasi-flush mounting allows for easy integration in tight spaces
• PNP output ensures compatibility with digital systems
• High-frequency operation facilitates quick response times
• Reverse polarity and short circuit protection enhance safety
• IO-Link compatibility supports advanced communication and monitoring

Applications

• Employed in automated assembly lines for precise positioning
• Suitable for detecting material presence in packaging machinery
• Integrated into conveyor systems to monitor object movement
• Utilised in robotics for dependable object detection
• Ideal for scenarios requiring high-speed detection

What is the maximum voltage this component can handle?

It can operate with a maximum DC voltage of 30V.

How does it handle different environmental conditions?

The IP67 rating ensures protection against dust and water ingress.

What mounting options are available for this unit?

It features a quasi-flush mount design for versatile installation.

Can it be used with digital input devices?

Yes, the PNP output allows seamless integration with digital systems.

Is there protection against electrical faults?

Yes, it includes reverse polarity and short circuit overload protection.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	69.1mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Quasi-Flush
Housing Material	Brass
Width	12mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Depth	17mm
Maximum Switching Frequency	1kHz
Short Circuit Overload Protection	Yes
Shielding	Shielded
