OMRON E2E-X4B1T12-M1TJ 0.3M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO

Name: OMRON E2E-X4B1T12-M1TJ 0.3M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X4B1T12-M1TJ 0.3M
Availability: OutOfStock

Part Number : E2E-X4B1T12-M1TJ 0.3M

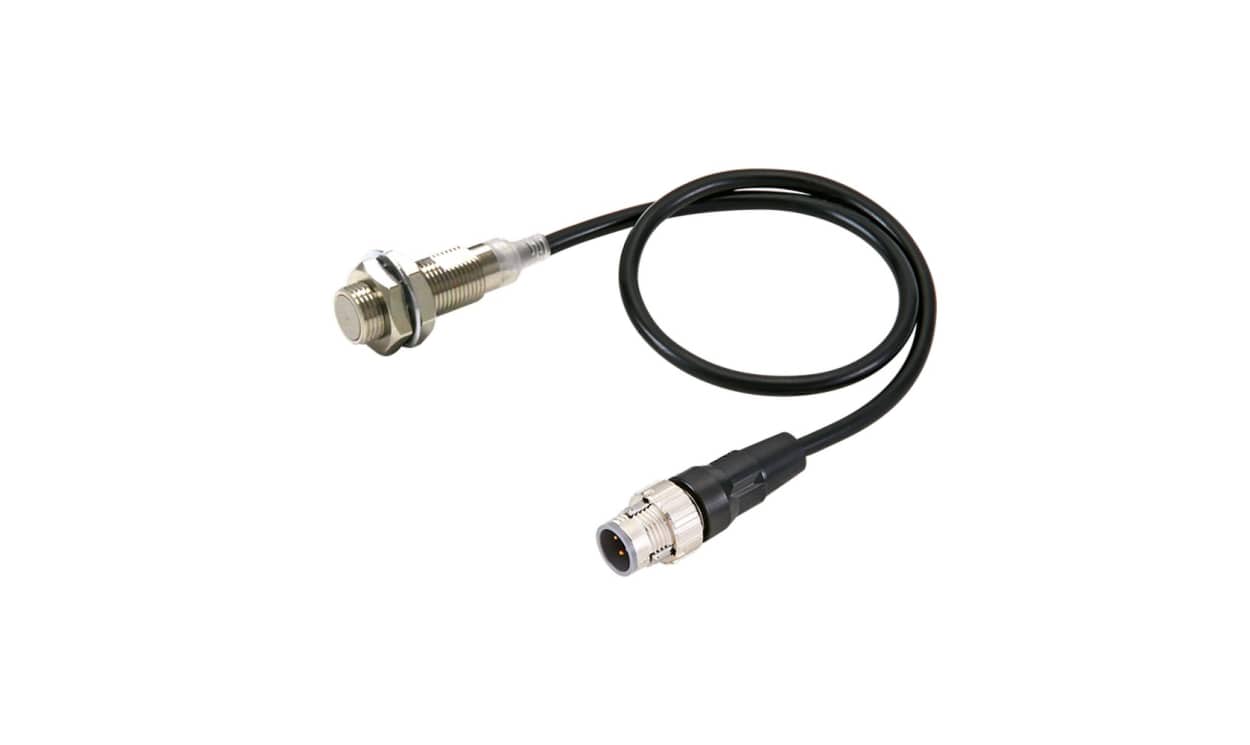

The M12 OMRON E2E-X4B1T12-M1TJ 0.3M inductive proximity sensor comes with a 0.3 m pre-wired cable, a PNP normally open (NO) output, 10 to 30 V DC operation and a 4 mm detection range.

4 mm detection range with quasi-flush mounting (shielded)
10 to 30 V DC supply
Connection: 0.3 m cable
Switching frequency 1 kHz, switching current 200 mA
Protection: IP67
Output: PNP NO

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron E2E NEXT series are proximity sensors, which enables easier and standardized designs which was previously not possible. It comes with the world's longest sensing distance functions nearly double the sensing distance of previous. With high-brightness LED, the indicator is visible anywhere from 360°. Comes in a wide variation to make sensor selection easy.

Operating temperature ranges between -25°C to +70°C

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	0.3m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	47mm
Mounting Type	Quasi-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switching Current	200 mA
Maximum Switching Frequency	1kHz
Switching Frequency	1 kHz
Shielding	Shielded

OMRON E2E-X4B1T12-M1TJ 0.3M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO

DOWNLOAD CATALOG

OMRON E2E-X4B1T12-M1TJ 0.3M | Inductive Proximity Sensor | M12, 4 mm Range, PNP NO
