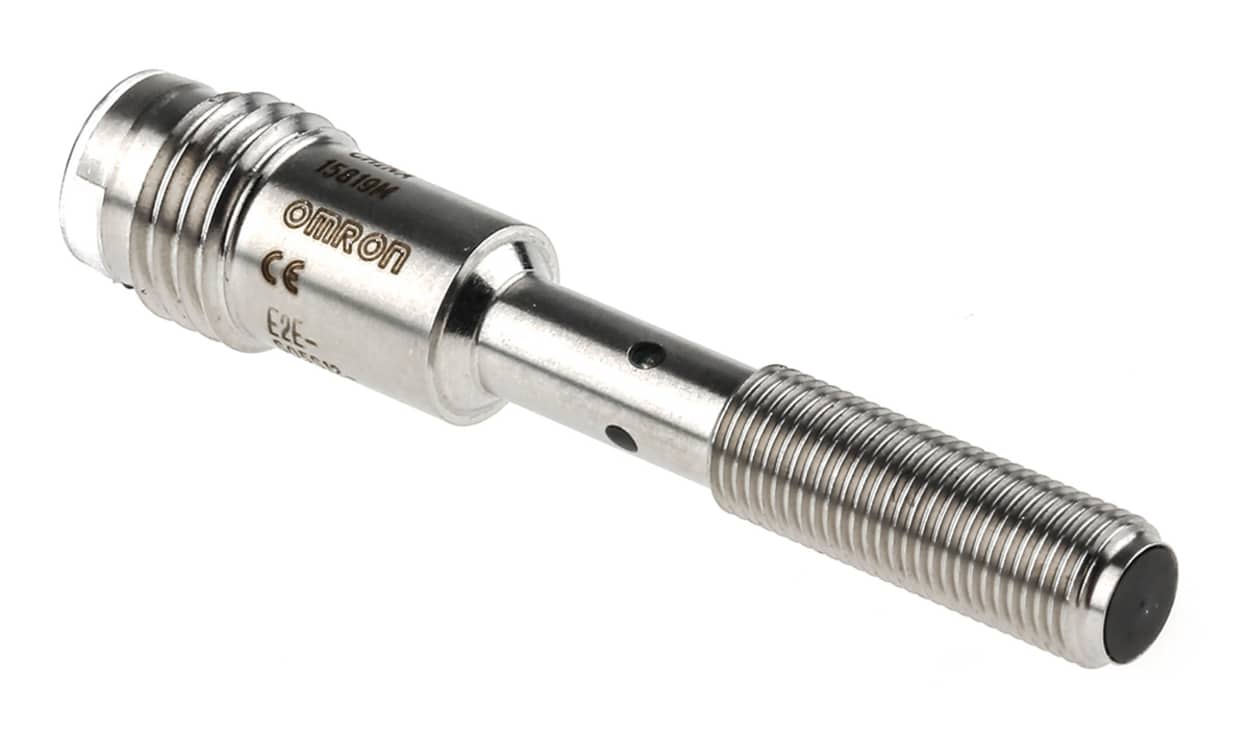

OMRON E2E-S05S12-MC-B1 | Threaded Inductive Proximity Sensor | M5, 1.2 mm Sensing, PNP NO

Name: OMRON E2E-S05S12-MC-B1 | Threaded Inductive Proximity Sensor | M5, 1.2 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-S05S12-MC-B1
Availability: OutOfStock

Part Number : E2E-S05S12-MC-B1

OMRON E2E-S05S12-MC-B1: 1.2 mm sensing distance, a PNP normally open output and an M8 connector, built as an M5 threaded inductive proximity sensor. This E2E-S05S12-MC-B1 unit is powered from 10 to 30 V DC and rated IP67.

1.2 mm sensing distance, M5 thread
Output: PNP NO
10 to 30 V DC supply; connection: M8 connector
IP67 rated, minimum operating temperature -25 °C
Flush mounting (shielded), switching frequency 4 kHz, E2E series
Stainless steel housing, length 40 mm, short-circuit/overload protection; standards: CE

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Proximity Sensor, PNP Output, 10 to 30V DC Supply Voltage - E2E-S05S12-MC-B1

This proximity sensor by Omron is a barrel style sensor made of stainless steel with IP67 rating, suitable for flush mounting. It is an inductive sensor with PNP output type, featuring a high frequency of 4 kHz and short circuit protection.

Features & Benefits

• Stainless steel construction for durability
• IP67 rating for protection against dust and water
• Inductive sensor technology for reliable performance
• PNP output type for easy integration
• High frequency of 4 kHz for fast response time
• Short circuit protection for added safety
• 3-pin M8 connector for easy installation

Applications

• Automation systems
• Material handling systems
• Packaging machines

Can it be used in outdoor applications requiring water resistance?

Yes, the stainless steel construction and IP67 rating make it suitable for outdoor use.

Will it offer reliable performance in high-speed production lines?

Yes, with a high frequency of 4 kHz, it ensures accurate detection in fast-moving environments.

Is it compatible with PLC systems for easy integration?

Yes, the PNP output type allows seamless connectivity with PLCs.

Can it be used in environments with the risk of short circuits?

Yes, the sensor comes with built-in short circuit protection for added safety.

Is the installation process easy with the 3-Pin M8 connector?

Yes, the 3-Pin M8 connector simplifies the installation process, saving time and effort.

Brand	Omron
Thread Size	M5
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	1.2 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M8
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	40mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Standards Met	CE
Series	E2E
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	4kHz
Shielding	Shielded
