OMRON E2B-M30LN30-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 30 mm, PNP NO, M12 Connector

Name: OMRON E2B-M30LN30-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 30 mm, PNP NO, M12 Connector
Brand: OMRON
SKU: E2B-M30LN30-M1-B1
Availability: OutOfStock

Part Number : E2B-M30LN30-M1-B1

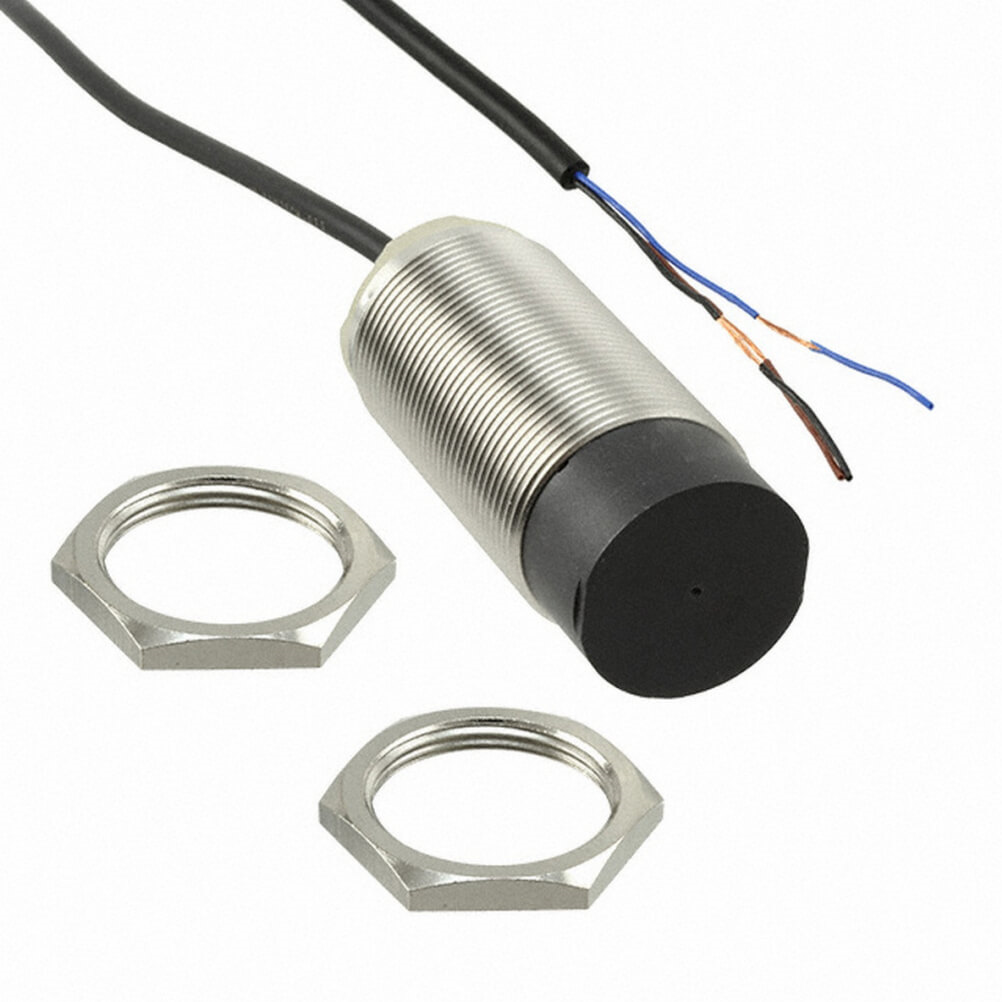

Supplied with an M12 plug-in connector, the OMRON E2B-M30LN30-M1-B1 is an inductive threaded-barrel proximity sensor that detects targets up to 30 mm away. It has an M30 threaded body and a PNP normally open (NO) output. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: non-flush, unshielded
Switching current: 200 mA
Housing length: 66 mm (short body)
Housing material: nickel-plated brass

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, PNP Output, 30mm Detection Range - E2B-M30LN30-M1-B1

This proximity sensor is designed for efficient detection in various industrial applications. It employs inductive sensing technology, effective for detecting metallic objects within a specified range. With an IP67 rating, it is suitable for harsh environments, making it a suitable choice for the automation and mechanical industries.

Features & Benefits

• Inductive technology ensures reliable detection
• Non-flush mounting allows for versatile installation
• Brass housing offers durability and resistance to corrosion
• 4-pin M12 connector simplifies connections and maintenance
• Effective sensing distance of up to 30mm
• Short circuit overload protection enhances operational safety

Applications

• Used with manufacturing machinery for object detection
• Suitable for automation and control in assembly lines
• Employed in packaging equipment for presence detection
• Utilised in conveyor systems to ensure correct alignment
• Integrated in robotics for precise positioning tasks

What type of output signal can I expect?

The output signal is of the PNP type, compatible with various control systems.

How long can the sensing distance be adjusted for specific tasks?

The sensing distance of up to 30mm is fixed, making it efficient for standard applications.

Can this sensor be used in outdoor settings?

It is not advisable for outdoor use without additional protective measures against environmental factors.

How to address potential interference from surrounding metals?

Maintain the recommended clearances during installation to reduce performance issues.

What temperature range can the sensor operate in?

It functions effectively within a temperature range of -25 to +70°C.

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	30 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	66mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2B
Short Circuit Overload Protection	Yes
Switching Current	200 mA
Reverse Polarity Protection	Yes
Maximum Operating Temperature	+70°C

Proximity sensor, LITE, inductive, nickel-brass, short body, M30, unshielded, 30 mm, DC, 3-wire, PNP-NO, M12 plug-in

OMRON E2B-M30LN30-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M30, 30 mm, PNP NO, M12 Connector

DOWNLOAD CATALOG

E2B-M30LN30-M1-B1 Inductive Proximity Sensors Brochure A700000010005933

E2B-M30LN30-M1-B1 E2B-M30LN30-M1-B1 Datasheet A700000010005940
