OMRON E2B-M18LS08-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, M12 Connector

Name: OMRON E2B-M18LS08-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, M12 Connector
Brand: OMRON
SKU: E2B-M18LS08-M1-B1
Availability: OutOfStock

Part Number : E2B-M18LS08-M1-B1

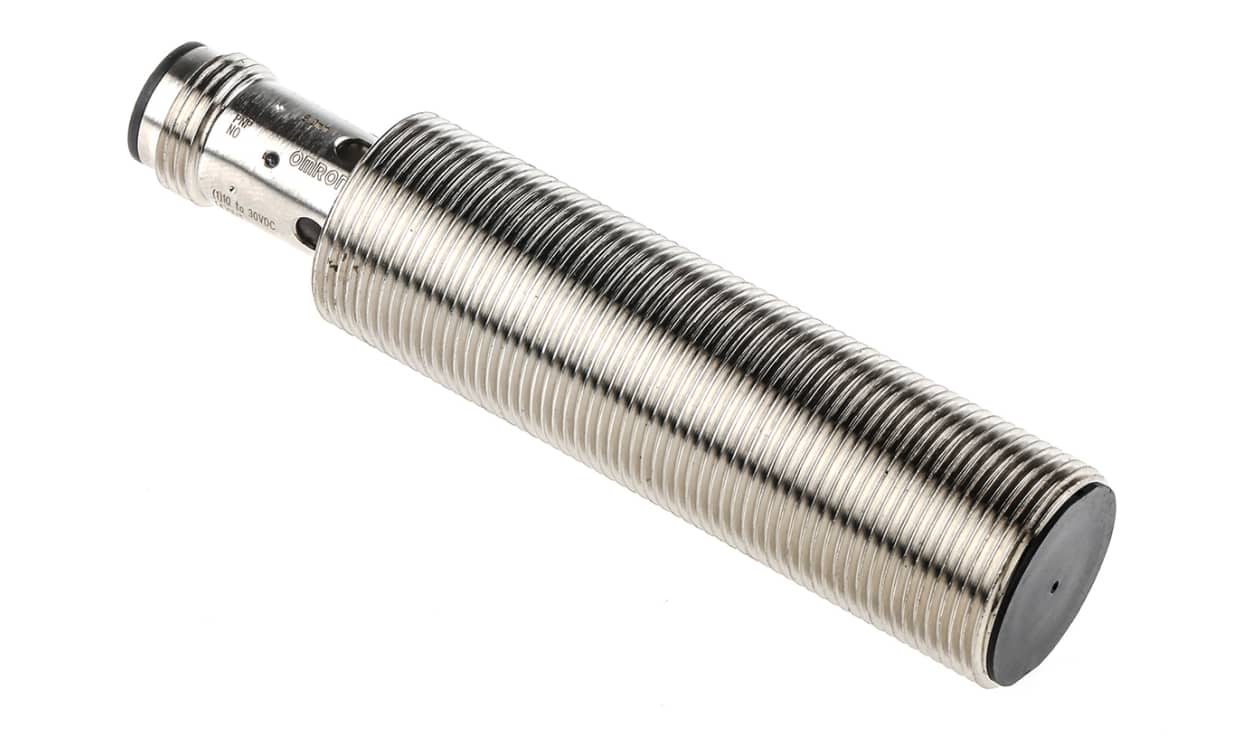

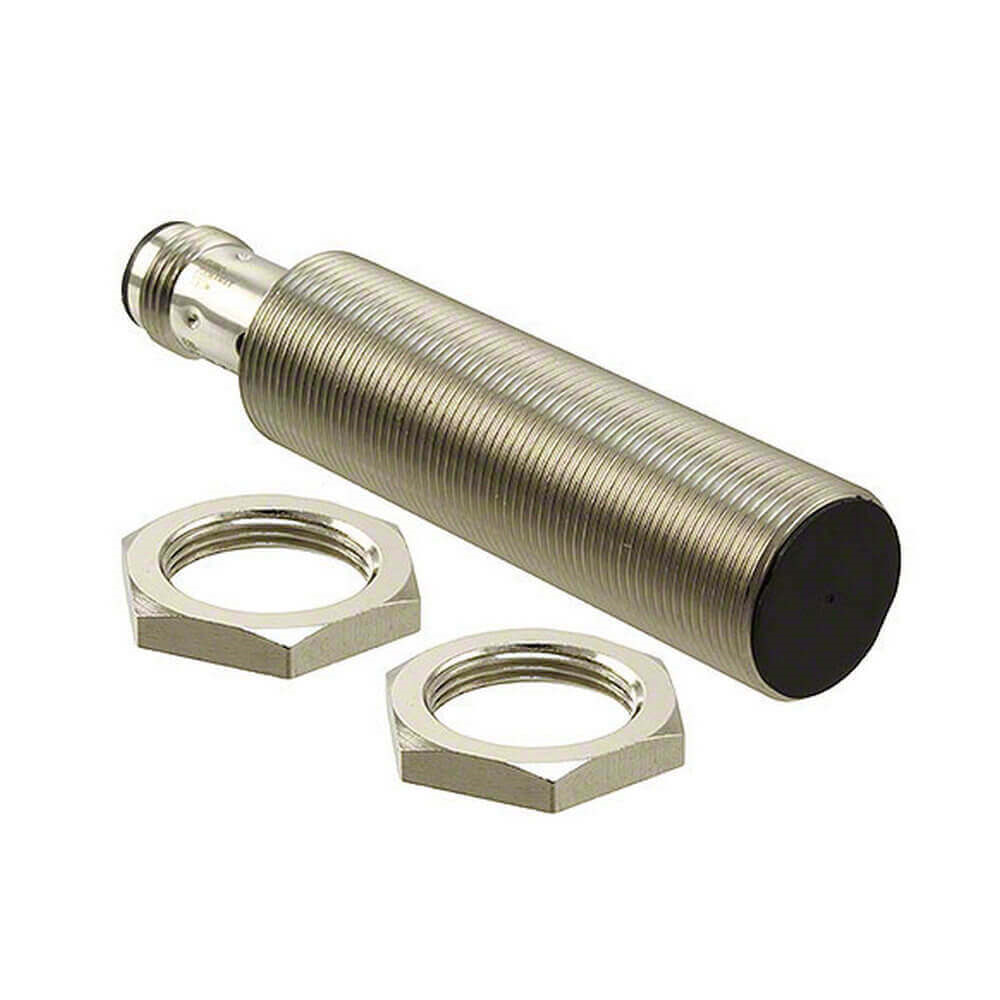

Supplied with an M12 plug-in connector, the OMRON E2B-M18LS08-M1-B1 is an inductive threaded-barrel proximity sensor that detects targets up to 8 mm away. It has an M18 threaded body and a PNP normally open (NO) output. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush, shielded
Switching frequency: 500 Hz
Housing length: 61 mm (long body)
Housing material: nickel-plated brass

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, PNP Output, 8mm Detection Range - E2B-M18LS08-M1-B1

This inductive proximity sensor is a vital component for a range of automation applications, ensuring precise object detection without physical contact. Its robust design supports flush mounting and ensures dependable performance in standard industrial environments. The sensor's compact form facilitates easy integration into various systems while maintaining operational efficiency.

Features & Benefits

• Provides an 8mm detection range for effective sensing
• IP67 rating offers protection against dust and water
• PNP output type allows for versatile connectivity
• Equipped with a 4-Pin M12 connector for straightforward installation
• Functions reliably in temperatures from -25 to +70°C
• Shielded design improves noise immunity in challenging conditions

Applications

• Employed in assembly line automation for precise positioning
• Suitable for detecting metallic objects in processing equipment
• Utilised in packaging systems for quality control
• Effective in robotics to enhance movement accuracy
• Commonly integrated into conveyor systems to oversee material flow

Can it operate in an oil mist environment?

Yes, it can function effectively in oil mist conditions while maintaining its IP67 rating.

What power supply voltage is required for proper functionality?

The sensor operates efficiently within a voltage range of 12V to 24V DC.

How does the sensor indicate its operational status?

It includes a yellow LED indicator that shows the sensor’s operational state.

Is it suitable for installation in confined spaces?

Yes, its cylindrical design allows for installation in tight spaces.

What is needed for installation?

Only a compatible 4-Pin M12 connector and appropriate wiring are necessary for installation.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	61mm
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	500Hz
Short Circuit Overload Protection	Yes
Series	E2B
Switching Frequency	500 Hz
Maximum Operating Temperature	+70°C

Proximity sensor, LITE, inductive, nickel-brass, long body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, M12 plug-in

OMRON E2B-M18LS08-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, M12 Connector

DOWNLOAD CATALOG

E2B-M18LS08-M1-B1 Brochure A700000009885692

E2B-M18LS08-M1-B1 Model E2B Instruction Sheet A700000009885720
