OMRON E2B-M12LS04-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, PNP NO, M12 Connector

Name: OMRON E2B-M12LS04-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, PNP NO, M12 Connector
Brand: OMRON
SKU: E2B-M12LS04-M1-B1
Availability: OutOfStock

Part Number : E2B-M12LS04-M1-B1

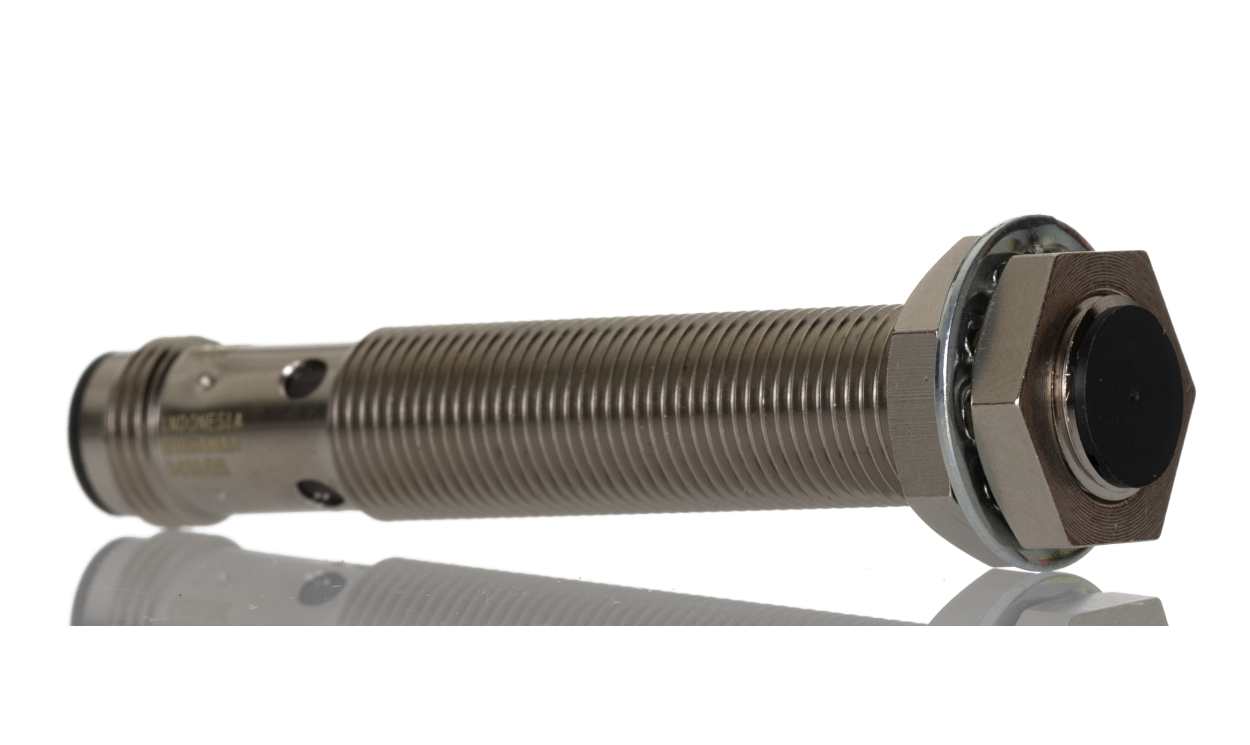

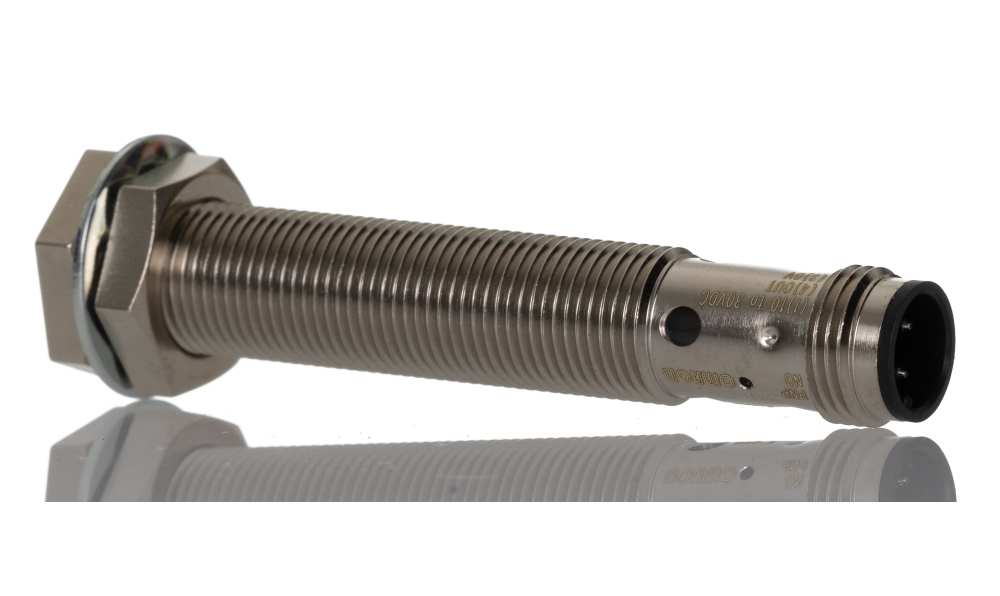

Supplied with an M12 plug-in connector, the OMRON E2B-M12LS04-M1-B1 is an inductive threaded-barrel proximity sensor that detects targets up to 4 mm away. It has an M12 threaded body and a PNP normally open (NO) output. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush, shielded
Switching frequency: 1 kHz
Switching current: 200 mA
Housing length: 74 mm (long body)

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron Proximity Sensor, Brass Housing, IP67 - E2B-M12LS04-M1-B1

This Omron proximity sensor is an inductive proximity sensor designed for a range of industrial applications. With a detection range of 4mm and an IP67 rating, this sensor ensures reliable performance in diverse environments. It is available in barrel style.

Features & Benefits

• The use of brass housing material provides both durability and additional protection
• The PNP output type is suitable for use with various industrial equipment
• The 4mm detection range provides accurate sensing capabilities for short-range applications

Applications

• Control and monitoring systems in electrical installations
• Industrial machinery and equipment for proximity sensing
• Robotics and automated assembly lines

Can it withstand high operating temperatures?

With a maximum operating temperature of +70°C, it is well-suited for industrial environments.

Will it work with different supply voltages?

The sensor’s operational range spans from 12 to 24 V DC, allowing for versatile use in different configurations.

Is it suitable for use in outdoor applications?

With an IP67 rating, this sensor provides robust protection against dust and water, making it an excellent choice for outdoor applications.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	12 → 24 V dc
Length	74mm
IP Rating	IP67
Mounting Type	Flush
Width	17mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Reverse Polarity Protection	Yes
Maximum Switching Frequency	1kHz
Switching Current	200 mA

Proximity sensor, LITE, inductive, nickel-brass, long body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, M12 plug-in

OMRON E2B-M12LS04-M1-B1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, PNP NO, M12 Connector

DOWNLOAD CATALOG

E2B-M12LS04-M1-B1 Brochure A700000009885692

E2B-M12LS04-M1-B1 Model E2B Instruction Sheet A700000009885720
