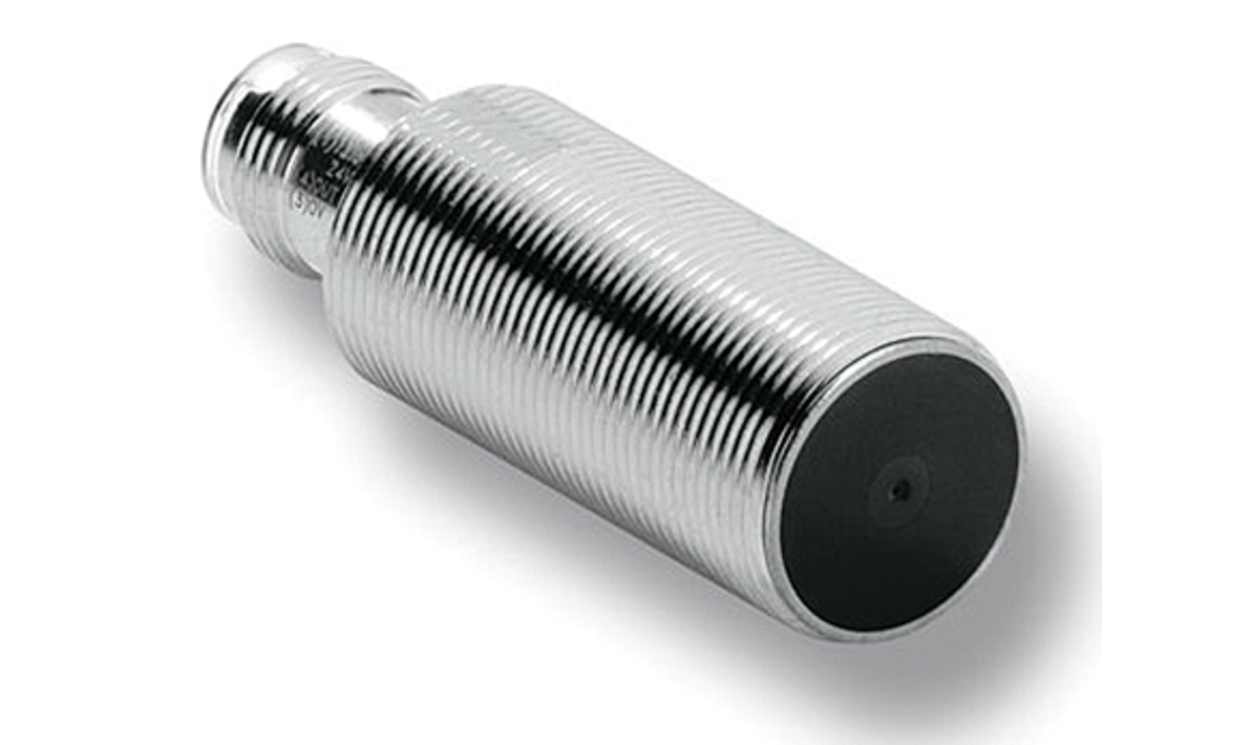

Omron E2B-M12KN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc

Name: Omron E2B-M12KN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M12KN08-M1-B2
Availability: OutOfStock

Part Number : E2B-M12KN08-M1-B2

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, 8mm Detection Range, IP67 - E2B-M12KN08-M1-B2

This proximity sensor employs inductive technology for detecting metallic objects within a set range, making it suitable for various industrial applications. Its design aids in automating processes, enhancing operational efficiency, and ensuring safety in manufacturing settings. With a durable brass housing and an IP67 rating, it operates effectively in challenging environments.

Features & Benefits

• Inductive design allows for non-contact detection
• PNP output ensures compatibility with multiple control systems
• 8mm detection range serves close proximity Applications
• Shielded construction reduces interference from external signals
• Reverse polarity protection prevents damage from incorrect wiring
• Maximum switching frequency of 800Hz facilitates quick responses

Applications

• Automation in manufacturing lines for object detection
• Product monitoring within conveyor systems
• Material presence detection in packaging processes
• Feedback on object location in robotics

What is the minimum and maximum operating temperature for this device?

The operating temperature ranges from -25 to +70°C, ensuring suitability for various environments.

How does this sensor protect against standard electrical issues?

It includes reverse polarity protection and short circuit overload protection to prevent damage.

Can this device be integrated with existing automation systems?

Yes, its PNP output allows for easy integration with most modern control systems.

What mounting options are available for installation?

This proximity sensor is designed for flush mounting in equipment and machinery.

What materials can this sensor reliably detect?

It is specifically designed to detect metallic objects within its specified range.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	31mm
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Standards Met	CE
Short Circuit Overload Protection	Yes
Depth	10.5mm
Maximum Switching Frequency	800Hz

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, unshielded, 8 mm, DC, 3-wire, PNP-NC, M12 plug-in

Omron E2B-M12KN08-M1-B2, Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, PNP NC, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-M12KN08-M1-B2 Brochure - Inductive Proximity Sensors A700000012229171

E2B-M12KN08-M1-B2 Instruction Sheet - E2B Series A700000012229927
