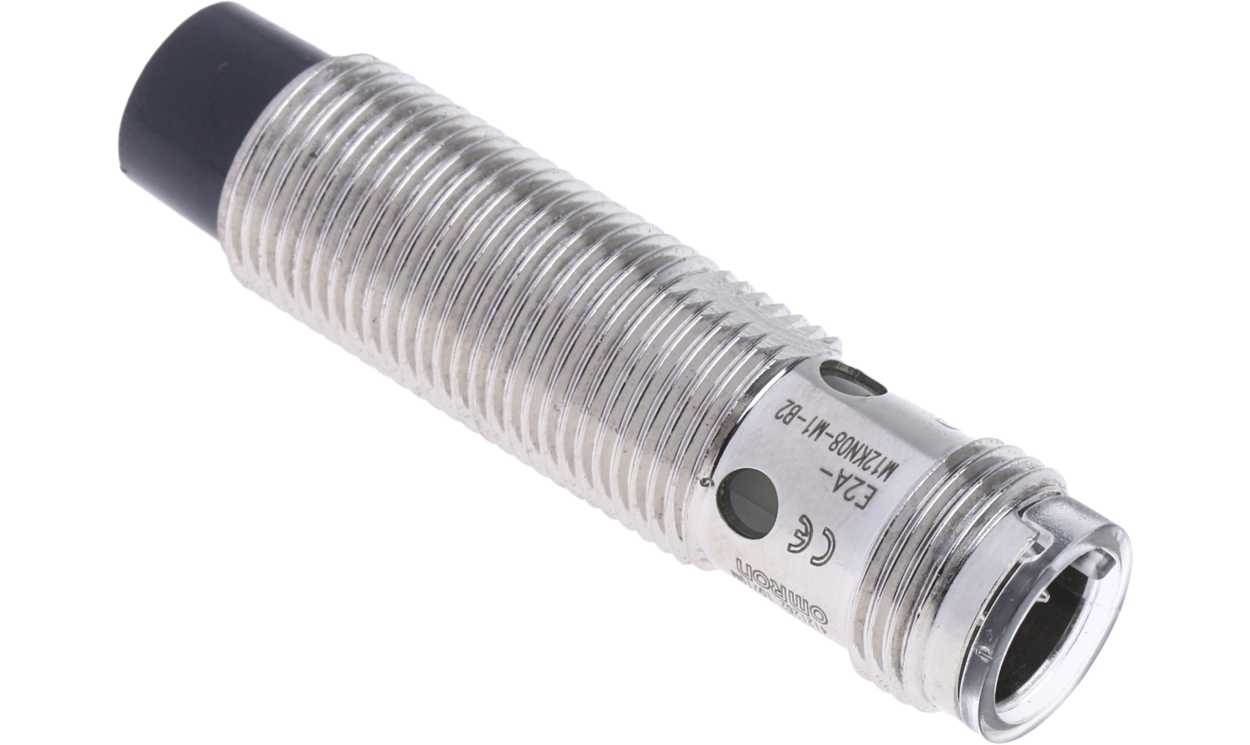

OMRON E2A-M12KN08-M1-B2 | Inductive Proximity Sensor | M12, 8 mm PNP NC, M12 Connector

Name: OMRON E2A-M12KN08-M1-B2 | Inductive Proximity Sensor | M12, 8 mm PNP NC, M12 Connector
Brand: OMRON
SKU: E2A-M12KN08-M1-B2
Availability: OutOfStock

Part Number : E2A-M12KN08-M1-B2

With an 8 mm detection range and a PNP NC output, the OMRON E2A-M12KN08-M1-B2 is an M12 inductive proximity sensor wired through an M12 connector and rated for 12 to 24 V DC.

Non-flush mounting (unshielded), brass housing
Output: PNP NC, 200 mA switching current
Supply: 12 to 24 V DC, max. 32 V
Switching frequency: 800 Hz
Protection: IP67
Minimum operating temperature: -40 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, NC Output Function, IP67 - E2A-M12KN08-M1-B2

This inductive proximity sensor is ideal for automation applications that require precise object detection. With an 8mm detection range, it operates reliably in demanding environments. The IP67 rating ensures protection against dust and water, making it suitable for industrial settings.

Features & Benefits

• Offers a larger sensing distance compared to standard sensors
• Inductive technology ensures consistent operation across various conditions
• Non-flush mount design simplifies installation in tight spaces
• PNP output configuration allows for easy integration with control systems
• Operating temperature range of -40°C to +70°C suits extreme environments
• Unshielded design enhances sensitivity to nearby targets

Applications

• Utilised in assembly line machinery for object detection
• Deployed in conveyor systems to monitor product positioning
• Suitable for packaging automation that requires accurate sensing
• Used in robotic systems for precise movement control
• Appropriate for industrial requiring environmental resilience

What type of objects can be detected?

It effectively detects ferrous metal objects, making it suitable for various industrial applications.

How is it powered?

The sensor operates within a supply voltage range of 12 to 24V DC, ensuring compatibility with most industrial power sources.

What should be done if the sensor fails to detect objects?

Verify the wiring connections and ensure the sensor is correctly aligned with the target object for optimal performance.

Can this be integrated with existing automation systems?

Yes, its PNP output configuration allows for straightforward integration with standard control systems commonly used in automation.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	34mm
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Shielding	Unshielded
Maximum Switching Frequency	800Hz
Switching Current	200 mA
Depth	9.4mm
Switching Frequency	800 Hz

OMRON E2A-M12KN08-M1-B2 | Inductive Proximity Sensor | M12, 8 mm PNP NC, M12 Connector

DOWNLOAD CATALOG

E2A-M12KN08-M1-B2 Brochure - Inductive Proximity Sensors A700000012101198
