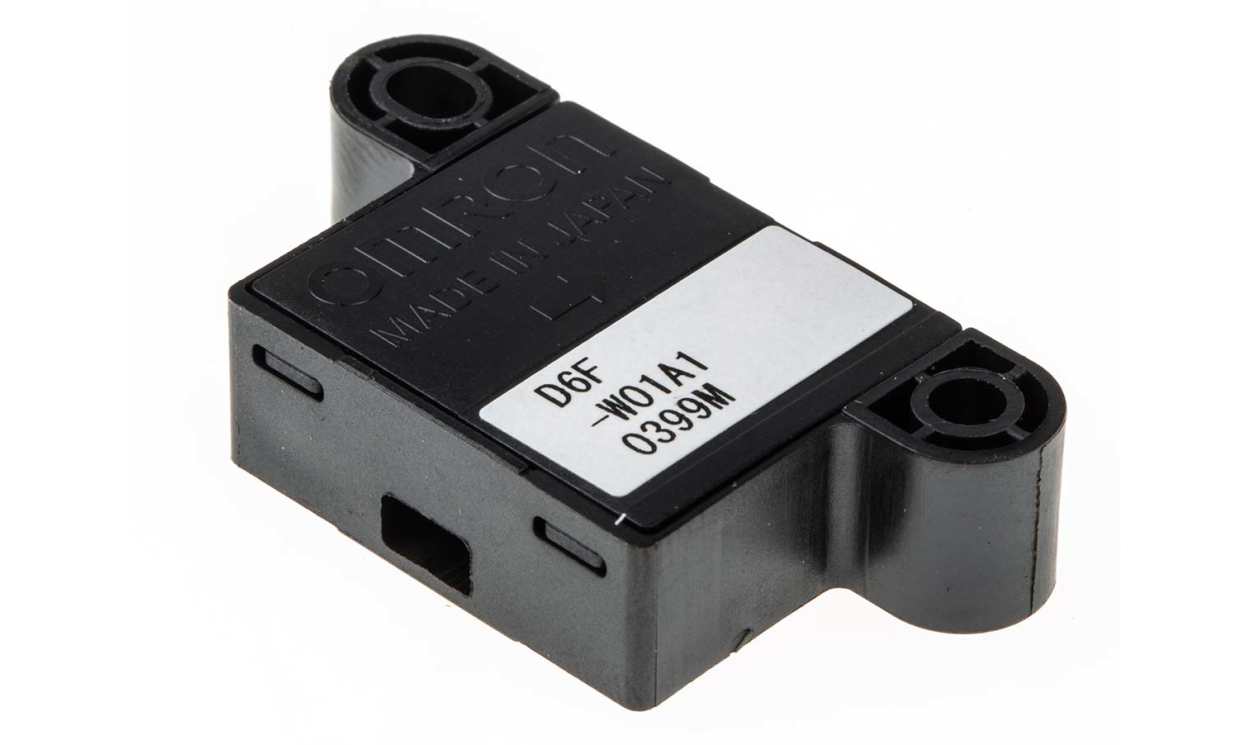

Name: Omron D6F-W01A1, Compact Mount Airflow Sensor, Analogue Output, 10.8 → 26.4 V dc
Brand: OMRON
SKU: D6F-W01A1
Availability: OutOfStock

Omron D6F-W01A1, Compact Mount Airflow Sensor, Analogue Output, 10.8 → 26.4 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D6F-W01A1, Compact Mount Airflow Sensor, Analogue Output, 10.8 → 26.4 V dc

Part Number : D6F-W01A1

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Airflow Sensor

The Omron compact, intelligent airflow sensor features MEMS technology for precision mass airflow measurement up to 1m/s. The housing design is based on a centrifugal principle to segregate particulates from the air. It has a power supply ranging between 10.8VDC and 26.4VDC. The sensor has a 3-pin electrical connection.

Features and Benefits

Current consumption is 15mA (maximum)
Output voltage ranges between 1VDC and 5VDC
Supplied as standard, optimally adjusted at the factory so easy and rapid user application is guaranteed
The efficiency of the dust segregation system separates up to 99.5% of dry particulates
Operating temperature ranges between -10°C and 60°C
Body material PPS

Applications

Home appliances- Gas meter, gas leak detector, building ventilation, boiler/combustion control, smoke detector, fan assisted heater, etc.
Medical: chest drainage, ventilator, anaesthetic device, CPAP, oxygen concentrator, ozone generator, laparoscopic surgery, gas chromatograph, capnograph, etc.
Industrial: Process control, environmental monitor/gas sniffer, pressurised cable monitoring, ventilator control, clogged filter detection, gas welding machine, pick and place, fuel cell, scientific devices, gas flow controller, fans, etc.

Certifications

IEC IP40 rated

Brand	Omron
Control Output	Analogue
Mounting Style	Compact
Supply Voltage	10.8 → 26.4 V dc
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
