Omron D6F-50A6-000, Panel Mount Flow Controller, 50 L/min, Analogue Output, 10.8 → 26.4 V dc, 1/4 in Pipe

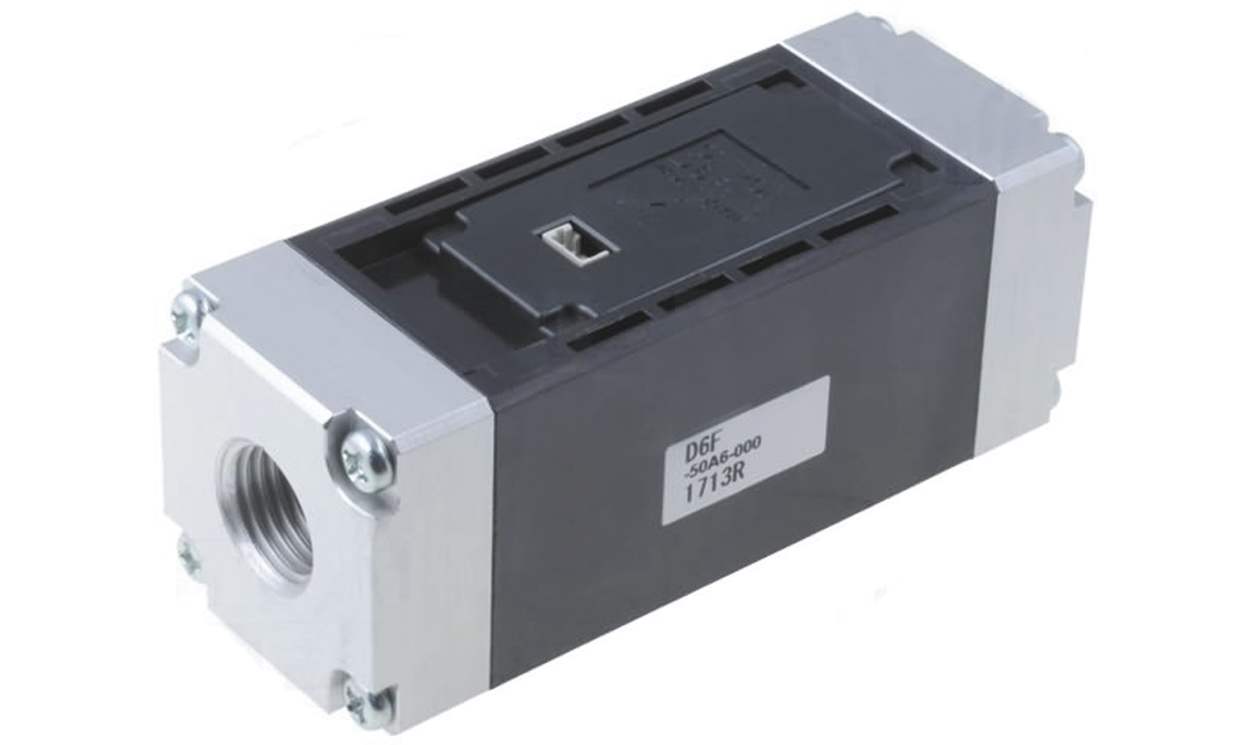

Name: Omron D6F-50A6-000, Panel Mount Flow Controller, 50 L/min, Analogue Output, 10.8 → 26.4 V dc, 1/4 in Pipe
Brand: OMRON
SKU: D6F-50A6-000
Availability: OutOfStock

Part Number : D6F-50A6-000

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Airflow Sensor

The Omron compact, intelligent airflow sensor features MEMS technology for precision mass airflow measurement up to 50L/min. It has a power supply ranging between 10.8VDC and 26.4VDC. This sensor has a 3-pin electrical connection.

Features and Benefits

Case material - Thermoplastic resin
Stable output across full scale
Output voltage ranges between 1VDC and 5VDC
Straight RC1/4 (1/4” BSPT) threaded pipe
Compact size- 78mm length x 30mm width x 30mm height
Low power consumption
Current consumption is 15mA (maximum)
Operating temperature ranges between -10°C and 60°C
Control output Analogue

Applications

Ideal for use with industrial processes and mass flow controllers
Industrial processes
Medical respirators and ventilators
MiG and TiG welding systems
Anaesthesia delivery
Mass flow controllers
Scientific/test equipment
Fuel cell controls

Certifications

IEC IP40 rated

Brand	Omron
Maximum Flow Rate	50 L/min
Control Output	Analogue
Mounting Style	Panel Mount
Supply Voltage	10.8 → 26.4 V dc
Pipe Diameter Range	1/4 in
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
