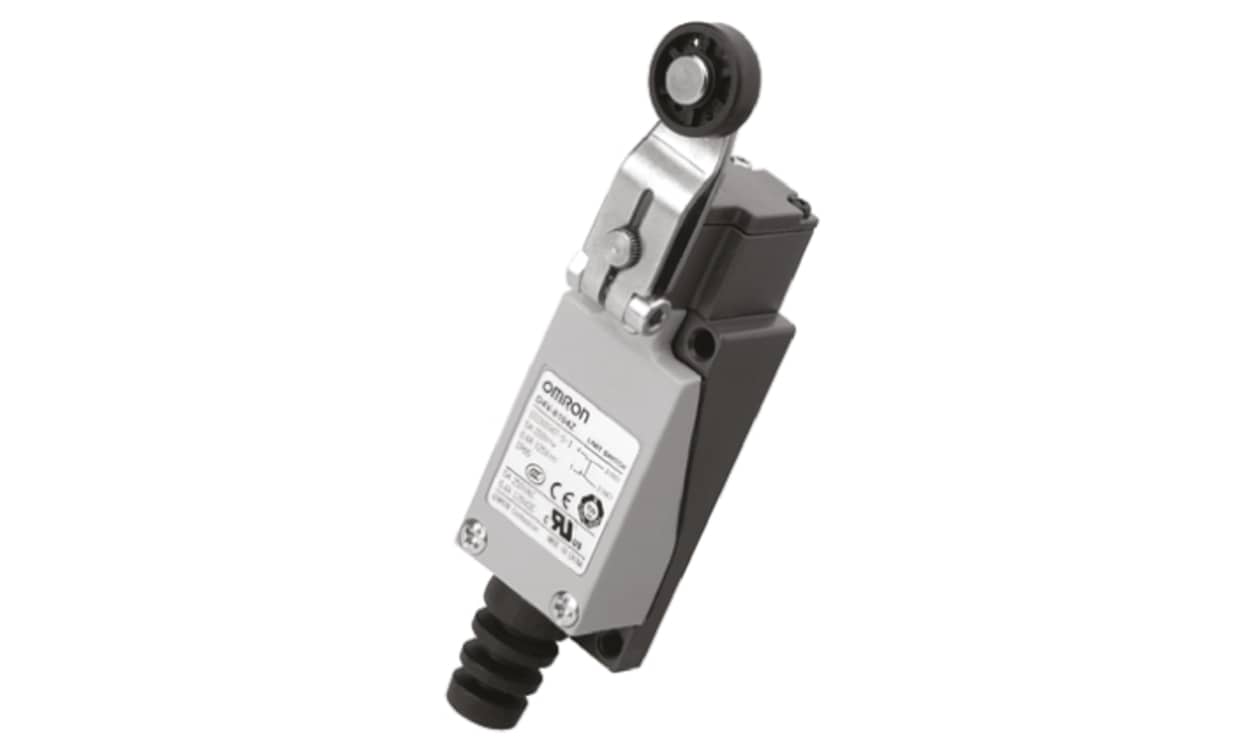

OMRON D4V-8108Z BY OMZ | Roller Lever Limit Switch | NO/NC, IP65, 250 V AC, 5 A
Built to IP65, the OMRON D4V-8108Z BY OMZ roller lever limit switch offers NO/NC contacts and a rating of 5 A AC / 400 mA DC max, 250 V AC max. Its listing adds screw terminals and an operating range of -20 to +60 °C.
- NO/NC contact configuration; DPST pole and throw
- Maximum current: 5 A AC and 400 mA DC; maximum voltage: 250 V AC / 250 V DC
- IP65 enclosure rating; screw terminals
- Dimensions: 82.3 mm × 27.8 mm × 25.4 mm (L × W × D)
- Operating temperature: -20 to +60 °C
- Mechanical life: 10,000,000 operations
- Detailed Description
- Specifications
- Downloads
D4V Small Limit Switch
RoHS complaint.
IP65
| Brand | Omron |
| Actuator Type | Roller Lever |
| IP Rating | IP65 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 5 A, dc 400mA |
| Maximum AC Voltage | 250V |
| Length | 82.3 mm (3.24 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Width | 27.8 mm (1.09 in) |
| Depth | 25.4 mm (1.00 in) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
