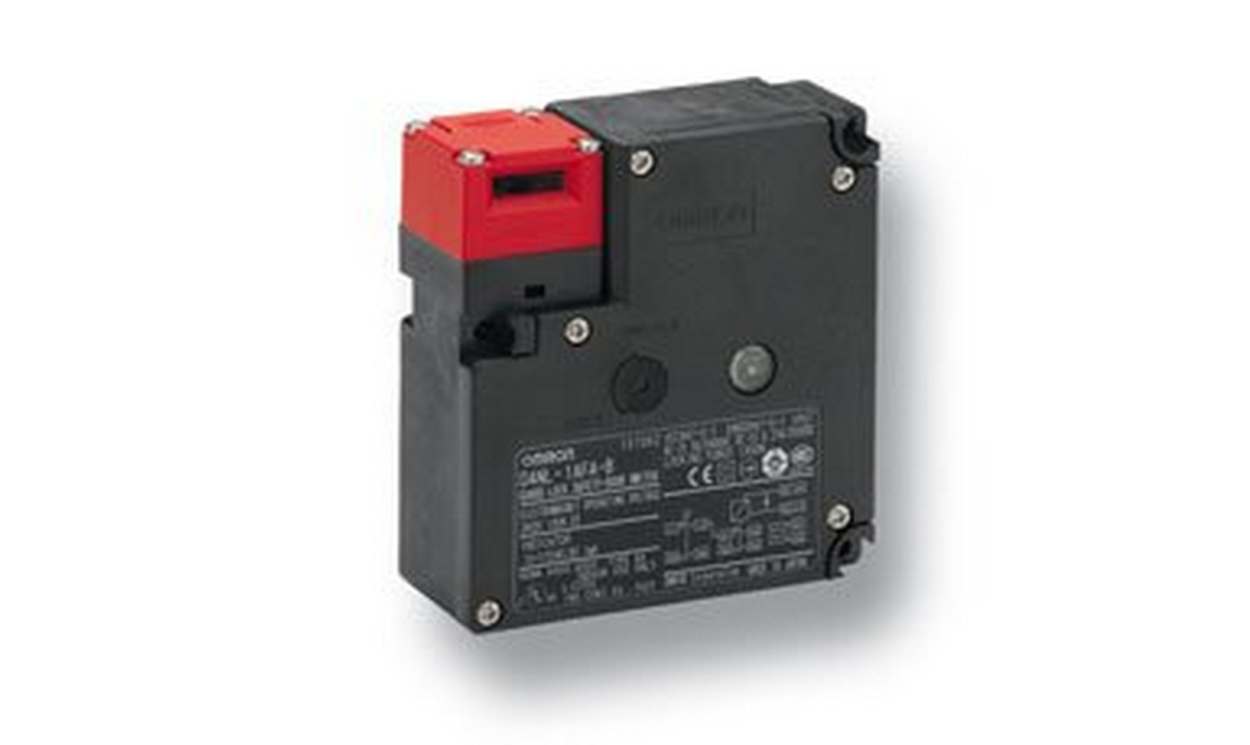

Omron D4NL-1DFA-B, D4NL Solenoid Interlock Switch, 2NC/2NC, Plastic, Mechanical Lock

Name: Omron D4NL-1DFA-B, D4NL Solenoid Interlock Switch, 2NC/2NC, Plastic, Mechanical Lock
Brand: OMRON
SKU: D4NL-1DFA-B
Availability: OutOfStock

Part Number : D4NL-1DFA-B

Safety door-lock switch, mechanical lock, 24 VDC, 2NC + 2NC, 10 A, PG 13.5 entry

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron D4NL Series Solenoid Interlock Switch Solenoid Interlock Switch, PG13.5 Connection Type - D4NL-1DFA-B

This solenoid interlock switch enhances safety in industrial settings by preventing unintended machine operation when doors are ajar. It features a robust mechanical locking mechanism, ensuring that systems remain secure during operation. Focused on user safety, this switch is vital in the automation, electronics, and mechanical sectors.

Features & Benefits

• Mechanical lock increases safety during operational tasks
• PG13.5 connection type facilitates easy integration
• Durable plastic housing provides robust protection against wear
• High holding force of 1300N supports various workflows
• IP67 rated for resistance to dust and water ingress

Applications

• Safety interlocks in machinery
• Automated gates and doors for added security
• Critical machinery to enhance workplace safety
• Environments requiring reliable machine lockdown

How should it be installed for optimal performance?

Ensure proper alignment between the key and the switch during installation for effective locking.

Can it be integrated with other Omron products?

Yes, it is compatible with various Omron safety products, enhancing overall safety solutions.

How does the connection type affect installation?

The PG13.5 connection type allows straightforward wiring, providing flexibility for various installation setups.

What is the maximum load it can support?

The switch supports a holding force of 1300N, suitable for most industrial loads.

Brand	Omron
Normal State Configuration	2NC/2NC
Lock Type	Mechanical Lock
Maximum DC Voltage	24V
Connection Type	PG13.5
Housing Material	Plastic
IP Rating	IP67
Dimensions	88.5 x 35.5 x 29mm
Series	D4NL
Minimum Operating Temperature	-10°C
Standards Met	CE
Maximum Current	10A
Maximum Operating Temperature	+55°C
Depth	35.5mm
Width	29mm
Length	88.5mm

Safety door-lock switch, mechanical lock, 24 VDC, 2NC + 2NC, 10 A, PG 13.5 entry

Omron D4NL-1DFA-B, D4NL Solenoid Interlock Switch, 2NC/2NC, Plastic, Mechanical Lock

DOWNLOAD CATALOG

D4NL-1DFA-B Instruction Sheet - D4NL-1DFA-B A700000012099690
